Battery Spot Welding Machine
Model Number:
TMAX-PS250Input Power:
15KWDimension(L*W*H):
750(L)*650(W)*550(H)mmNet Weight:
30kgCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
DC Spot Welding Machine For Li-ion Battery ResearchNext:
Battery Spot Welder For Ni Tab Welding

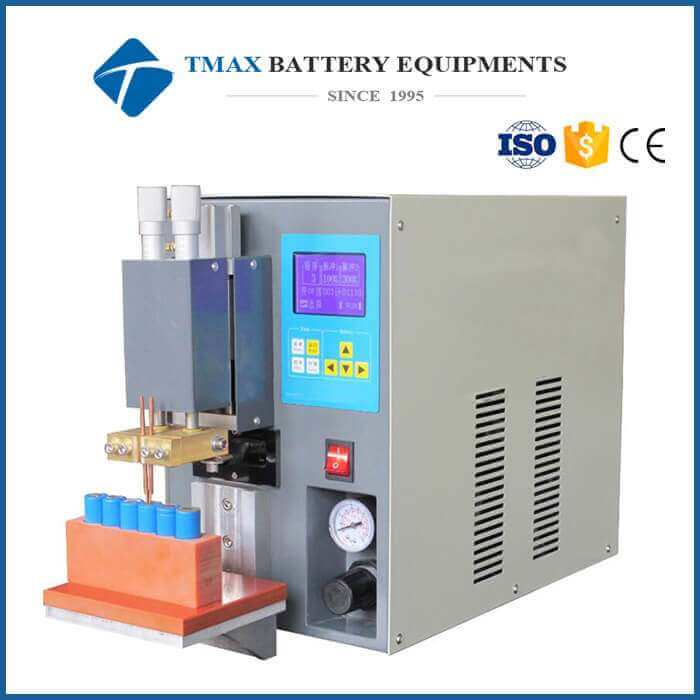

Battery Spot Welding Machine
This
TMAX-PS250 Spot welding machine mainly used for 18650 battery pack tab welding,
it can weld Nickel tab thickness from 0.05-0.25mm. You can also choose our
other model according to your tab Thickness.
Dual pulse
welding, the first pulse is used to the workpiece surface coating and oxide
removal, and make the contact place in welding electrode produce slight
deformation, improve the effective contact area, the second pulse is used to
ontology metal welding, can effectively promote the quality of welding and
reducing welding spatter.
Control model:
1.CPU control, precision pulse energy Adjustable(0-99.9%), preloading time and the holding time Adjustable(0-2.55s)
2.Two different ways of welding, (1) ordinary welding; (2) continuous welding.
3.The built-in welding counter, all solder joints can be calculated
4.Data storage block using EEPROM, no battery life problem, every time you boot, go back to Last using the welding procedure.
Multiple fault protection
High power circuit and control circuit of welding machine, is equipped with two sets of different kinds of protection circuit, in order to prevent the equipment from overheating, outside pressure and power fluctuations butt welding machine interference, in order to protect the welder in harsh environment. For some common fault prompt functions, welding machine overheating and damage, will automatically alarm, and at the same time to cut off the power supply.
Precision welding head design
1.Adopt cylinder combined with spring buffer, make the two welding needle can adjust pressure when welding, because of the spring buffer action, the cylinder does not directly effect on the solder joints, to effectively protect welding plane.
2.Inside of machine head adopts photoelectric pressure switch, only if the two welding needle discharge welding pressure to achieve the set pressure, to protect the reliability of the welding, and double needle pressure can be adjusted.
Unique structure
1.The workbench stepless lift, convenient to precision adjust the position
2.Unibody design, pneumatic operation, easy operating
SPECIFICATIONS:
Model |
Battery Spot Welding Machine TMAX-PS250 |
Power |
15KVA |
secondary
side of welding current |
3000A |
Secondary
no-load voltage |
5.5V |
Input
voltage |
110V or 220V |
Input
frequency |
50Hz |
Working
pressure |
0.5-0.8Mpa |
Welding
pulse |
Single
pulse, double pulse, multiple pulse programmable |
Welding
control model |
Foot
switch control |
Weight |
30KG |
Sizes(L*W*H) |
750(L)*650(W)*550(H)mm |
