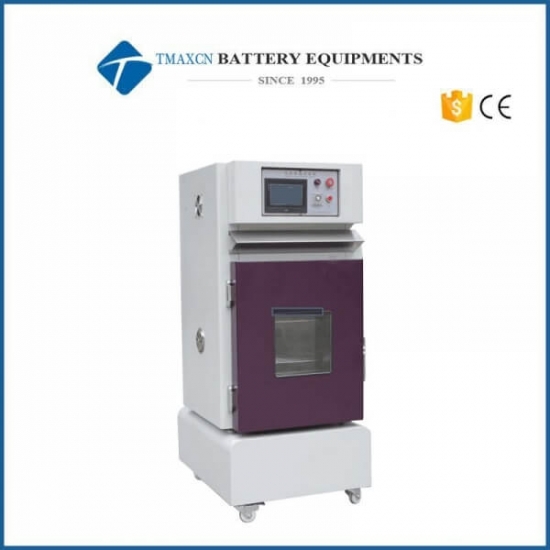

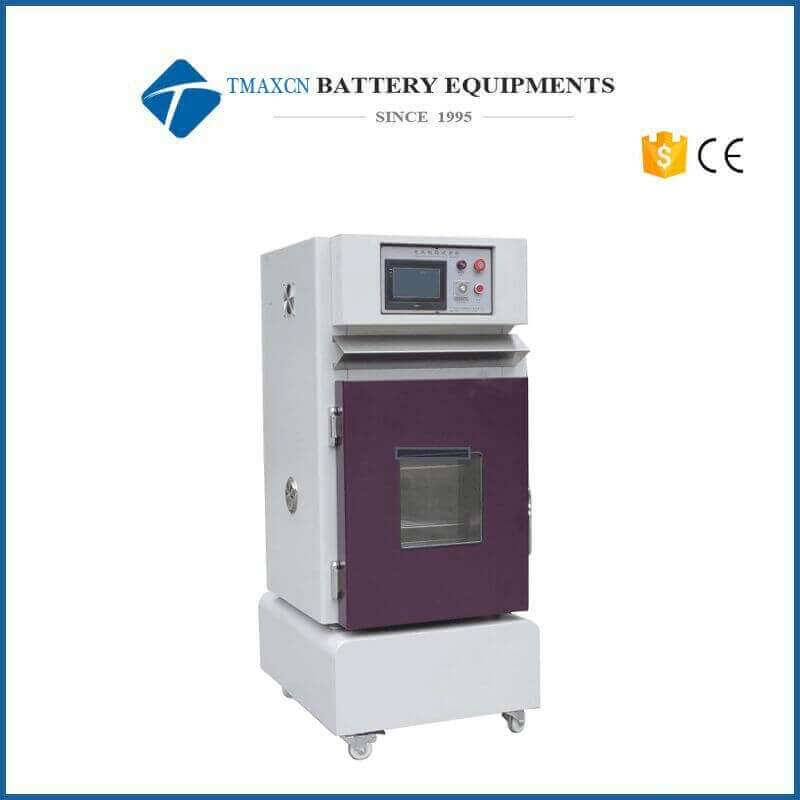

Battery Short Circuit Test Machine
Model Number:
TMAX-6055-NTInput Power:
220V 50Hz-60HzCompliance:
CE CertifiedWarranty:
two years limited with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Pouch Cell Vacuum Heating Final Sealing MachineNext:
1-10L Planetary Vacuum Mixer Machine With Vacuum Pump And Water Chiller
Battery Short Circuit Test Machine
description:
1 . The remote controlled high current short circuit tester machine is designed to meet the various battery short-circuit test requirements. The short circuit test machine must meet the internal resistance range according to the standard requirements. ≤ 100mΩ to obtain the maximum short-circuit current required by the test.
2 Control mode: PLC control, use Schneider AC contactor as switch component, set test conditions on PLC interface, contactor suck and send strong short-circuit current to make the whole circuit short, reach the test required current, The loop resistanceintheprocessoftheequipment(iecontactorresistance+connectionterminal+batteryfixturetotalresistanceof80± 20mΩ). The maximum short-circuit current from the contactor is 1000A. The maximum short-circuit current that the test circuit can withstand is 1000A. The battery surface temperature, voltage change data, and current change data during the test are detected by the acquisition element and fed back to the PLC main controlprogram.
Criteria:
GB 31241-2014 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products" GB / T 18287 -2013 "Cellular phone lithium-ion battery general specification"
GB / T 8897.4-2008 "the original battery Part 4 lithium battery safety requirements"
YD / T 2344.1-2011 "Lithium iron phosphate battery for communication Part 1: Integrated battery" GB / T 21966-2008 "Lithium batteries and batteries in the transport of security requirements"
MT / T 1051-2007 "Lithium-ion battery for miner's lamp"
YD 1268-2003 "Safety requirements and test methods for lithium batteries and chargers for mobile communication handsets" GB / T 19521.11-2005 "lithium battery dangerous goods dangerous characteristics of the safety test"
YDB 032-2009 "Lithium-ion battery pack for backup" UL 1642 "lithium battery standard"
UL 2054 "Household and Commercial Battery Pack"
UN38.3 "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria Part III" MH / T 1052-2013 "Air Transport Lithium Battery Test Specification"
IEC62133-2012 "Safety requirements for batteries and accumulators containing alkaline or non-acidic electrolytes" IEC 62281: 2004 "Safety Requirements for Lithium Batteries and Batteries in Transport"
IEC 60086: 2007 "Original battery Part 4 Safety requirements for lithium batteries"
Feature:
Control system |
interface. 2. PID temperature control, automatic constant temperature and high
temperature compensation. voltage. controlled. |
High
current contactor |
1. The rated working current is 1000A DC, equipped with a series magnetic
blowervertical partition clay
extinguishing arc extinguishingsystem. 2. The electromagnetic system and the main contact arc extinguishing
system are respectively fixed on the installation base frame, adopting a
corner-turningbeat-type electromagnetic system and a double-winding attraction coil to install
a pressure ribbed |
|
device on the rotating edges and corners; 3. The contactor is made of copper. low resistance and fast response |
|
remote
control |
control; 2. Reliable, stable, self-locking and interlocking function, strong
anti-interference ability, long
servicelife |
|
Voltage
acquisition |
Measuring voltage: 0-100V, guarantee test accuracy Display accuracy:
F.S ±0.2% rdg ±1digit Action method: 2 integral methods Acquisition frequency: 2 times / second Number of channels: 2 channels |
|
Current acquisition |
Measuring current: 0-1000A Display accuracy: F.S ±0.2% rdg ±1digit Action method: 2 integral
methods Acquisition frequency: 2 times / second Number of channels: 2
channels |
|
Temperature
acquisition |
Measuring temperature: -20-600°C Display accuracy: 0.5°C Acquisition frequency: 1 time/second Number of channels: 4 channels |
|
Equipment
material |
Inner box
1.5mm SUS#201 stainless steel, Outer box: 1.5mm cold-rolled steel plate baking treatment |
|
Ventilation function |
There is an air inlet on the left side of the equipment and a smoke
outlet on the top. The exhaust gas produced during the test can be discharged to the outdoor
through the top blower and reserved exhaustduct. |
|
Explosion-proof function |
glass. 2. Test box structure is divided
into inner sandwich. 3. The test box door is made of stainless steel high-strength hinge, safe and reliable. 4.Pressure relief device: there is a pressure relief and
explosion-proof window at the back of the device, with a diameter of100mm. |

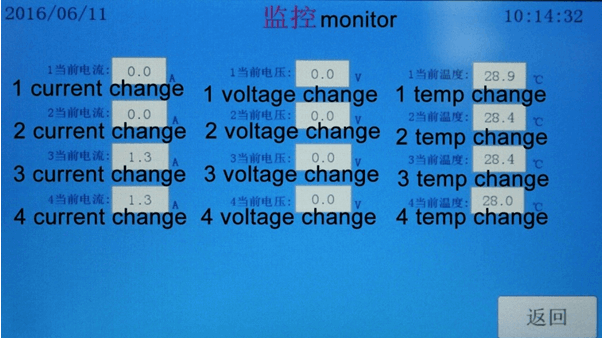

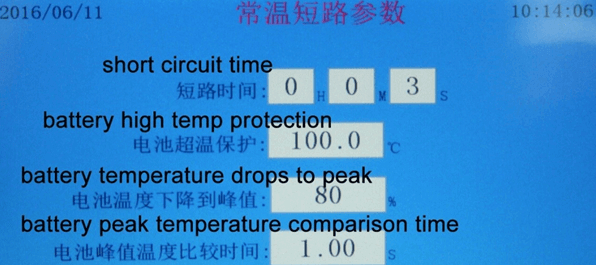

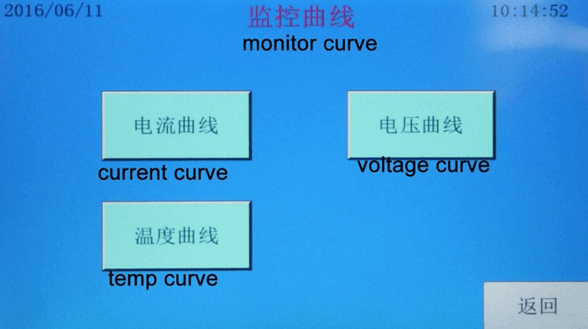

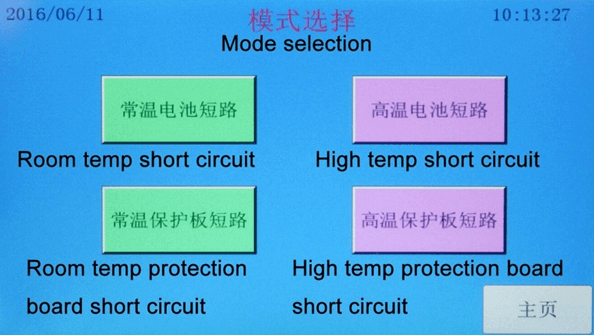

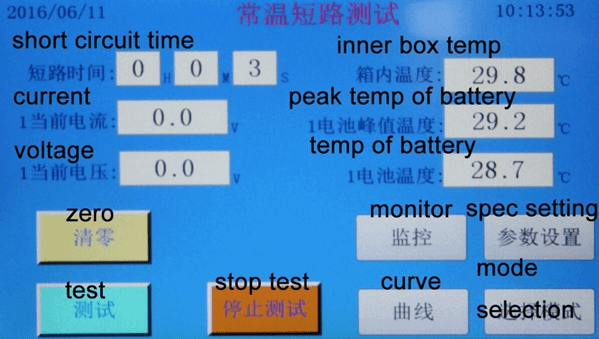

Test mode interface |
|
|
|
|
|
|
|
|
|
|
Specification:
Working voltage |
|
Impact
voltage |
AC 1kv/1.2-50μs <peak value> 1min |
Operation
characteristics |
≯66%Us Cold state releasing voltage ≯30%Us,≮5%Us |
Short
circuit mode |
Pneumatic suction |
Maximum measurable battery voltage |
100V |
HVDC
response time |
≤5μs |
Max.
circuit current |
1000A |
device |
80±20mΩ |
Remote control distance |
7 meter |
Test temperature range |
RT+10~100℃ |
Current, voltage, temperature
acquisition channels |
Total 8 channels |
Actuation time |
≯30ms |
Mechanical life |
300,000 times |
Temperature control accuracy |
0.1℃ |
Temperature uniformity |
±2℃ |
Temperature fluctuation |
±0.5℃ |
Interior test chamber size |
400*400*400mm |
External test chamber size |
960*860*1700mm |
Working environment |
Temperature: -10℃~100℃ humidity: 10~90% |
Supply power |
AC220V , 50HZ |
Equipment power |
2.5KW |
