Copper Metel Foam

Battery Material Cu Foam Copper Metal Foam Shape can be customized

  • Model Number:

    TMAX-Foam

  • Compliance:

    CE Certified

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    In Stock
Product Details

Battery Material Cu Foam
Copper Metal Foam Shape can be customized




Quantity Discount is Available: ＞5pcs, 15% OFF

Quantity Discount is Available: ＞10pcs, 25% OFF and Free Shipping

For more product information and ordering detail, please contact: David@tmaxcn.com


Introduction

Apart from Aluminum, Copper Foam is the most widely used material for making heat sinks, because properties of copper make it suitable for the purpose.Micro-porous copper foam is like an open cell structure, with an extraordinarily large number of interconnected pores distributed uniformly throughout the base copper material.


Advantage:

1.  Copper foam has great function of conducting heat and electricity, which can be used as the electrode substrate of lithium ion battery or fuel cell or Nickel zinc battery and electric double layer capacitor electrode material.

2. The copper foam can be also used as Heat sink materials, heat absorption materials, chemical catalyst carrier, electromagnetic shielding materials, filtration materials, damping materials, battery electrode materials, deadening, high-grade decorative materials.


Specifications

Type

Open cell

Purity

> 99%

Form

Sheet or Roll, depending on size & thickness

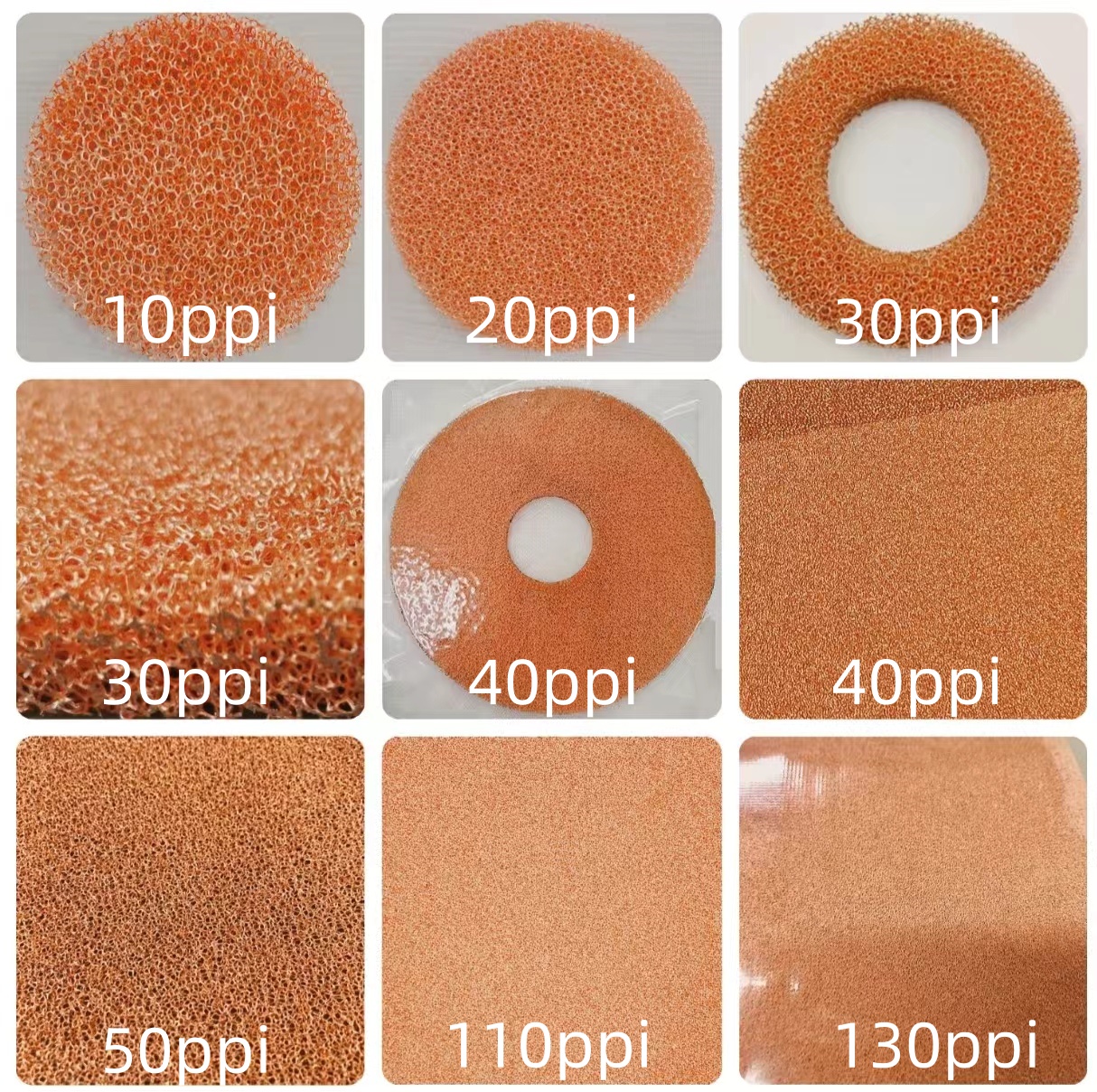

Cell Size (PPI)

10-150PPI, as per request

Thickness

Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request

Size & Shape

Standard: 500*500mm/ 200*300mm; can be made in different shape as per request

Porosity

95%-98%

Open Cell Rate

≥98 %

Volume Density

>0.1g/cm3, as per request

Surface Density

200-2500 g/m ^2, as per request

Thermal Conductivity (Theoretical)

>6W/M.K

Mechanical Strength (Theoretical)

≥2.5MPa

Tensile Strength (Theoretical)

5-18MPa

c

Dimension  ( Thickness* Length*Width )

0.08mm*200mm*300mm

0.1mm*200mm*300mm

0.3mm*200mm*300mm

0.5mm*200mm*300mm

1.0mm*200mm*300mm

2.0mm*200mm*300mm

3.0mm*200mm*300mm

5.0mm*200mm*300mm

6.0mm*200mm*300mm

8.0mm*200mm*300mm

10mm*200mm*300mm

20mm*200mm*300mm

23mm*200mm*300mm

25mm*200mm*300mm

The size can be customized



To customize various metal foams, please click the picture below for details：



Copper Foam



Nickel Foam



Ti Foam



Aluminum Foam


Iron Nickel Foam

Carbon Foam


Silver Foam

Stainless Steel Foam

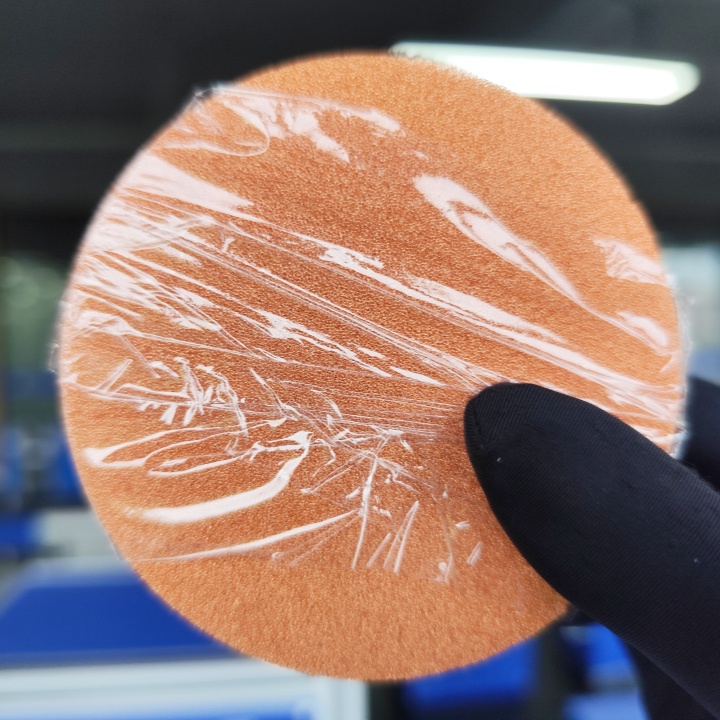

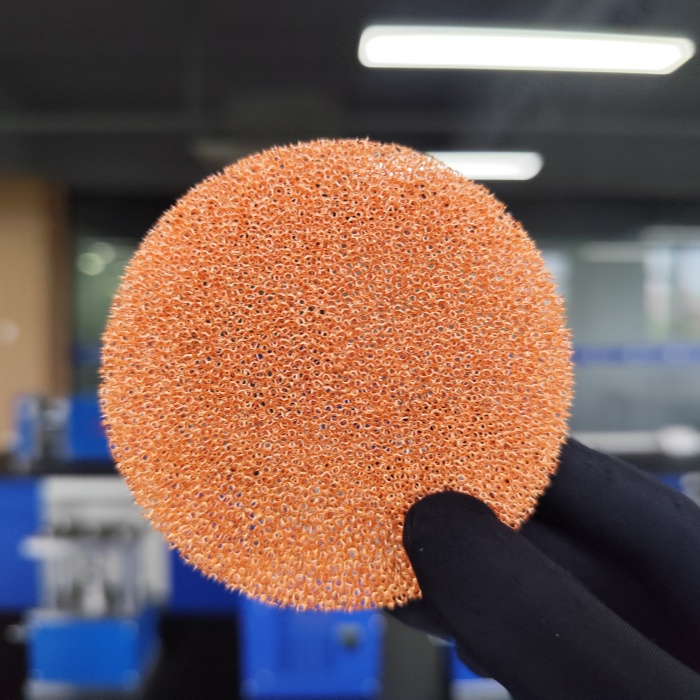

copper foam
