Optional Auxiliary Functions

Voltage acquisition system, video monitoring system, fire extinguisher system, safety explosion-proof system, smoke filtration system

Test Chamber Size

·  200 × 200 × 200 mm

·  300 × 300 × 300 mm (customizable as per requirements)

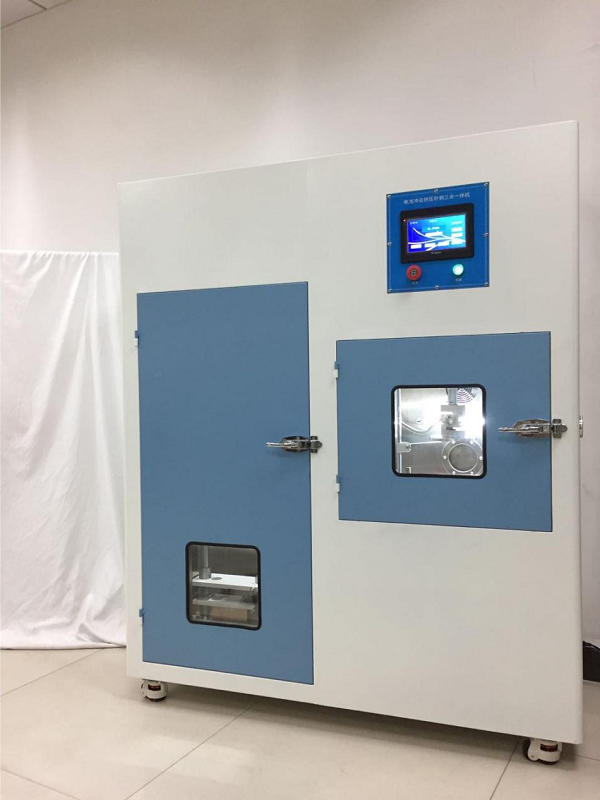

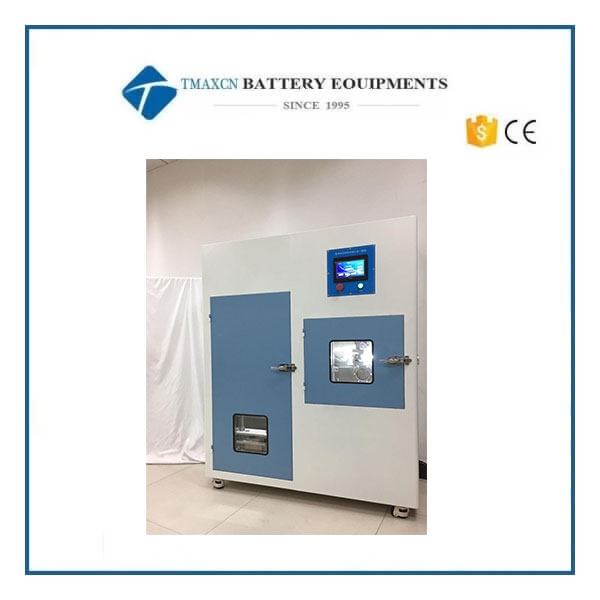

External Dimensions

1500 × 750 × 2050 mm (L × W × H)

Control Box Dimensions

500 × 500 × 1200 mm (L × W × H)

Compression/Penetration Parameters

Speed

0–80 mm/min (adjustable), customizable up to 200 mm/min

Compression/Penetration Stroke

0–300 mm

Test Force

Approximately 13 kN, with immediate pressure release upon reaching the maximum value

Hold Time

0–99 hours, 99 minutes, 99 seconds

Drive Method

Hydraulic drive

High-Temperature Steel Needle

Diameter φ3–φ8 mm

Penetration Speed Accuracy

±0.1 mm/s

Impact Parameters

Steel Rod Diameter

φ15.8 mm

Falling Ball Weight

9.1 kg or 10 kg

Impact Height

610 mm or 1000 mm

Test Conditions

The impact object is raised to a specific height and released to free-fall in a vertical direction without tilting or wobbling.
