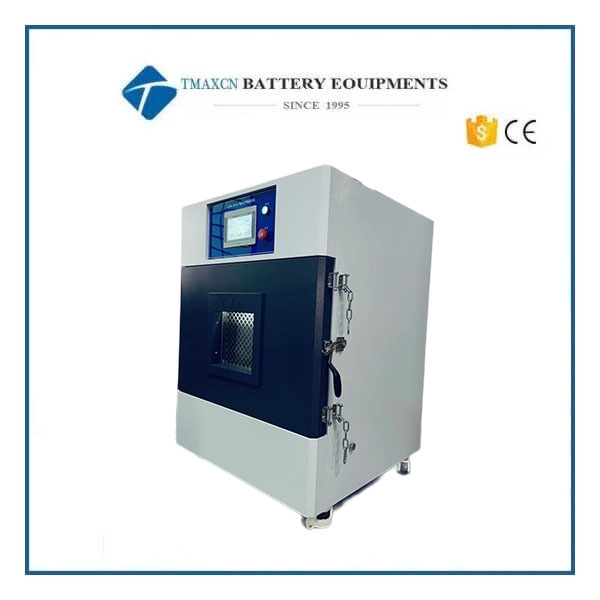

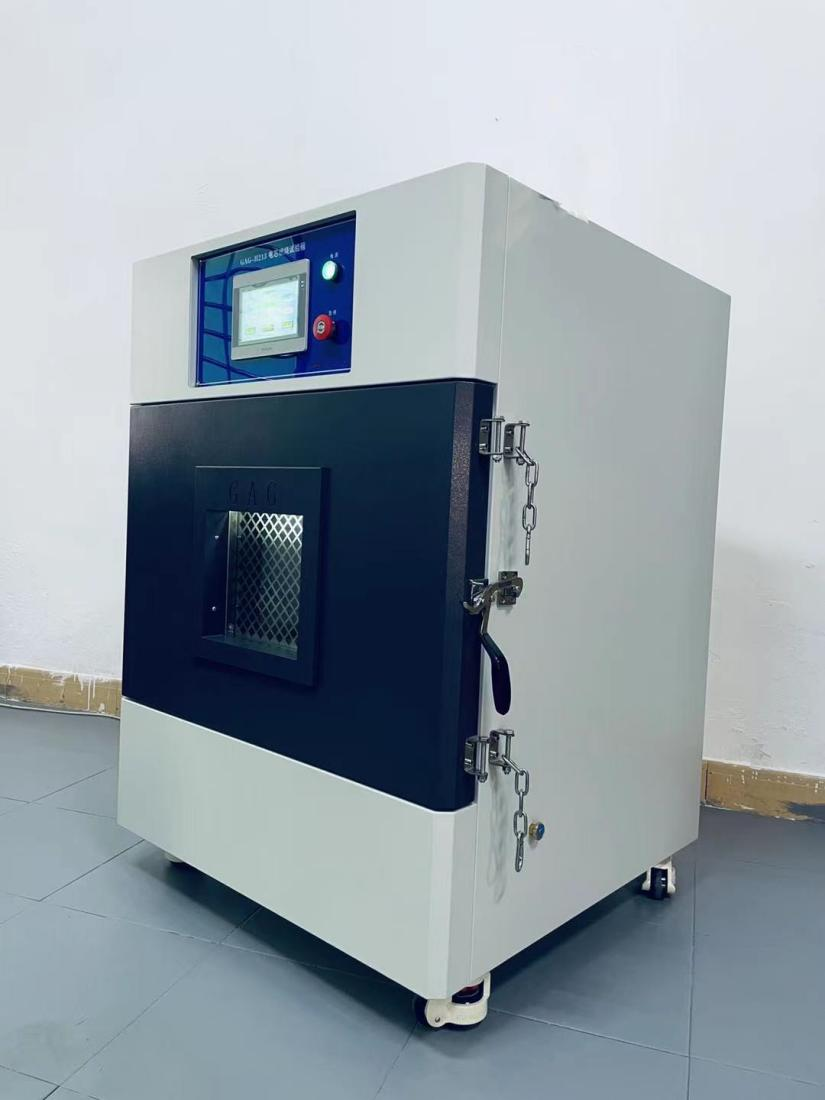

Battery Combustion Test Machine

I. Product Overview:

This device is used to observe the combustion behavior of batteries when exposed to a burner. The mesh screen is fixed 38.1 mm above the burner. It features 20 holes spaced every 25.4 mm, with a wire diameter of 0.43 mm. The burner is ignited, and the combustion is monitored until the battery explodes or burns out. The equipment includes a burner with a support frame, test table, standard metal mesh cover, and standard metal mesh screen.

II. Compliance Standards:

SJ/T 11169-1998 (eqv UL 1642:1995)

SJ/T 11170-1998 (eqv UL 2054:1997)

UL 1642

GB 8897.4-2002 6.3.2.9

IEC 60086-4:2000

 III. Product Parameters
