Wire Wedge Bonder

Automatic Wire Wedge Bonder for Cylindrical/Prismatic/Pouch Cell Battery Module Production Line

  • Model Number:

    TMAX-UW-3000XK
  • Type:

    Automatic
  • Dimension(L*W*H):

    1300*1300*1650mm
  • Net Weight:

    500KG
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Place of Origin:

    China
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    60 days
Product Details

Automatic Wire Wedge Bonder for Cylindrical/

Prismatic/Pouch Cell Battery Module Production Line


Ⅰ、Product description:

After the battery module assembly process is completed, it is loaded by the automatic feeding system of the ultrasonic welding equipment & Al wire bonding machine, and then transferred to the ultrasonic welding area, and the welding head system performs ultrasonic welding according to the set welding parameters and positions. After the ultrasonic welding is completed the battery module is transferred to the designated position through the automatic feeding system, and the equipment operator takes the welded battery module away and sends it to a next production process processing.



Ⅱ、Features:

1. Lead connection process, bonding aluminum wire can directly act as a fuse, and will automatically fuse in the event of a short circuit to ensure the safety of the battery pack.

2. The aluminum wire can match the stress requirements and tensile test requirements of the battery pack on the connection.

3. The use of aluminum wire bonding can achieve repeated welding, greatly improving the maintainability and recovery rate.

4. When using aluminum wire welding or aluminum strip welding, the temperature of the welding zone will not rise. Other traditional welding methods require heating to melt the metal.

5. Al wire bonding is a clean welding process. There are no flux residues or molten metal slag, avoiding reliability problems.

6. The battery pack welding quality inspection machinecan accurately and quickly detect whether there is a problem with the connection between the battery and the busbar.

7. It is easy to detect if welding defects occur during aluminum wire welding, and it is easier to repair the defective positions without welding damage.



Ⅲ、Scope of application:

The fully automatic wire wedge bonder is suitable for the lithium-ion battery pack production for the lead connection between the battery cell and the busbar, and the sampling connection of battery cell status.

It has applications in cylindrical battery packs, prismatic battery packs and pouch battery packs.



 Ⅳ、Specification:

Product name

Fully Automatic Wire Wedge Bonder

Product model

TMAX-UW-3000XK

Input voltage

220V, 50/60Hz

Power

3000 W

Input gas source

0.5MPa

X-axis travel

400MM (Customizable)

Y-axis travel

800MM (Customizable)

Z-axis travel

60MM (Customizable)

Rotary-axis

±220°(Resolution: 0.08°)

Transducer

60KHz (Customizable)

Heavy wire welding head

Rotatable, standard front cutter

Welding pressure

50~1500 grams

Maximum arc height

40 mm

Wire feeding system

Motor controlled wire feeder with optical encoder

Minimum wire feeding length detection

2 mm wire feeding

Aluminum wire diameter

125~500μm

Aluminum wire coil size

Outer diameter: 50~120mm

Inner diameter: 10~11mm

Width: 22~45mm

Display

17-inch color display

Visual system

Image recognition system

Communication method

IO communication, network port communication

Size(L*W*H)

1300*1300*1650mm

Net weight

500KG

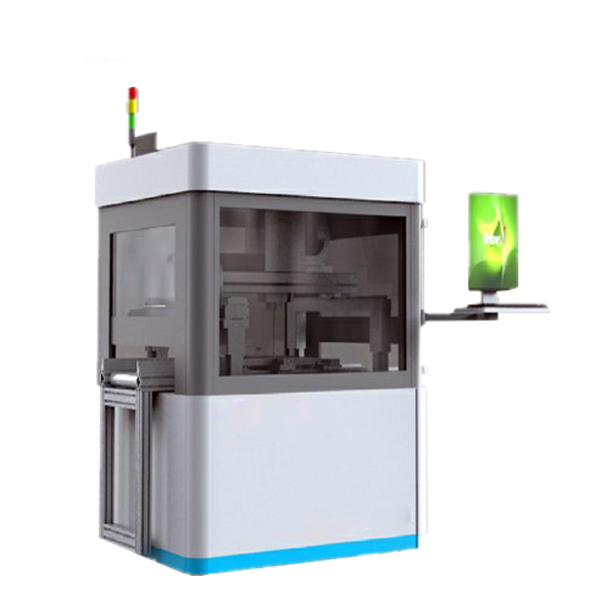

Wire bonding machine
