Automatic Vertical Battery MYLAR Sticking Machine After Pouch Cell Top Side Sealing
Model Number:
TMAX-TMJ150Compliance:
CE CertifiedWarranty:
Two Years Limited Warranty With Lifetime SupportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
5V20A 64 Channel Vertical Pouch Cell Hot Press Pressure Formation Machine For Pouch Cell Production LineNext:
Battery Two Workstations Top&Side Edge Sealing Machine for Pouch Cell Production Line

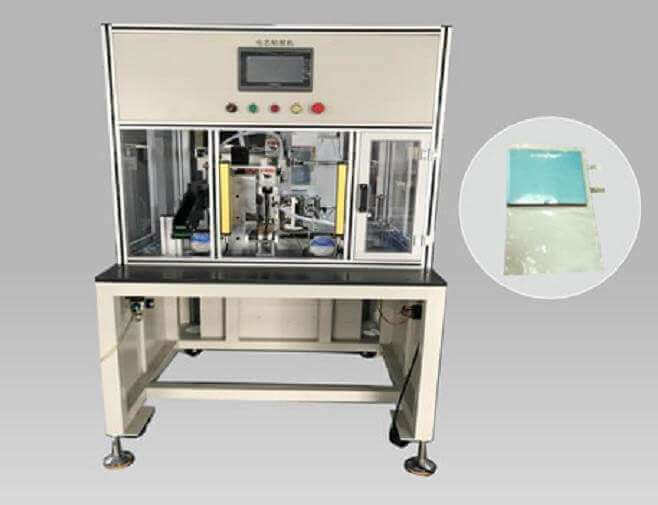

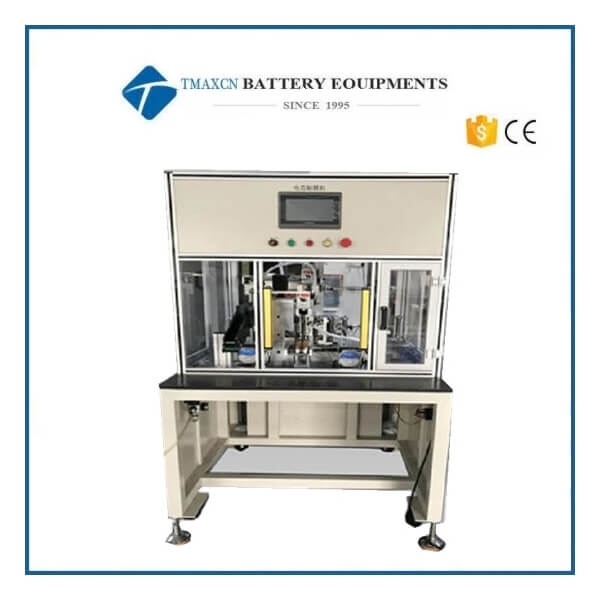

Automatic Vertical Battery MYLAR Sticking Machine After Pouch Cell Top Side Sealing
Application
It is suitable for automatic battery protection MYLAR after the top and side sealing of lithium pouch cell to avoid scratching the cell surface during the flow drawing process.
Principle
Manually place the battery cell upright in the feeding guide groove, push the battery cell to the front positioning block, and send the positioned battery cell to the filming rubber roller to complete the filming and then send it by the conveyor belt (discharge) Recycling place (this equipment realizes single person and single machine)
Basic parameters
Power supply |
AC220V/50Hz, power: 1.5KW (prepared by customer) |
Compressed air |
≥0.6 MPa 10L/min(prepared by customer) |
Weight |
About 500kg |
Dimensions |
(L*W*H) 1400*1200*1700 mm |
Color |
International Warm Grey 1C |
Technical parameters
Applicable specifications |
W: 30-100mm(without airbag); H: 50-150mm, T: 3-12mm |
Can be adjusted according to different types of batteries, battery width adjustment range |
30-100mm(without airbag) |
Input parameter |
The maximum outer diameter of the protective film is 300mm, and the installation inner diameter is 78mm |
Stick MYLAR roller effective length |
150mm |
Accuracy |
After the battery cell is pasted with the protective film, the accuracy of the length direction of the battery cell is ±0.5mm, and the accuracy of the width direction is ±0.5mm |
Output |
900-1200pcs/h |
