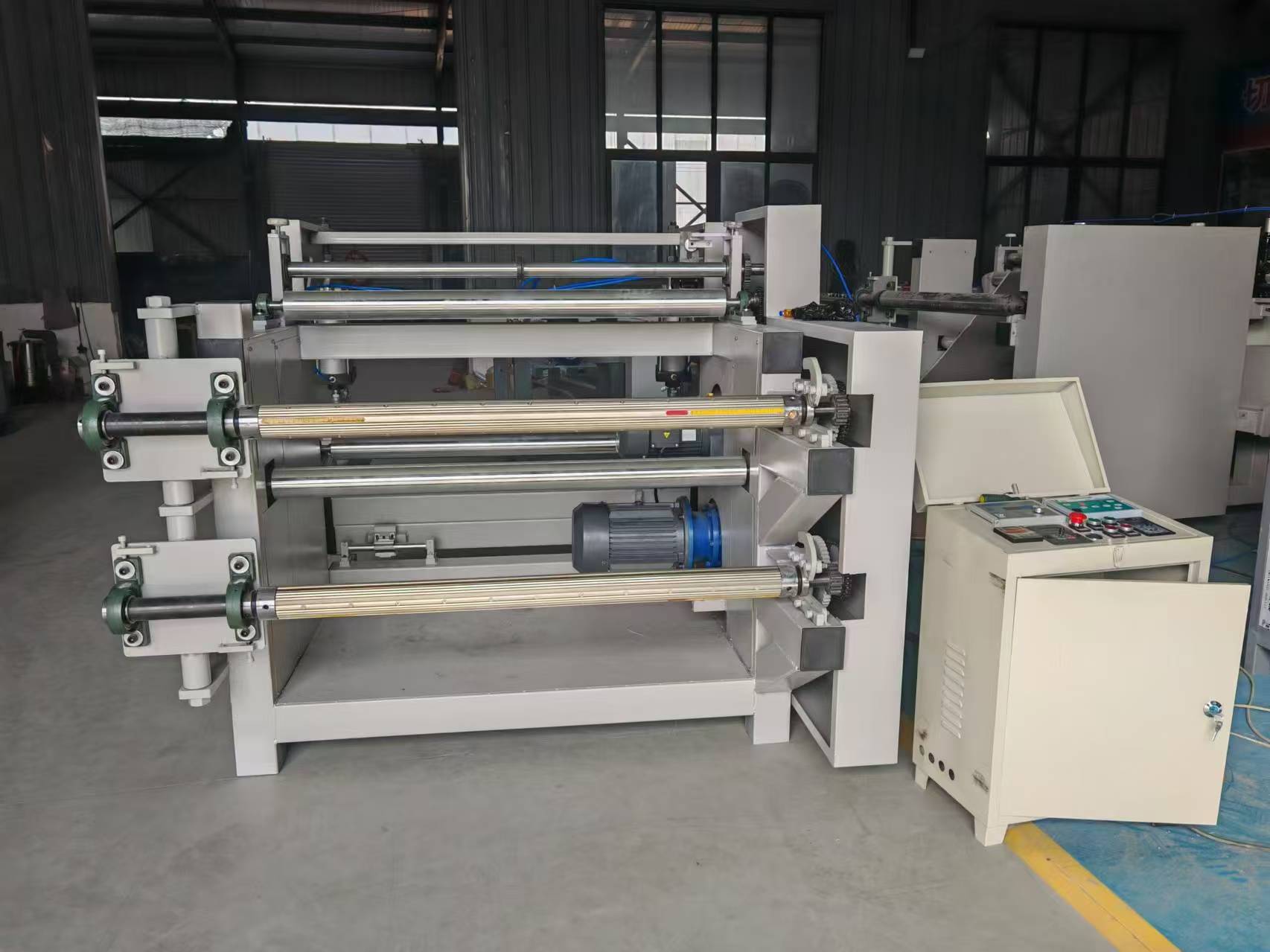

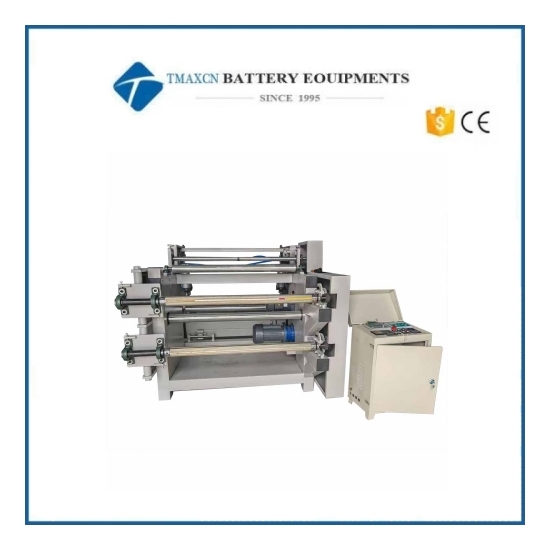

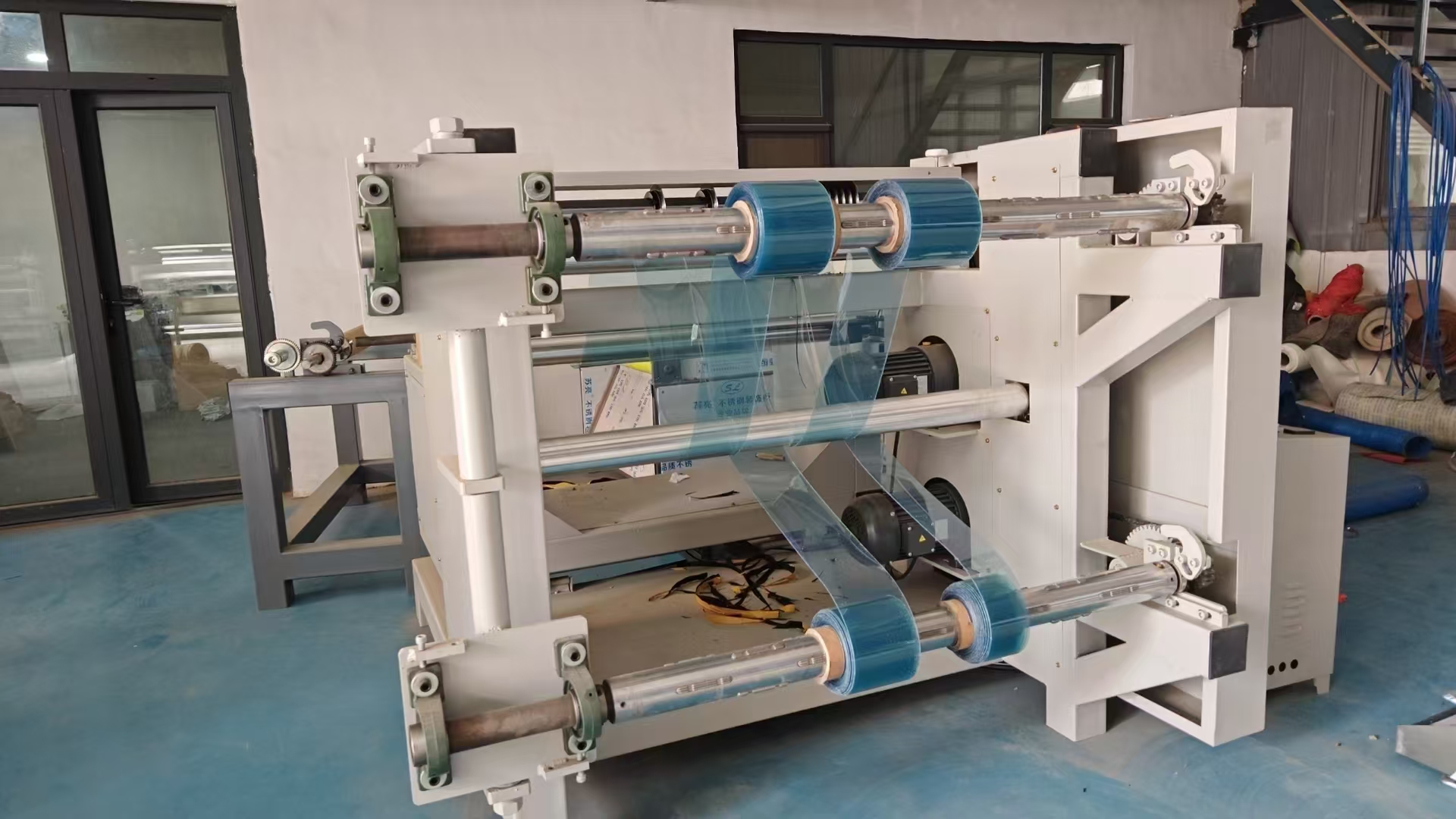

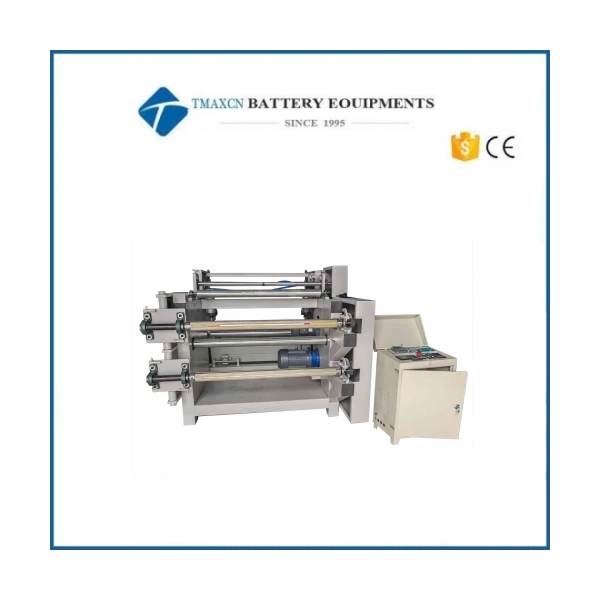

Automatic Thin Film Separator Slitter Slitting Machine With Roll to Roll System

No

Product name

Model

Unit

Note

1

Slitting machine

800

set

10 sets of round knives

2

Pneumatic shaft

pcs

Tile type 74 diameter (only for 75-76 paper tube) 3 pieces

3

Numerical control box

set

Includes 2 converters (1.5-2.2 kW)

4

Slitter machine

set

1.5KW(national standard pure copper motor) 208V/60HZ

5

Winding machine

set

2.2KW national standard pure copper motor) 208V/60HZ

7

Magnetic particle machine

set

10 kg (control winding tightness)

8

Constant tension

set

8

Effective discharge diameter

m

Customized

9

Effective winding and straightening

m

Customized

10

Minimum cutting

mm

Customizable (adjustable)

11

Slitting thickness

mm

0.1-20 (customized according to material)

12

Overall dimension

mm

1300*1800*1450 (depending on the material)

13

Machine weight

kg

700kg

14

Cutting error

mm

+ / - 0.001

15

Coiling error

mm

+ / - 0.5

16

Slitting speed

m

80-100m/s

17

Deviation correction controller

set

Photoelectric correction

19

Meter recorder

pcs

Roller type
