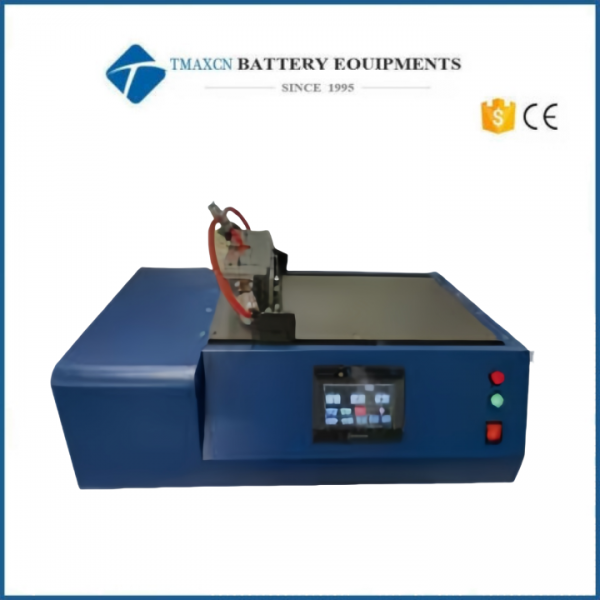

Automatic Scraping Machine or High-Precision Vertical Coating Equipment for Fabrication of Perovskite Solar Cells

Automatic Scraping Machine or High-Precision Vertical Coating Equipment for Fabrication of Perovskite Solar Cells

Specially developed for the laboratory, a high-precision vertical coating equipment has the characteristics of fast preparation speed, film formation and good uniformity, especially suitable for the preparation of 5-20cm perovskite battery modules in the laboratory, as well as the preparation of fuel cells, OLED and other devices, easy to clean, easy to save and easy to operate, good film formation and other advantages. Vacuum adsorption at the bottom heating belt, in situ film formation assisted by air knife, and high precision inlet coating head.

Technical parameter

Product characteristics

1. Coating platform: The coating platform with high levelness can be vacuum adsorbed and heated to ensure the fixing of rigid substrate and the spreading and bonding of flexible substrate, which can increase the uniformity of the film. Heating, vacuum adsorption, air knife assisted film formation.

2. Coater: High precision corrosion resistant original imported adjustable coating head (resolution up to 5um, straightness ≤1um). Made of anodized aluminum alloy, no decolorization, acid and alkali resistance, corrosion resistance, can accurately set 0-3000um thickness, and can be completely disassembled and cleaned with solvent. Necessary for paint and coatings manufacturing, and suitable for various experiments. Save the solution.

3. Coating speed: It can be adjusted stepless in the range of 0-100mm/s, and the coating length (starting point/end point) and moving speed can be adjusted arbitrarily. Speed adjustable

4. Good applicability of solution: Viscosity range of coating solution: 0.8- 10000CPS.

5. Wide range of applications: Perovskite batteries, fuel cells, lithium-ion batteries and OLED applications, but also suitable for quality control analysis, paint, paint, ink, varnish, adhesive distribution characteristics.
