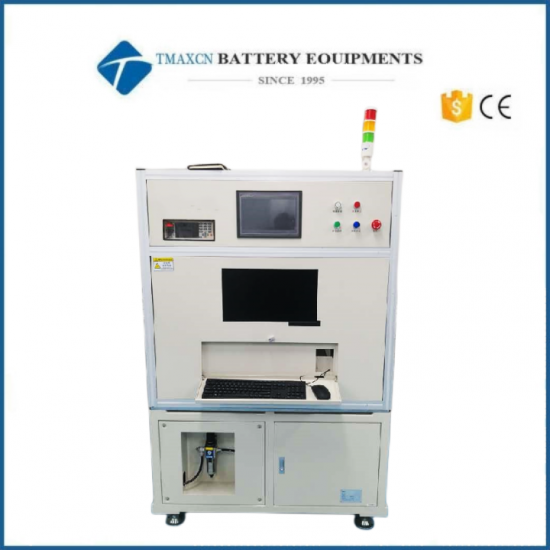

Automatic Prismatic Cell DCIR Tester

I. Advantages and Characteristics

1. It can automatically calibrate the power supply and upload calibration data, and the production management control system can automatically store and generate calibration reports.

2. Set up a secondary positioning mechanism for the tray, with a secondary positioning accuracy of ± 0.5mm;

3. Loading method: The conveyor line automatically loads and unloads materials;

4. Data processing: The software is independently developed and interacts with MES, WMS, and WCS system data, with strong plasticity.

II. Performance parameters

Capacity: ≥ 24PPM (customizable)

Negative pressure control method: PLC+upper computer

Charging voltage setting range DC: 0~5000mV

Discharge voltage setting range DC: 1800mV~5000mV

Voltage setting resolution: 1mV

Voltage display resolution: 0.1mV

Charging and discharging current setting range: 5A-750A (customizable)

Control accuracy: ± 0.05% F.S

Charge discharge current response time: ≤ 10ms

Probe service life: ≥ 30000 times

Indentation ≤ 0.1mm
