Automatic Spot Welder

Automatic One Side CNC Spot Welding Machine for EV Battery Pack

  • Model Number:

    TMAX-SP01
  • Type:

    Automatic
  • Input Power:

    2KW
  • Compliance:

    CE Certified
  • Warranty:

    1 Year Limited Warranty With Lifetime Support
  • Place of Origin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20 days
Product Details

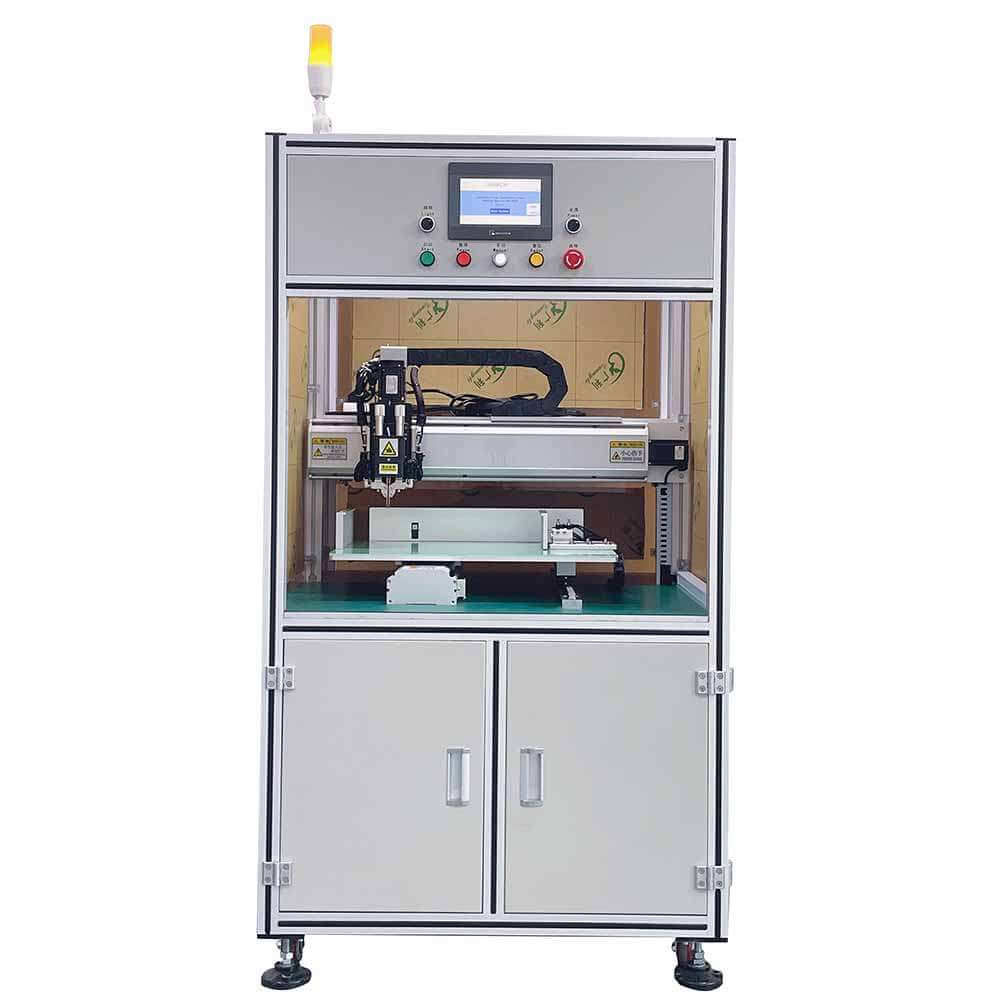

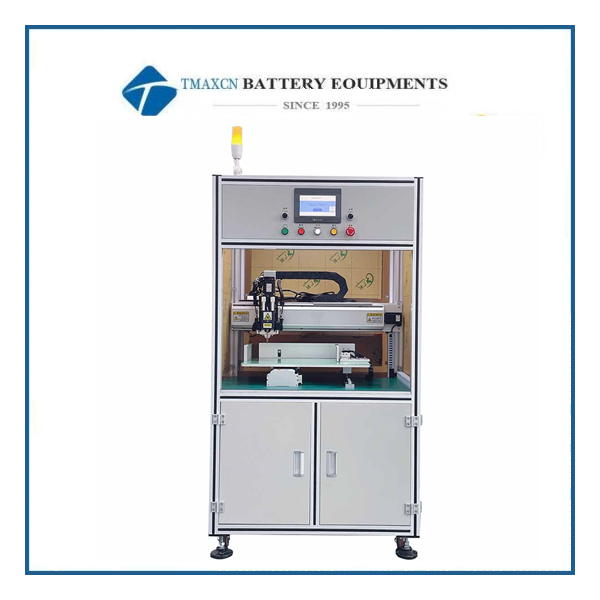

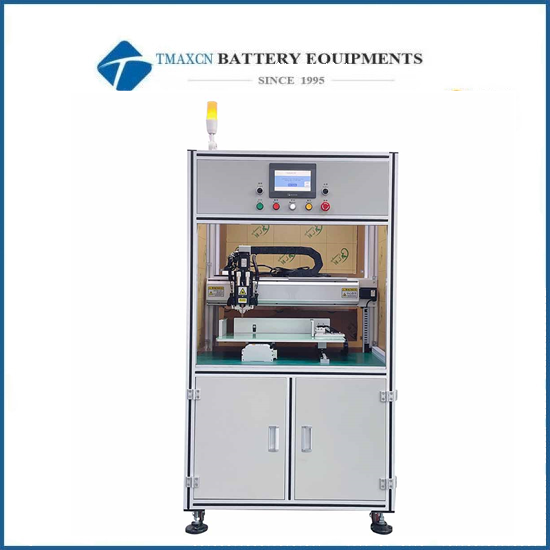

Automatic One Side CNC Spot Welding Machine for EV Battery Pack



Introduction:

1.Designed for 18650,26650,21700, 32650 etc battery pack welding, like E-bike, scooter and electro mobile battery pack welding.

2.5000A invert spot welding power supply, high quality welding effect.

Optional 8000A invert spot welding power supply and 8000A Transistor welding power supply.

3. Servo motor driving, fast, stable welding.

4. Programmable welding process, can produce any shape battery pack.

5. Real-time welding effect monitoring warning for NG welding spot.



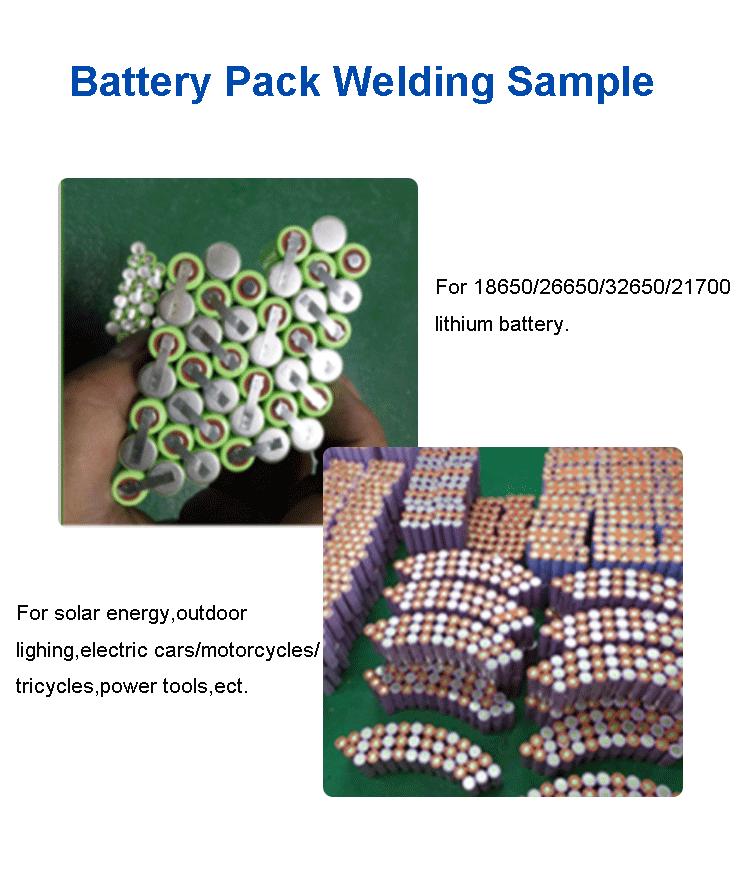

Application:

Photovoltaic, power battery, NiMH lithium battery and other batteries are connected with nickel alloy strip, aluminum nickel composite strip, wire and guide strip, household electrical parts and guide strip, hardware accessories, copper and silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.



Feature:

1) Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.

2) Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.

3) Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)

4) Easy to change from low current to high current, suitable for precision welding.

5) The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.

6) The welding current will rise with the power on time to ensure the welding effect.

7) Stable control system

8) High configuration regulating device

9) High precision working procedure

10) High cost performance of products



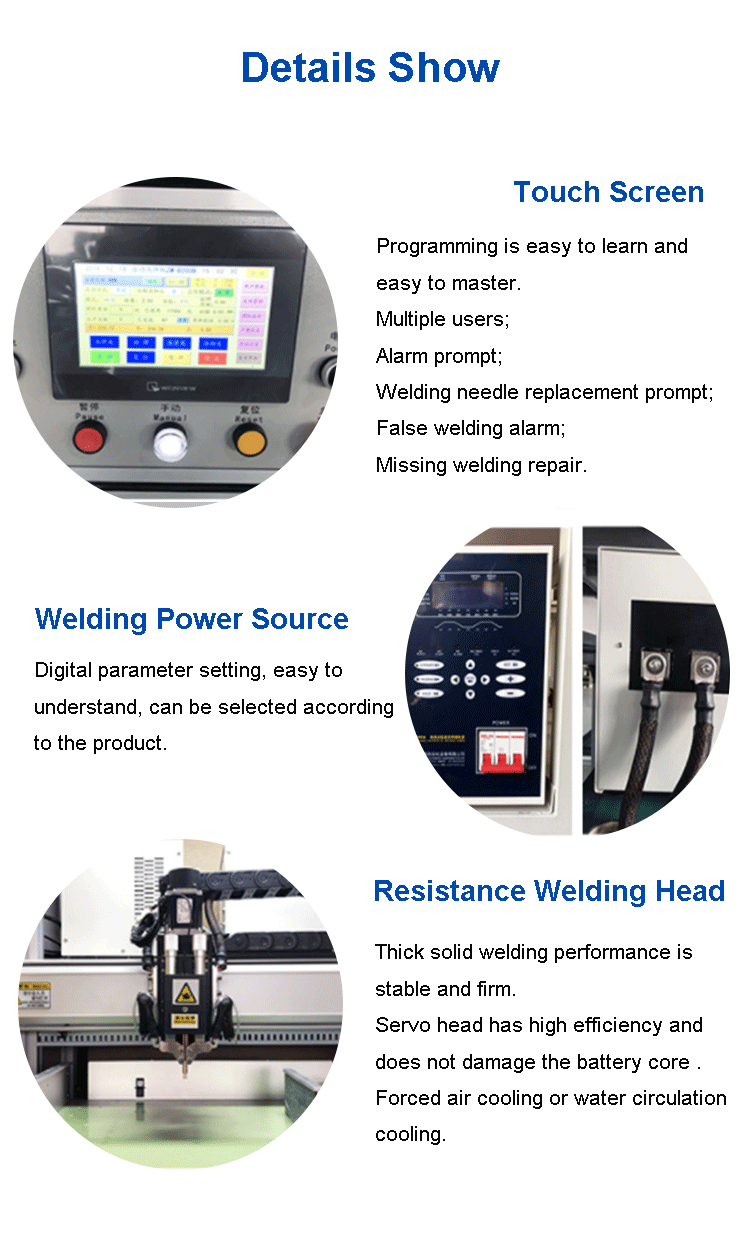

Performance features:

1. Touch screen display, more convenient operation and clearer display

2. Three file programming modes, manual input, array, CAD drawing import, simple and fast response to various complex program editing

3. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of spot welding needle temperature on welding quality

4. It can store up to 99 groups of files, which is easy to call and does not need complicated process of line changing and machine adjusting

5. The spot welding program of a side and B side of fixture can be switched.



Technical Parameters:

Power Supply

AC 220V±10% 50Hz

Electric Current

DC

Welding Mode

Inverter DC

Welding Current

5000A or 8000A optional

Power Form

Automatic

Y-axis Travel

400mm (can be customized)

X-axis Travel

500mm (can be customized)

Spot Welding Speed

0.35s/point; 2800pcs / hour

Fast Speed of Motor Drive

1000mm/s

Number of Cores Loaded

X direction: 26

Y direction: 26

(standard:18650 cell)

Number of file groups that can be stored

99 group

Operating System

Embedded system + man machine interface

Transmission mode

Stepping + imported precision linear guide rail, optional servo + screw rod)

Equipment air pressure

0.4-0.7Mpa

Weight

200kg

Size

900*900*1650mm
