Automatic loading Lithium Battery Protection Board Testing Machine
Model Number:
TMAX-BMS-autoType:
Semi-AutomaticDimension(L*W*H):
1200*1000*1500mmCompliance:
CE CertifiedWarranty:
1 Year Limited Warranty With Lifetime SupportShipping Port:
XiamenPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
1-24 Series 120A (Overcurrent)Lithium Battery Protection Board BMS Testing MachineNext:
1-32 Series Protection Board Tester (300A)

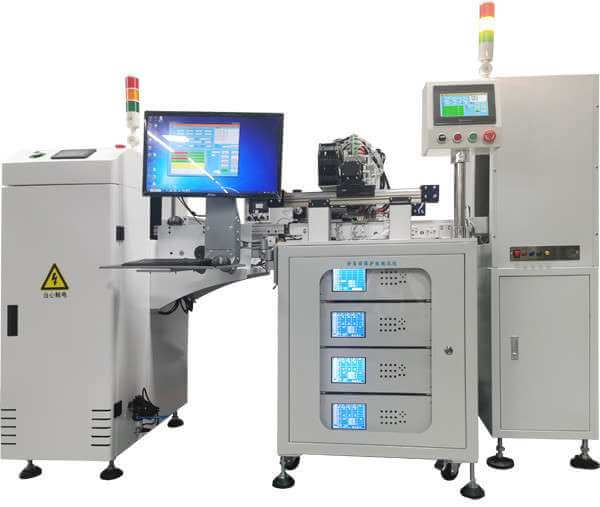

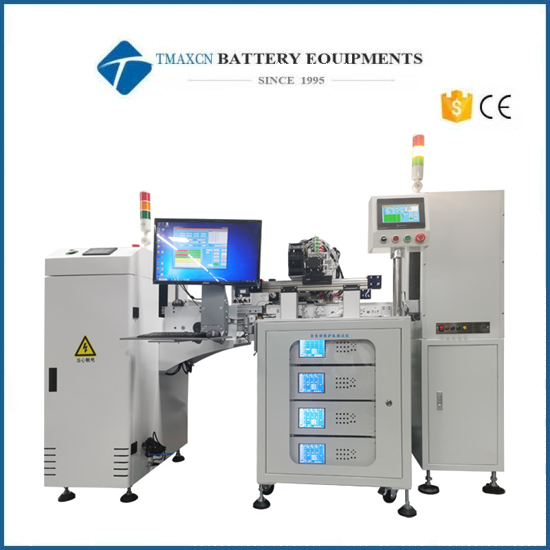

Automatic loading Lithium Battery Protection Board Testing Machine
1. Application and Function Introduction
1.1 Application:
It is applied to the integrated automatic unmanned test process of automatic loading, automatic testing, marking after testing and automatic receiving of protection board. The equipment includes three parts: loading machine, test automation platform and receiving machine.
Board loading machine: suitable for market standard board loading machine;
Test automation platform: 1-4 PBTS (m) protection board test + automation platform;
Plate retractor: suitable for standard plate retractors on the market.
2.Function introduction:
Application |
For semi-automatic test of protection board |
|
Overcharge and discharge voltage test |
Overcharge recovery and discharge recovery test |
|
Internal resistance test |
|
Equalizing voltage and current test |
|
Overcurrent protection test |
|
Unique test items |
It can support two pieces at the same time to improve the test efficiency |
The equipment can be retested to avoid false measurement due to poor contact of fixture |
|
Test pass mark + test error mark |
|
Test and make-up statistics, monitor test output and pass rate statistics |
|
Type of protection plate |
Lithium iron phosphate, lithium ternary cobalt oxide, lithium manganate, etc |
Parameter |
Start waiting test bit |
Prohibit wait for test bit |
Maximum board width supported |
80-230mm |
80-230mm |
Maximum board length supported |
0-180mm |
0-300mm |
Maximum number of board rows supported |
1-10 |
1-10 |
Maximum number of board columns supported |
1-10 |
1-10 |
The special size of the puzzle needs to be customized |
||
3.Parameters:
Test Items |
Test Scope |
Accuracy |
Equipment channel |
1-4 |
Optional |
Number of test series |
1-6 series |
Optional |
Reference voltage |
LiCoO2(3.8V) LiFePO4(3.0V) |
|
Overcharge protection voltage |
0.5-5V |
±1mV |
Over discharge protection voltage |
0.5-5V |
±1mV |
Overcharge recovery voltage (Self recovery) |
0.5-5V |
±1mV |
Over discharge recovery voltage (Self recovery) |
0.5-5V |
±1mV |
Overcharge protection current |
1-40A |
±0.1A |
Over discharge protection current |
1-20A |
±0.1A |
Equalizing opening voltage |
0.5-5V |
±1mV |
Equalizing real-time current |
0-200mA |
±1mA |
Overcurrent protection delay |
0-10S |
±1mS |
Overcharge protection delay |
0-20S |
±1mS |
Single section self power consumption |
0-500uA |
±1uA |
Loop internal resistance |
0-200mΩ |
±1mΩ |
Online settings |
serial communication:RS232 serial port |
|
Automatic unloader |
470*470*1500mm（W*D） |
Automatic test platform |
980*680mm |
Plate retractor |
1200*1000*1500mm（W*D*H） |
Floor Size |
2200*1200mm（W*D） |
4.Environmental requirements and technical parameters of equipment
2.1 power supply: AC voltage 220V ± 10%, frequency 50Hz ± 10%;
2.2 ambient temperature: - 10 ~ 45 ℃;
2.3 the environment is free from strong vibration, corrosive gas and flammable and explosive gas.
Cindy@tmaxcn.com
David@tmaxcn.com
+86 13003860308
18659217588
