Automatic Lithium Battery Cell Insulating Adhesive Paper Insulator Pasting Machine with Optional Channel Cylindrical Battery Sorter
Model Number:
TMAX-STNCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
5 Channel Cylindrical Battery Sorting Battery Selector Grading Machine for IR and Voltage TestingNext:
High Efficiency 9 Channel Automatic 18650 26650 21700 32700 32650 Cylindrical Battery Sorting Machine

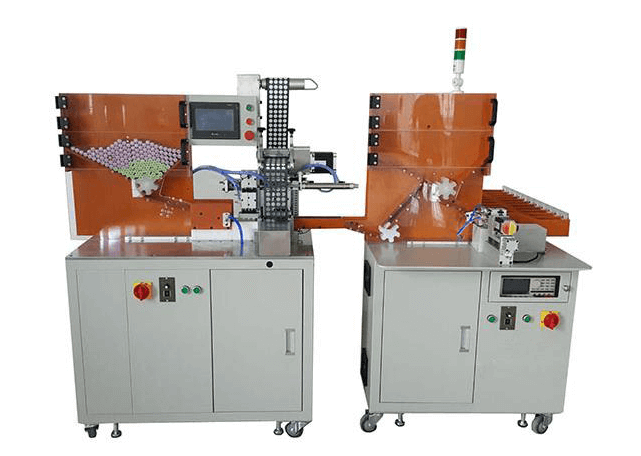

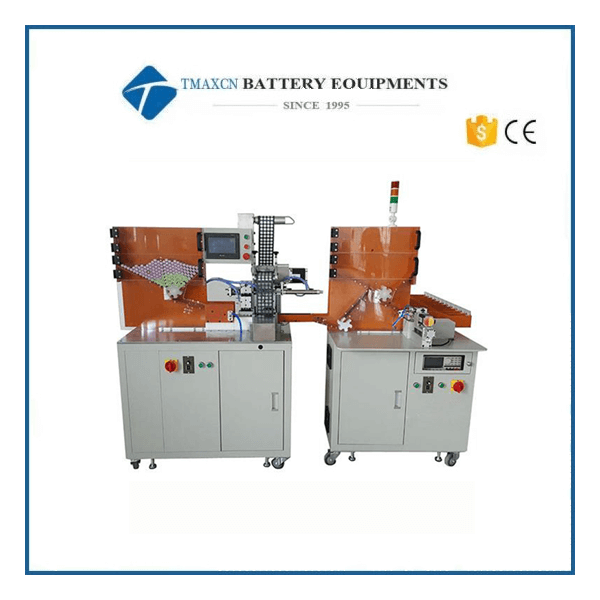

Automatic Lithium Battery Cell Insulating Adhesive Paper Insulator Pasting Machine with Optional Channel Cylindrical Battery Sorter
Introduction
The sorting and battery insulation paper sticking machine is a kind of testing and sorting equipment which is suitable for cylindrical battery to be pasted first, then checked the internal resistance, voltage and other parameters. It is equipped with a high-precision internal resistance, voltage automatic testing system. According to the internal resistance set on the computer software, the equipment accurately sends the battery to the designated position according to the voltage value, and the system can equip with optional channel battery sorter which can realize (5 / 9 / 11 / 13 / 22) sorting. The overall design efficiency of this equipment is about 4500 electric cores per hour, the structure design is simple and generous, and the performance is stable.
Technological Process:
Filling the whole box of battery→Motor rotation→The cylinder pushes the battery out→Belt transport battery→Battery launch→Battery entering conveyor belt→Stop cylinder released→Lead screw drives cylinder battery team→The battery is full of four lead screws to shift the battery→Under cylinder pressure→Move the battery to the highland barley paper position→Secondary positioning of cylinder to battery→Barley paper pasted on stepper motor→Waste recovery→Finished battery to discharge chute→The cylinder pushes the battery onto the sorter belt→Battery launch→Test battery→After the battery is full, the manipulator grabs the battery→Battery sorting→Manual packing
Mechanical Structure
Compact structure design, beautiful appearance and small space occupation;
Manual packing and loading of equipment;
The equipment adopts high quality and thick cold-rolled sheet metal, aluminum profile frame;
The equipment is equipped with universal movable casters, which makes it easy to move and handle the equipment.
Specification
11 Channel Cylindrical Battery Sorter (Optional Channel)
Model |
TMAX-FN-011 |
Power supply |
AC220V ± 10% 50Hz |
Voltage |
900W |
Sorting parameters |
Open Circuit Voltage and AC Internal Resistance |
Compressed Air Pressure |
0.5 ~ 1.0Mpa |
Sorting Speed |
≥80PPM |
Productivity |
5000pcs/h |
Dimension |
1320x880x1450mm |
Adaptation Battery |
Cylindrical Battery (18650,32650,18500,26650,14500,21700 etc.) |
Receiving Channel |
11 channels |
Internal Resistance Tester |
HIOKI3561 or HK3561 |
|
HIOKI3561: Open circuit voltage accuracy:± 0.01% rdg; Display Resolution: 0.1 millivolt; Internal impedance accuracy:± 0.1% rdg; Display Resolution: 0.01 mΩ
HK3560: Open circuit voltage accuracy: ± 0.05% rdg; Display Resolution: 0.1 millivolt; Internal impedance accuracy:± 0.3% rdg; Display Resolution: 0.01 mΩ |
Total weight |
280kg |
Control component |

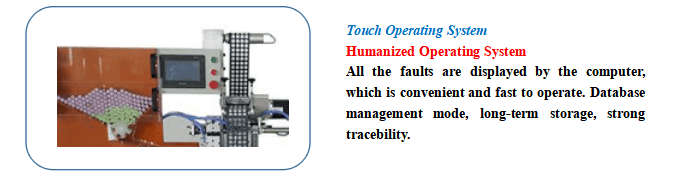

7.5 inch touch screen, 3-axis PLC programmer |
Motion device |
Closed-loop stepper motor is used for shifting, accurate positioning and synchronous belt conveying the core to prevent the surface of the core from being damaged. |
Feeding |

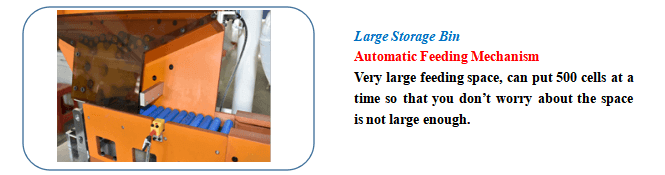

Using hopper feeding mode, 500 PCS can be put in one time. |
Data storage |
Test data can be stored on a U disk |
Scan code function |
Can be customized |
Automatic Online Interface |
It can be customized to connect the outlet of the automatic surface cushion machine in the machine hopper to realize the automatic connection of the electric cores and save the labor cost. |
Other |
Customizable scanner and database data docking |
|
Optional Distribution Core Dynamic Tester, reflecting the quality and load-carrying performance of the core |
|
Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower) |
|
Automatic collection of production quantity to show current production efficiency |
Equipment Configuration List
Tester |
HIOKI3561 or HK3561 |
Computer |
Industrial Computer |
PLC |
FX3U-80MT/ES-A and SC-09 |
Servo |
Panasonic A5 Series |
Sensors |
Panasonic and Omron, Japan |
Guideway |
ShangYin, Taiwan |
Bearing |
Japan NSK |
Cylinder |
Adec |
Indoor temperature |
- 30 ℃ ~ 70 ℃ |
Factory |
No pollution and no strong electromagnetic interference |

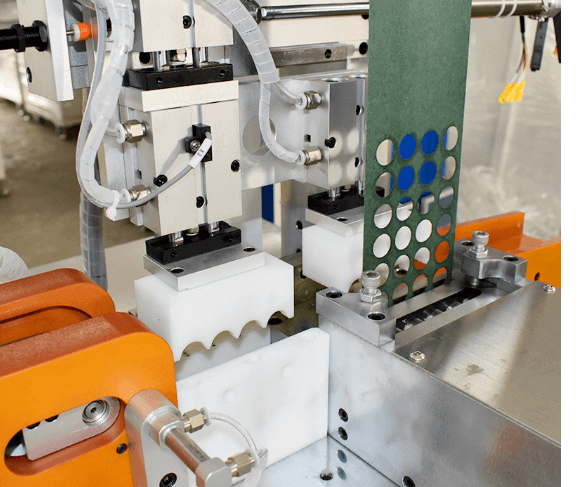

Battery Insulation Paper Sticker
Input gas source |
0.4-0.8Mpa |
Function Style: |
stepper drive with pneumatic |
Input voltage: |
AC220V |
Sticker Matrials: |
Barley paper or PVC |
Sticker Matrials Size: |
Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM |
Adaptable Battery Cell |
18650 battery Plus-n-Minus |
Power: |
Electric power or pneumatic |
Control Instrument: |
7.5feet contact screen,PLC programming machine and step motor |
Electrodes to the body distance: |
100 mm (Scalable adjustable) |
Producivity: |
4000pcs/h; singal 4pcs |
External dimensions |
1.3M*1M*1.3M |

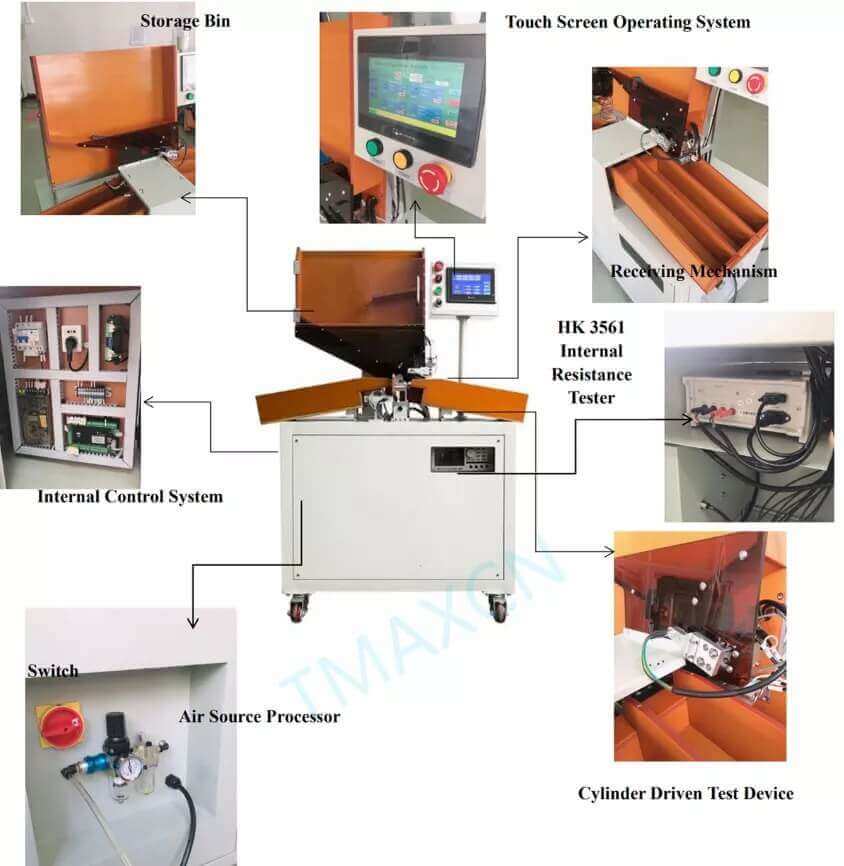

Battery Sorter

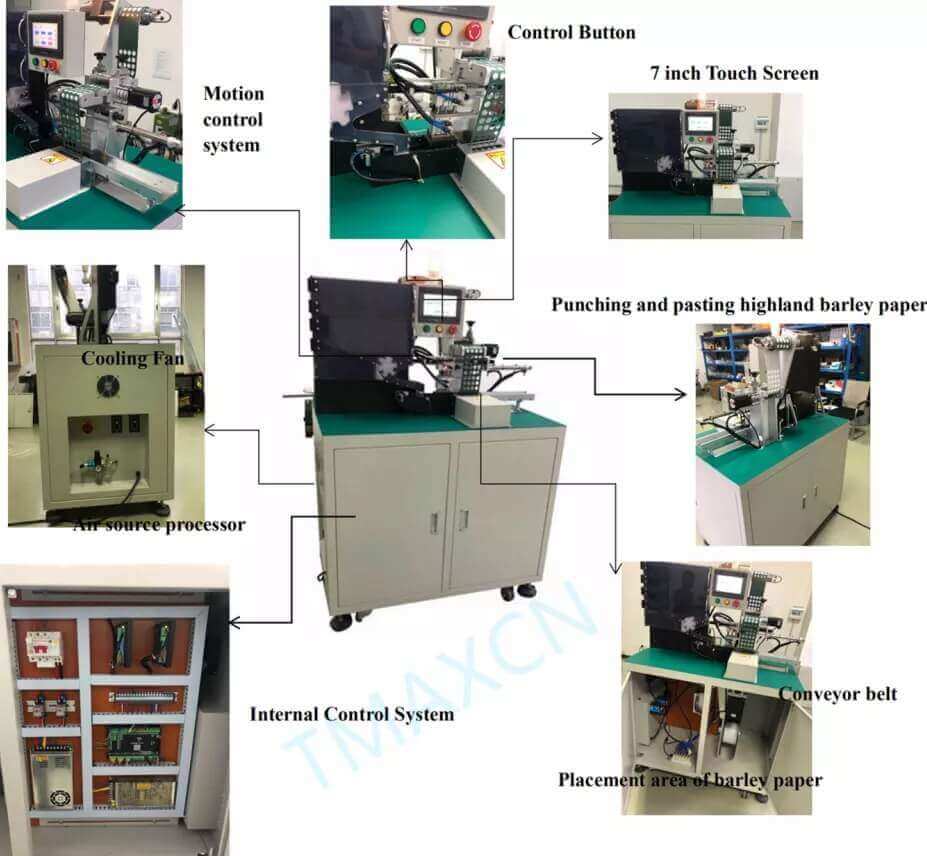

Battery Paper Sticker

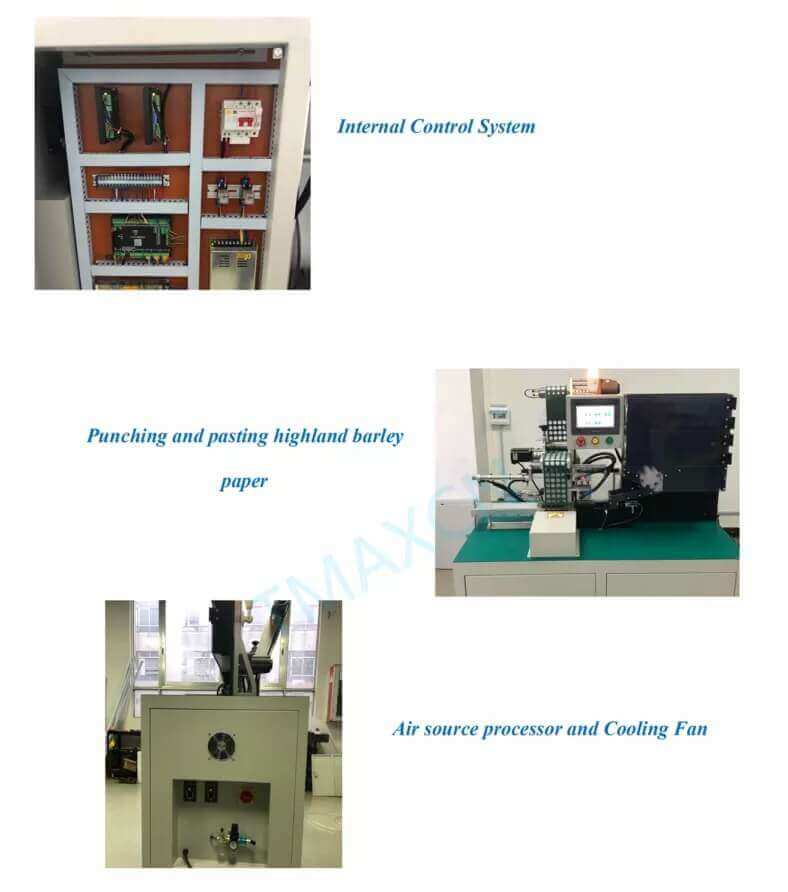

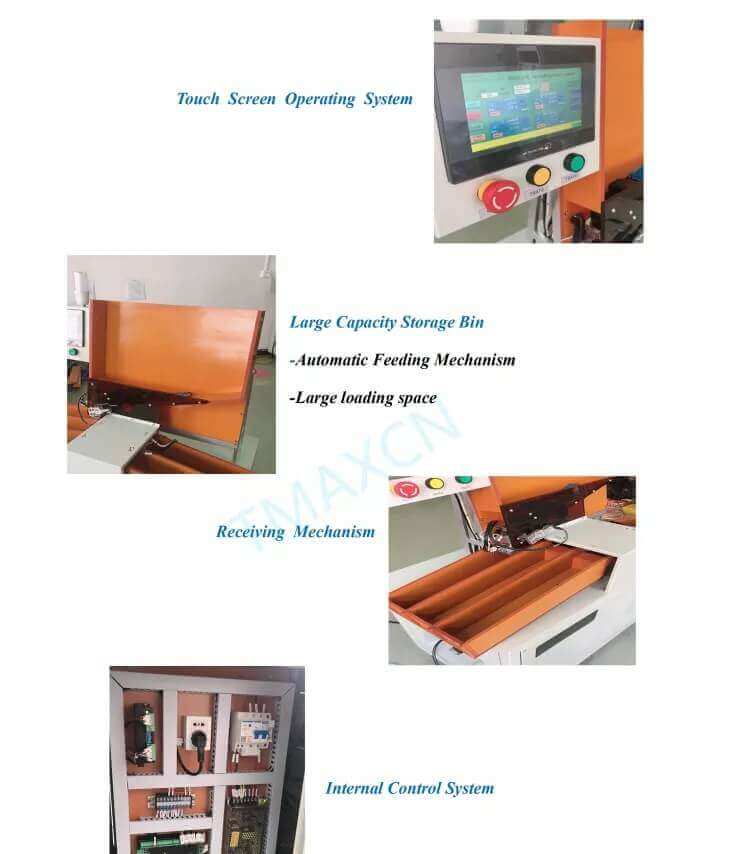

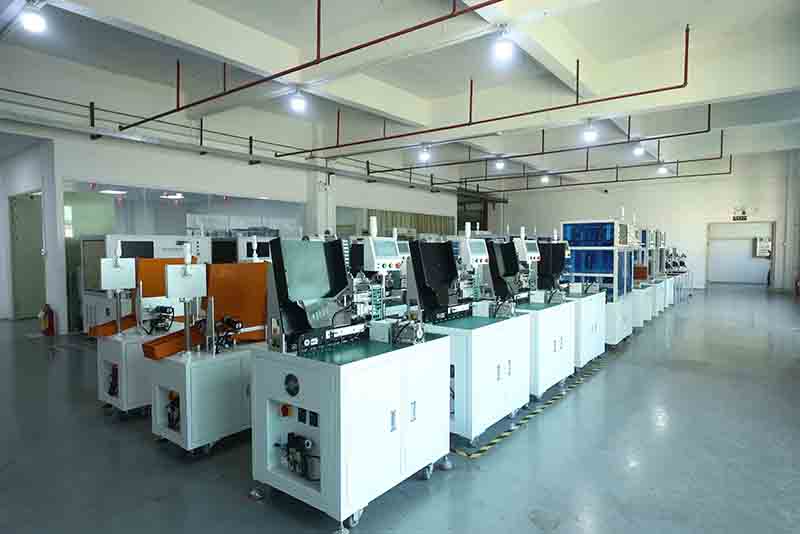

Detail Images
