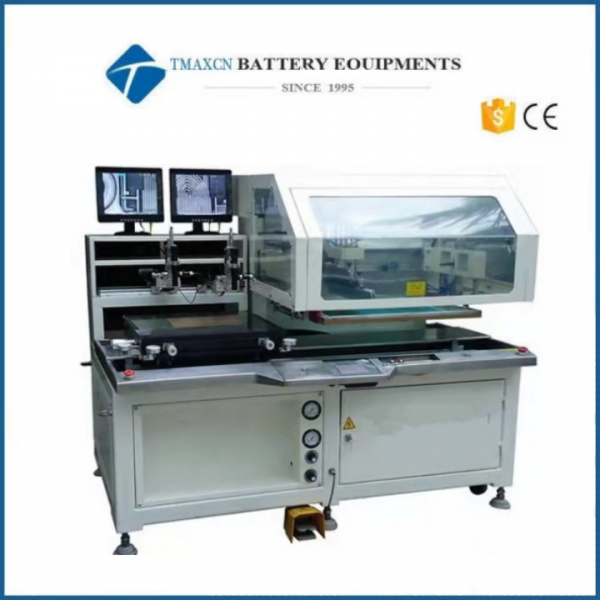

Automatic Feeding And Unloading High Precision Printing Machine Equipped with Doctor Blade

1. Basic specifications

Specification

Content

Machine dimensions

Length 1500× width 840× height 1620mm

Printing area

Max. 250 x 250mm/ min. 40 x 50mm

Substrate thickness

0.05 mm to 5.0mm

Uniformity of film thickness

﹤±0.001 mm

Use power

Three-phase, 220V, 50Hz 3.0KW

Air pressure

0 ~ 6kgf/cm2 PSI (Including air pressure reservoir, keep the mechanical pressure stable)

2. Printing table

Printing table size

360mm×360mm

Countertop suction area

260×260mm

Table entry and exit repetition accuracy

0.001mm (Servo + ball screw)

Table feed/send direction

Left and right

Printing table adjustment

X: ±4mm, Y: ±4mm, θ : ±2°

Table alignment accuracy

﹤±0.002mm

Repeat printing accuracy

﹤±0.005mm

Mesa plane accuracy

﹤±0.015mm

Parallelism between table and doctor blade

﹤±0.02mm

The parallelism between the table and the frame clip

﹤±0.02mm

Table access velocity

10 ~ 1500mm/s (Adjustable)

Maximum lift stroke of platform

15mm

Platform drive

Servo motor + linear slide + ball screw (to ensure low speed movement without inching phenomenon)

Mesa material

Configure according to customer requirements

Automatic paper rolling function

(Optional)

Automatic alignment device

CCD automatic positioning

Automatic supply and storage

Automatic (According to customer demand)

3. Printing base

Printing mode

Printing base fixation

Printing speed

0 ~ 1200mm (Per second)

Printing pressure

0 ~ 20kg/cm²

Scratch stroke

0 ~ 300mm (Digital setting)

Printing motor

Stroke setting

Doctor blade height adjustment

20mm

Doctor blade angle

-30° To 30°

Reink knife height adjustment

20mm

Return ink knife Angle

-30° To 30°

Adjust the level on both sides of the doctor blade

Have

Printing drive

Servomotor

4. Frame seat

Maximum size of the mesh frame

550×550mm

Frame thickness

25 ~ 50mm

Screen fixing

4 point cylinder lock plate

Screen stand

Immobilization

Gap between screen and desktop

0 to 15mm

Screen automatic cleaning

(Optional)
