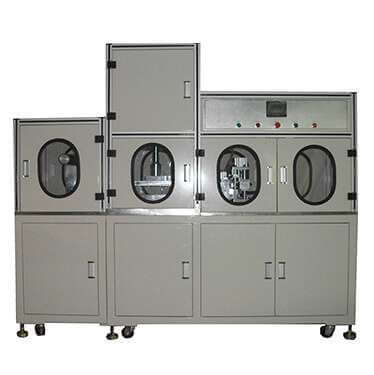

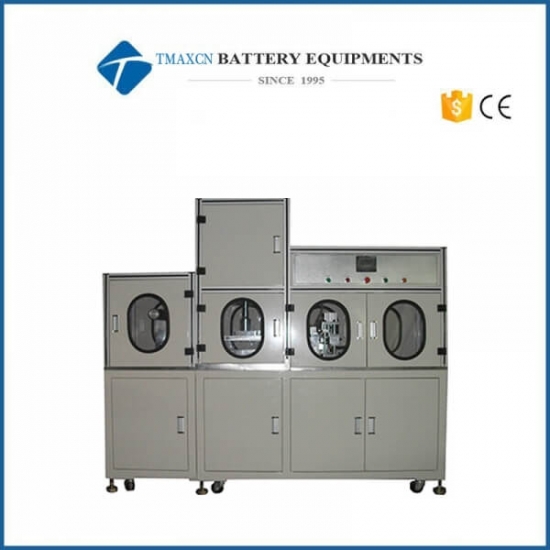

Automatic Aluminum Laminated Film Forming Machine for Pouch Cell Battery
Model Number:
TMAX-pouchformingCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Turntable type vacuum sealing machine for lithium ion pouch batteryNext:
High quality battery separator machine for lithium ion battery separator soaking and coating
Product Details
Automatic Aluminum Laminated
Film Forming Machine for Pouch Cell
| Main technical parameters |
TMAX-AP001 |
TMAX-AP002 |
| Size(L*W*H) |
700*2250*1860mm |
1000*3800*1900mm |
| Weight |
870kg |
1200kg |
| Applicable aluminum-plastic film area |
Max:380*200mm |
Max:600*350mm |
| Thickness of aluminum film |
0.11-0.2mm |
0.11-0.2mm |
| Depth of stamping pit |
Single pit<6mm |
Single pit<6mm |
| Speed of stamping shell |
200-450pcs/H |
100-240pcs/H |
| Cylinder pressure |
10T |
30T |
| Stamping mode |
Air cylinder |
Servo |
| Power source |
AC220V 0.5KW |
AC220V 3.8KW |
| Gas supply |
0.6-0.7Mpa 40L/S |
0.6-0.7Mpa 40L/S |
