Heat Shrink Wrapping Machine

Automatic 32650 PVC Heat Shrink Wrapping Machine For Cylindrical Battery

  • Model Number:

    TMAX-SC-TC01
  • Type:

    Automatic
  • Input Power:

    ≤5KW
  • Dimension(L*W*H):

    2000(L)×900(W)×1700(H)mm
  • Net Weight:

    600kg
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

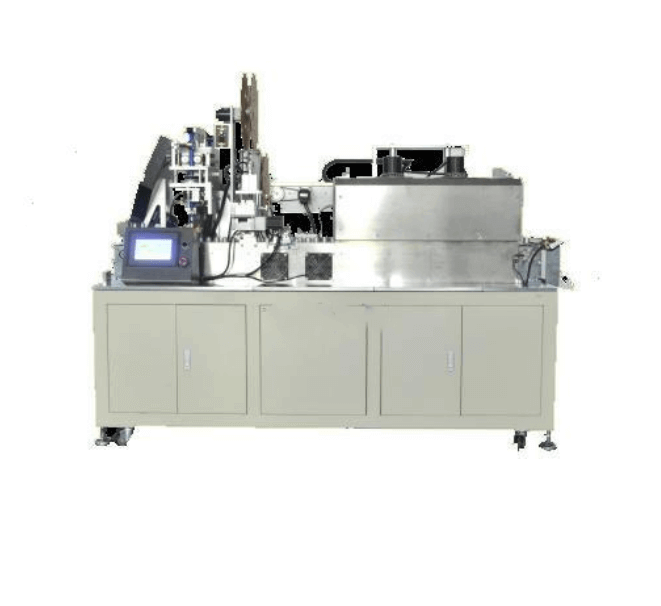

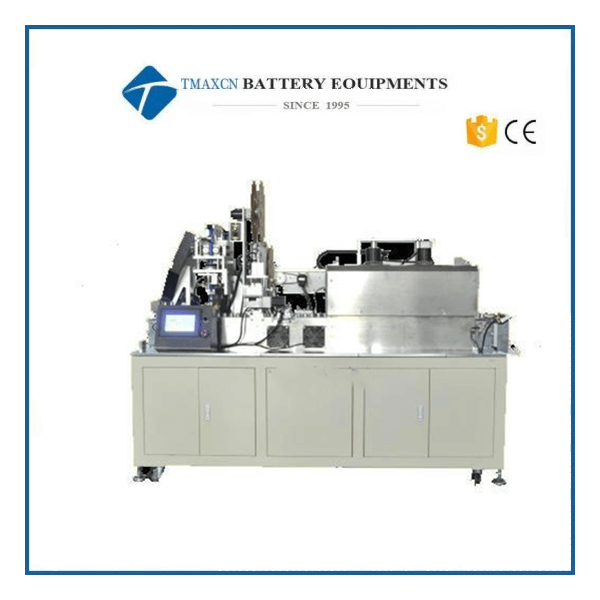

Automatic 32650 PVC Heat Shrink Wrapping Machine For Cylindrical Battery



FEATURE

The cylinder battery laminating machine is a kind of automatic equipment which is used for laminating of cylinder battery, punching and placing insulating gasket and heat shrinkable standard. This equipment can pack about 3300 electric cores per hour, and the structure design is simple and generous, and the performance is stable. In the market, up to now, it is one of the most cost-effective integrated standard equipment



Technological process

The parameter setting is completed through the touch screen, and the following functions are automatically completed by PLC: manual loading of battery core→ feeding by motor + cylinder → battery delivery by chain → battery core correction + servo labeling → laminating surface pad → correction again → spinning feeding + tunnel furnace heat shrinking → the first turning of air cylinder → loading by belt running → the second turning of air cylinder (feeding groove of finished battery core) → feeding and discharging groove; equipment allocation Sound light alarm is set.Operation parameters can be set according to the actual requirements


Structure

1) The structure of the equipment is compact and reasonable, the appearance is beautiful, and the occupied space is small.



2) The equipment is easy to operate, and workers can easily master it without professional training.



3) The equipment is controlled by PLC, which is responsible for battery feeding, labeling, laminating surface pad, heat shrinkable insulation skin, easy to learn, high efficiency, labor cost saving, and good product performance.



4) The equipment and materials are made of high-quality thick cold-rolled sheet metal and aluminum profile frame.



5) The equipment is equipped with universal casters, which makes it easy to move and handle the equipment.



SPECIFICATION

Power Supply

AC 220V±10%/50Hz,  Power≤5KW

Working air source

0.5~0.6Mpa

Suitable for

32650 etc cylindrical cell

Productivity ≥ 55PPM

Qualified rate

≥ 98%

Weight

600kg

Size

2000L×900W×1700Hmm
