Heat Shrink Wrapping Machine

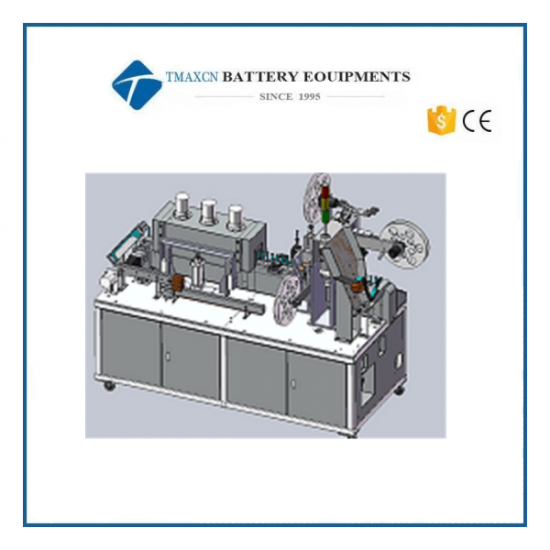

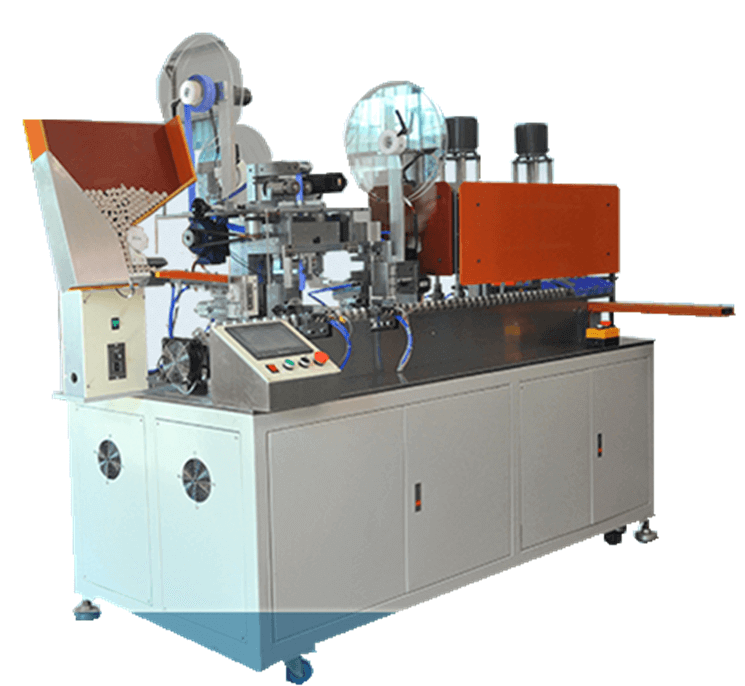

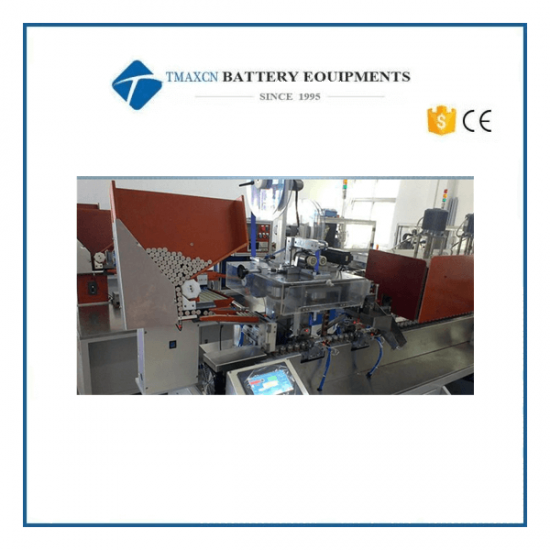

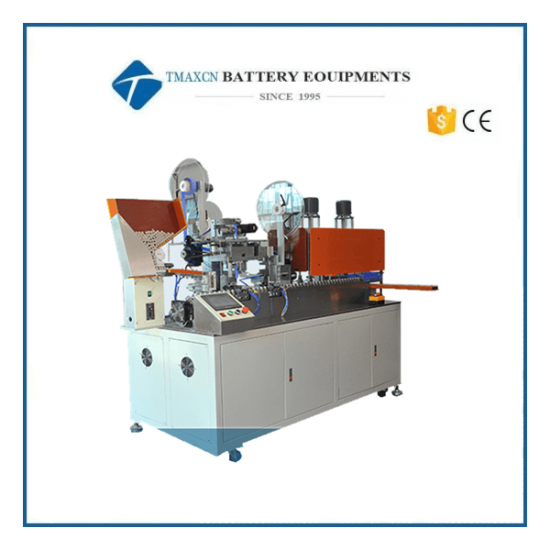

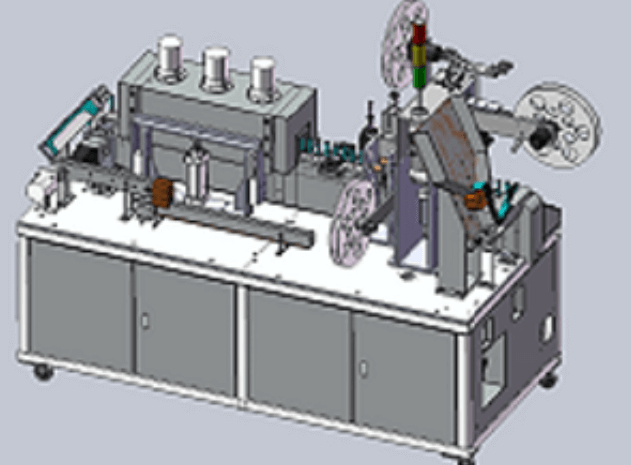

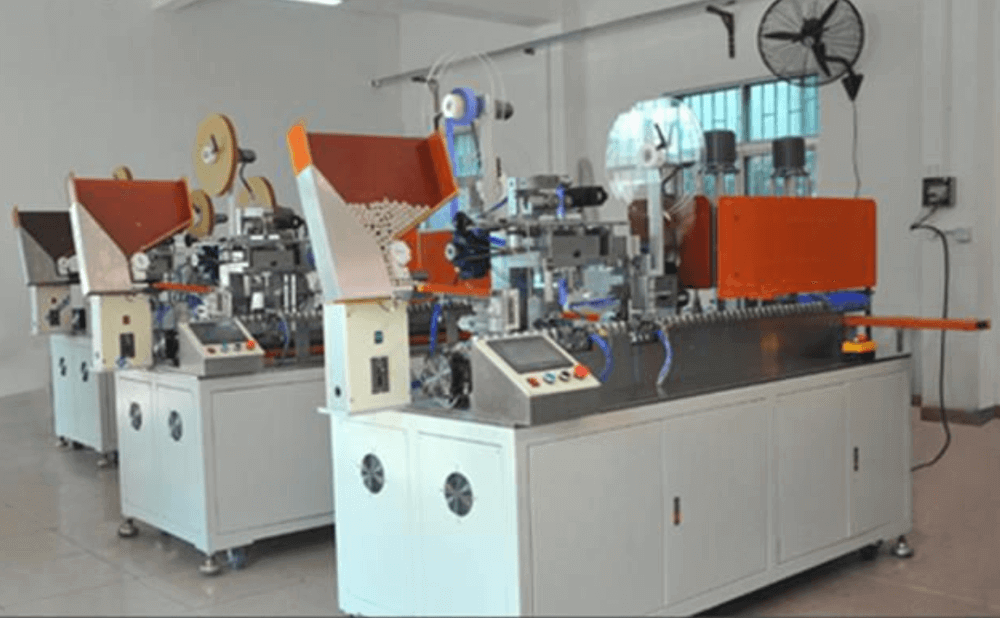

Automatic 18650 PVC Heat Shrink Wrapping Machine for Cylindrical Battery

  • Model Number:

    Tmax-Shrinking
  • Type:

    Automatic
  • Input Power:

    9KW
  • Dimension(L*W*H):

    2100(L)*950(W)*1600(H)
  • Net Weight:

    800KG
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • Place of Origin:

    China
  • Shipping Port:

    Xiamen port
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


 Automatic 18650 PVC Heat Shrink Wrapping Machine for Cylindrical Battery


Ⅰ、Feature

1. High efficiency: the film efficiency is 50PCS/MIN. It is 6~10 times of artificial efficiency;


2. High safety performance: stable, efficient, and safe and reliable operation; With automatic alarm function;


3. Highly intelligent: the humanized operation interface is convenient for manual operation, the fault is automatically alarmed, and the fault point is clear at a glance;


4. Simple operation and maintenance: the personnel can operate the equipment with a little training, and the maintenance is relatively simple;


5. High flexibility of equipment: After replacing the fixture and mold, it can be adapted to cylindrical batteries such as AA, AAA and 18650.


Ⅱ、Specification

Model

Tmax-Shrinking

Specification

 AA,AAA,18650

Film speed

 50PCS/MIN

Film precision

 ±0.1MM

Power supply

 380V/220V

Air pressure

 0.5~0.7Mpa

Power

 9KW

Weight

 600KG

Machine size

 3100(L)*900(W)*1800(H)

Casing requirements

The width of the coil is 29.7±0.2mm, and the thickness of the single layer is 0.08±0.01mm.

Insulation sheet coil size

width between 20 ± 0.1mm (no material break and tape interface in the middle of the coil)

Insulation sheet die size

Outer diameter 17.4 ± 0.1 mm; inner diameter 10.5 ± 0.1 mm; inner and outer diameter concentricity ± 0.10 mm

Heat shrinkable bottom edge size

2.5mm ± 0.3mm (size error is related to casing material and baking conditions)
