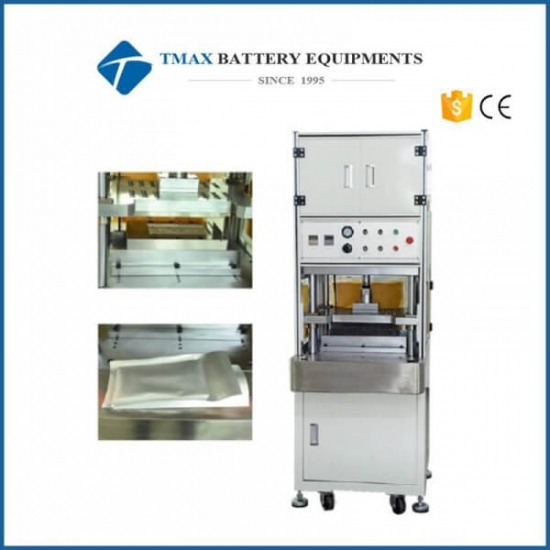

Aluminum laminated film punching machine for Lithium ion pouch cell

Model Number:
TMAX-SCX-400
Dimension(L*W*H):
400*300mm(L*W), customized
Net Weight:
About 500kg
Compliance:
CE Certified
Warranty:
One Year limited warranty with lifetime support
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Next:
Automatic electrode forming machine for lithium ion battery production line

Product Details

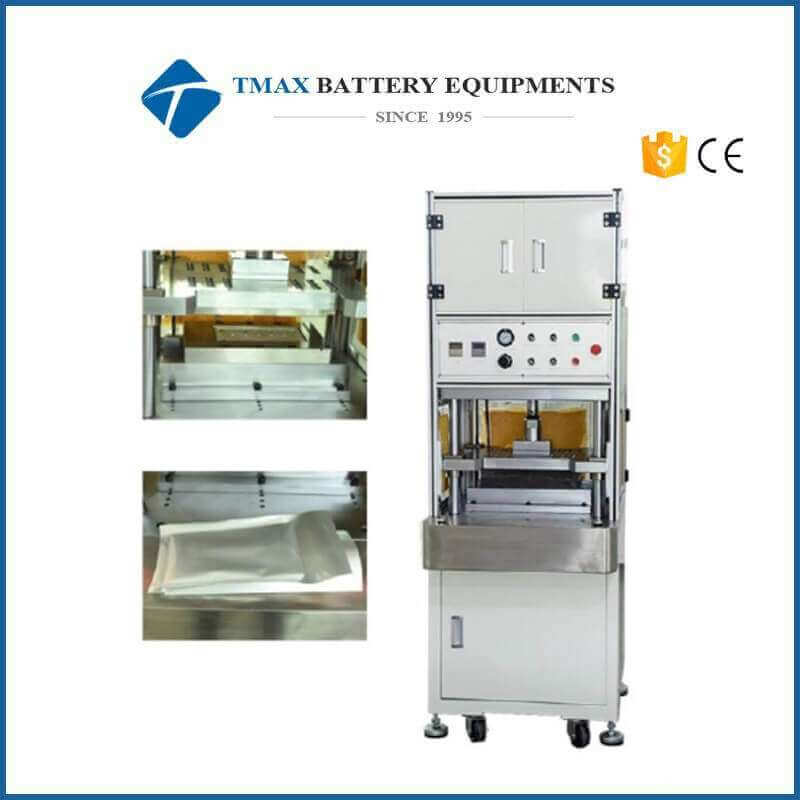

Aluminum laminated film punching machine for Lithium ion pouch cell

DESCRIPTION:

1 TMAX-SCX-400 Manual Aluminium Punching Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.

2 The machine is used to prepare polymer cases made of Aluminum Laminated Films.

3 This pouch forming machine is mainly used for lithium battery production line, it's mold can be bespoked according to customers' requirements.

Model	Manual Aluminium Punching Machine TMAX-SCX-400
Source voltage	AC 220V/110V, 50/60HZ
Power	500W
Warranty	One year limited warranty with lifetime support
Suitable aluminum film thickness	0.1-0.2mm
Suitable aluminum film size	400300mm(LW), customized
Output	200-500EA/H
Output pressure	0-5T, Adjustable
Air source	0.5-0.7MPa
Mold materials	S136 Die steel
Dimension(LWH)	7006501900mm
Weight	About 500kg
Package Dimension (LWH)	8007502080mm
Package Weight	600kg
