Ultrasonic Welding Machine

Al Tab Ni Tag Ultrasonic Welding Machine for Lithium Battery

  • Model Number:

    TMAX-GN-2118
  • Input Power:

    10KVA
  • Dimension(L*W*H):

    800x580x1100mm
  • Net Weight:

    58kg
  • Compliance:

    CE Certified/NRTL Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

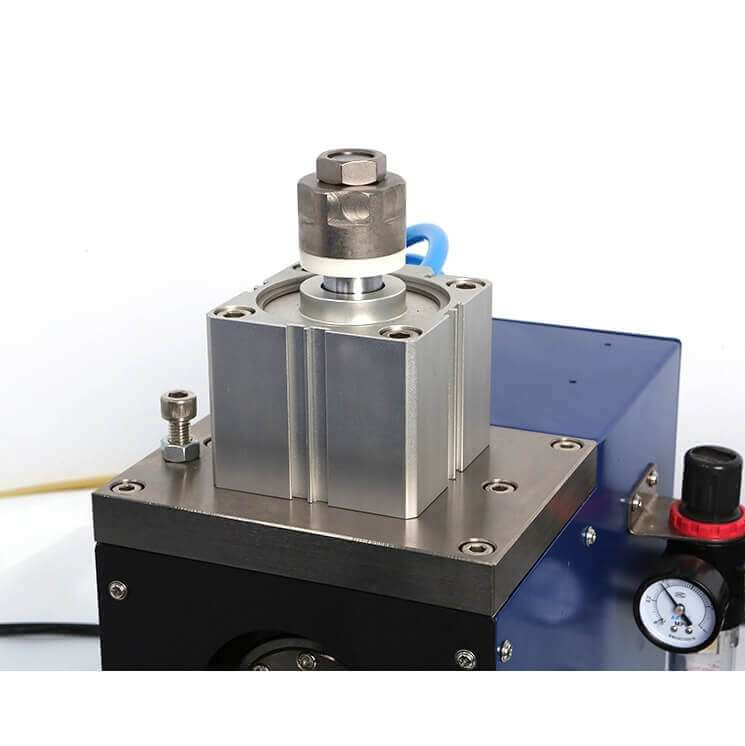

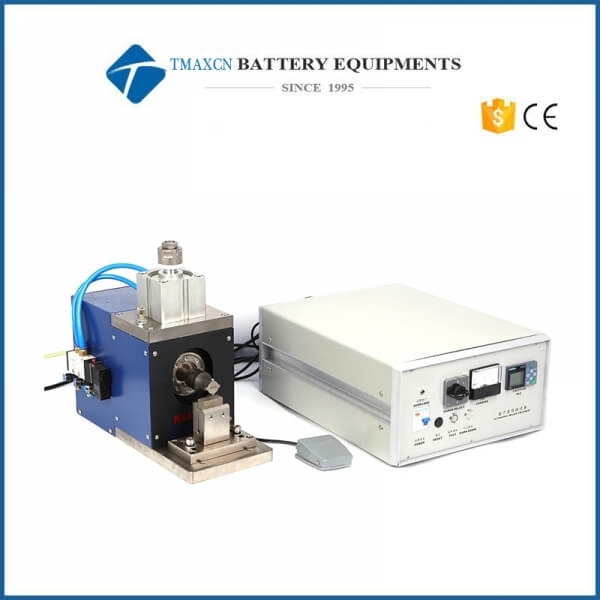

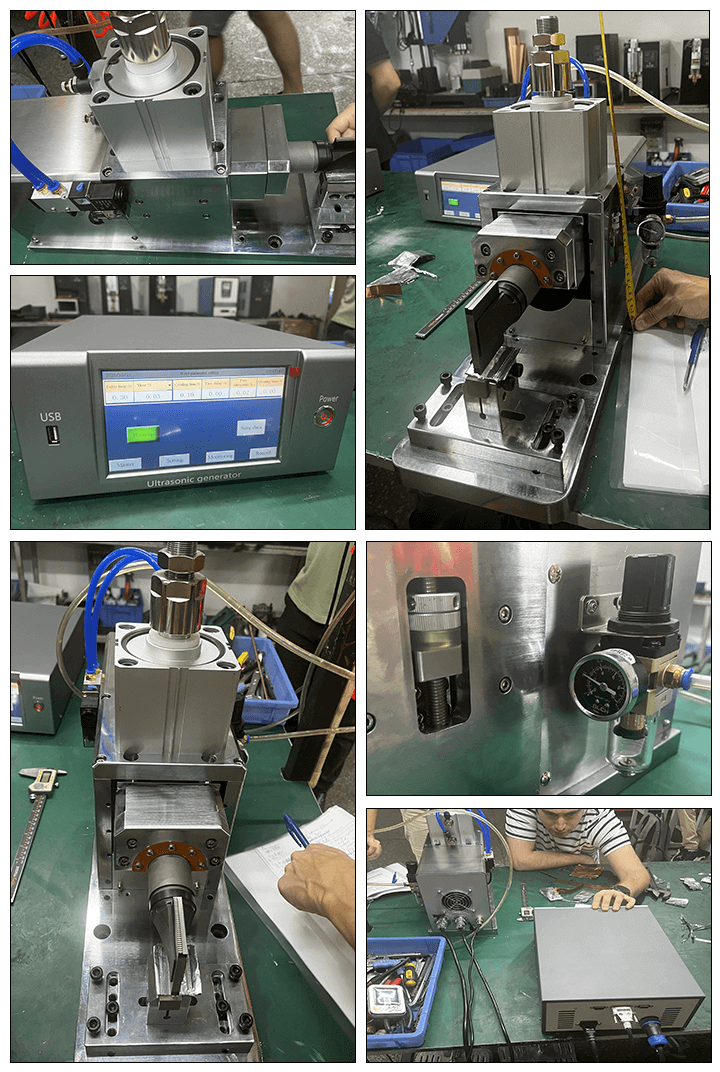

Al Tab Ni Tag Ultrasonic Welding Machine for Lithium Battery


time: <1S

Thickness: 3mm
For both cathode and anode welding

materials: Al&Ni tabs



1. Main Technical Data:

1) This ultrasonic spot welder is worked through solid phrase weld, and the weldments are effected by high-mode vibration and the stress of all the work pieces.

2) Max output power:1000VA

3)frequency: 25KHZ±10%

3) input voltage:220V±10%

4) air supply:pressure 0.4~0.6Mpa,humidity less than 48%,high temperature not exceed 45°C.

5) control way:CPU

6) working stroke:15mm

7) welding time:less than 1S

8) welding ability: aluminum   below 0.3mm

9) Size:    L×W×H(mm): Welding Head:420mm x180mm x290mm

 Main Case:480mm x365mm x202mm


We are committed to providing high quality Ultrasonic Welding Machine for you.
