Discharging Testing Machine

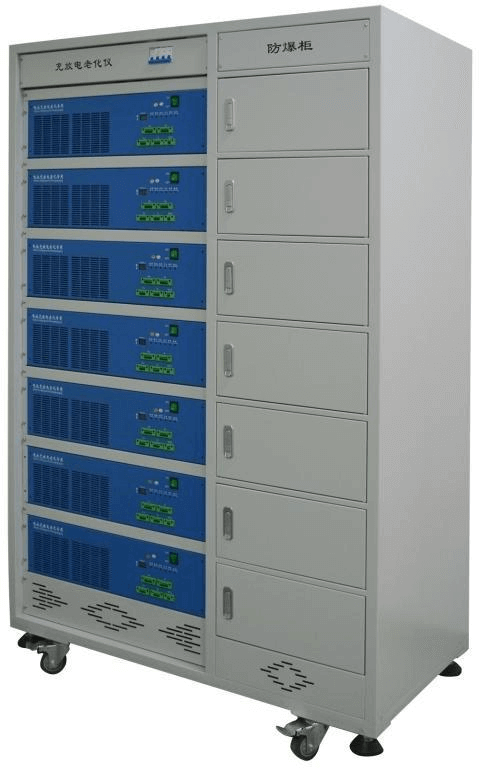

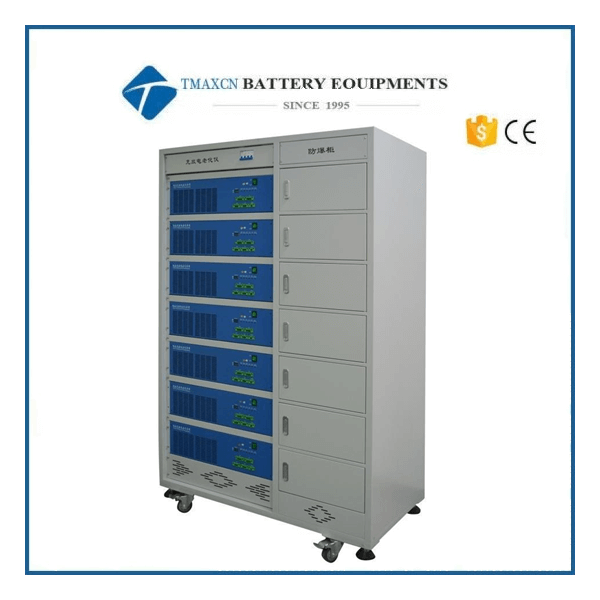

85V 10A 20A Battery Charging&Discharging Testing Equipment&Aging Cabinet

  • Model Number:

    TMAX-AG85
  • Input Power:

    ≤1400W
  • Dimension(L*W*H):

    1230*600*1820mm
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Place of Origin:

    China
  • Update:

    Optional
  • Shipping Port:

    Xiamen Port
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details



85V 10A 20A Battery Charging&Discharging Testing Equipment&Aging Cabinet



1.Equipment Application Scope and Function Introduction
1.1Scope of application:
The charge discharge test equipment is mainly used for the charge discharge cycle
test of lithium battery.


1.2Test Items:

Battery charging protection voltage, discharge protection voltage, capacity, etc. The
equipment has four test steps: charging, discharging, shelving and cycling. By editing
the corresponding steps, the battery can be tested according to the set process.


2.Main Performance of Test Equipment:

2.1 Charge Discharge Function:
It has constant current and constant voltage charging function and constant current
discharge function. It can charge and discharge the battery and record the battery
capacity.


2.2 Charge Discharge Interface:

Fully meet the requirements of battery pack charging and discharging same port and
charging and discharging sub port, i.e. 2 wires (P+ P -) and 3 wires (P+ P- C-)At
the same time, it can aging the electric tool battery with positive plate charging
protection and negative plate discharge protection(CH+ P+ P-).


2.3 Check Voltage Protection:

By charging and discharging the battery, check whether the charging protection and
discharge protection of the battery work.


2.4 Safety Protection:

Anti reverse connection protection function; Upper and lower voltage limit protection;
Safe discharge current protection.


2.5 Online mode:

If the instrument is single or less than 5, it can be connected to PC through serial port;
When more than 5 sets adopt the network connection mode, the PC only needs toprovide a network port to control less than 60 sets of instruments.


2.6 Control System:

The software system adopts the classic and mature C / S mode, and the
communication modes include serial port and network. The serial port can realize the
accurate communication of several instruments in a short distance, and the network
can realize the accurate communication of multiple instruments in a long distance.


2.7 Upper Computer Software:

Based on the Windows operation interface, the SQL database is used to store the test
data, which is very convenient for the staff to query and export the data online. The
charge discharge aging curve can be viewed according to the battery bar code, time
and equipment number, and the curve can be exported at the same time.


3.Technical Parameters

Input Power

AC 220V ±10% / 50Hz

Voltage

Measuring Range

7.5~85V



Accuracy

±(0.2% of reading + 0.2% of range)

Current

Charging Range

50~10000mA



Charging Accuracy

±(0.2% of reading + 0.2% of range)



Discharge Range

50~20000mA



Accuracy

±(0.2% of reading + 0.2% of range)

Charge

Constant Voltage Cut-off Current

Minimum 50mA

Capacity

Accuracy

±1

Power

Discharge Power

1400W

Time

Patrol Inspection Time

Real time receiving < 2S



Timing Range

0 ~ 999 hours / work step

Data Recording Interval

5S

Median Machine Version

1.1 series

Charge

Charging Mode

Constant current and constant voltage charging



Cut off Condition

Voltage, current, relative time, overcharge protection

Discharge

Discharge Mode

Constant current discharge



Cut off Condition

Voltage, relative time and over discharge protection

Cycle

Cycle Measurement Range

1 ~ 999 times



Number of Single Cycle Steps

100

Voltage and Current Detection Sampling

Four wire sampling

Database

Using SQL database to manage test data

Host Computer Communication Mode

Based on TCP / IP protocol and serial port

Data Output Mode

Excel, TXT, Chart

Communication Interface

Network port

Number of Channels Per Cabinet

7 channels, 7 rows and 1 column



4.Product Structure

Chassis Size

W*D*H600*450*170mm

Cabinet Size

W*D*H1230*600*1820mm

Discharge Battery Space Size

W*D*H370*600*170mm

Number of Modules

Up to 7 channels supported


5.Test Software Interface:

5.1 Main Interface:

charge and discharge tester

5.2 Scheme Setting Interface:

battery tester

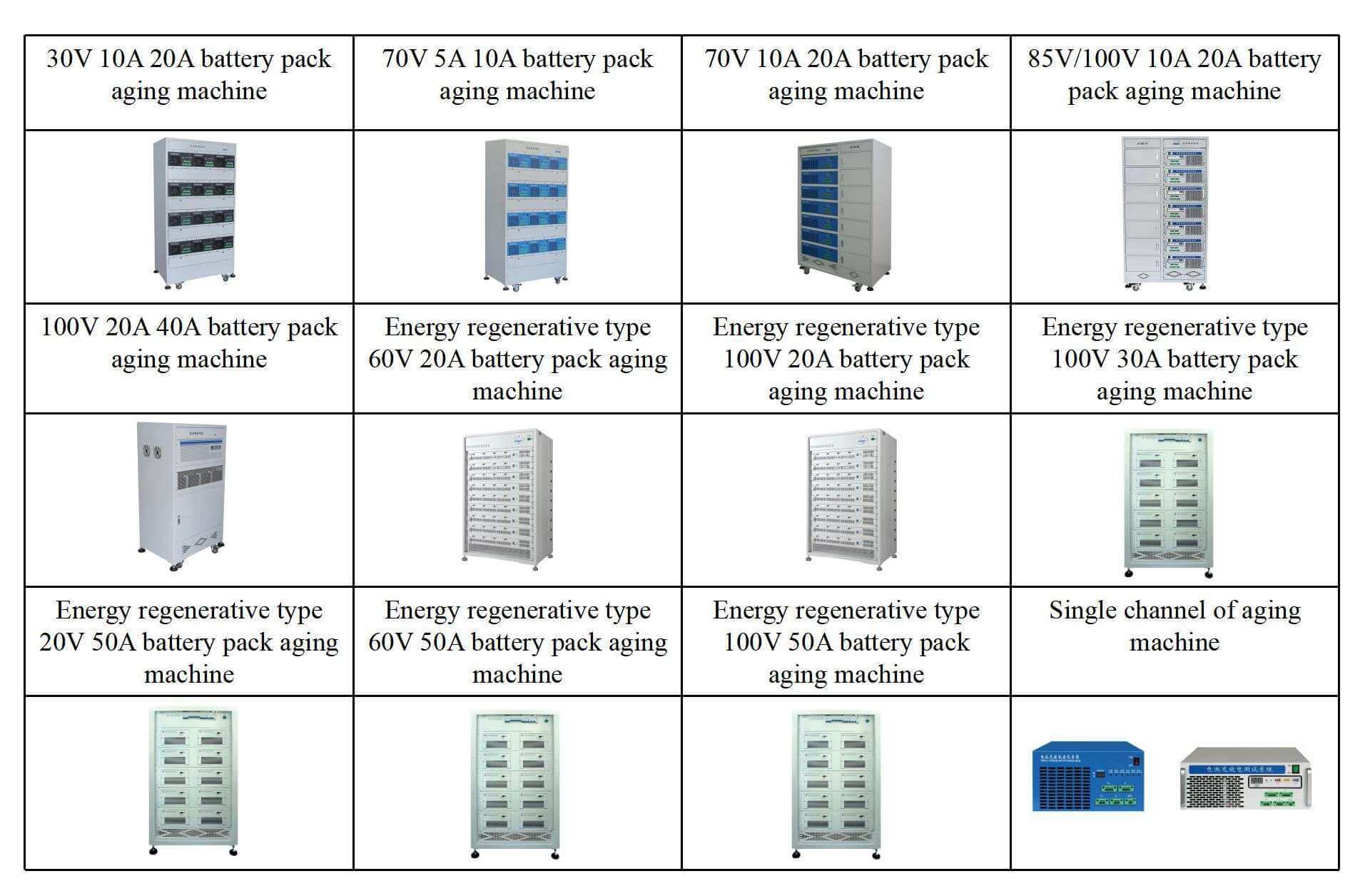

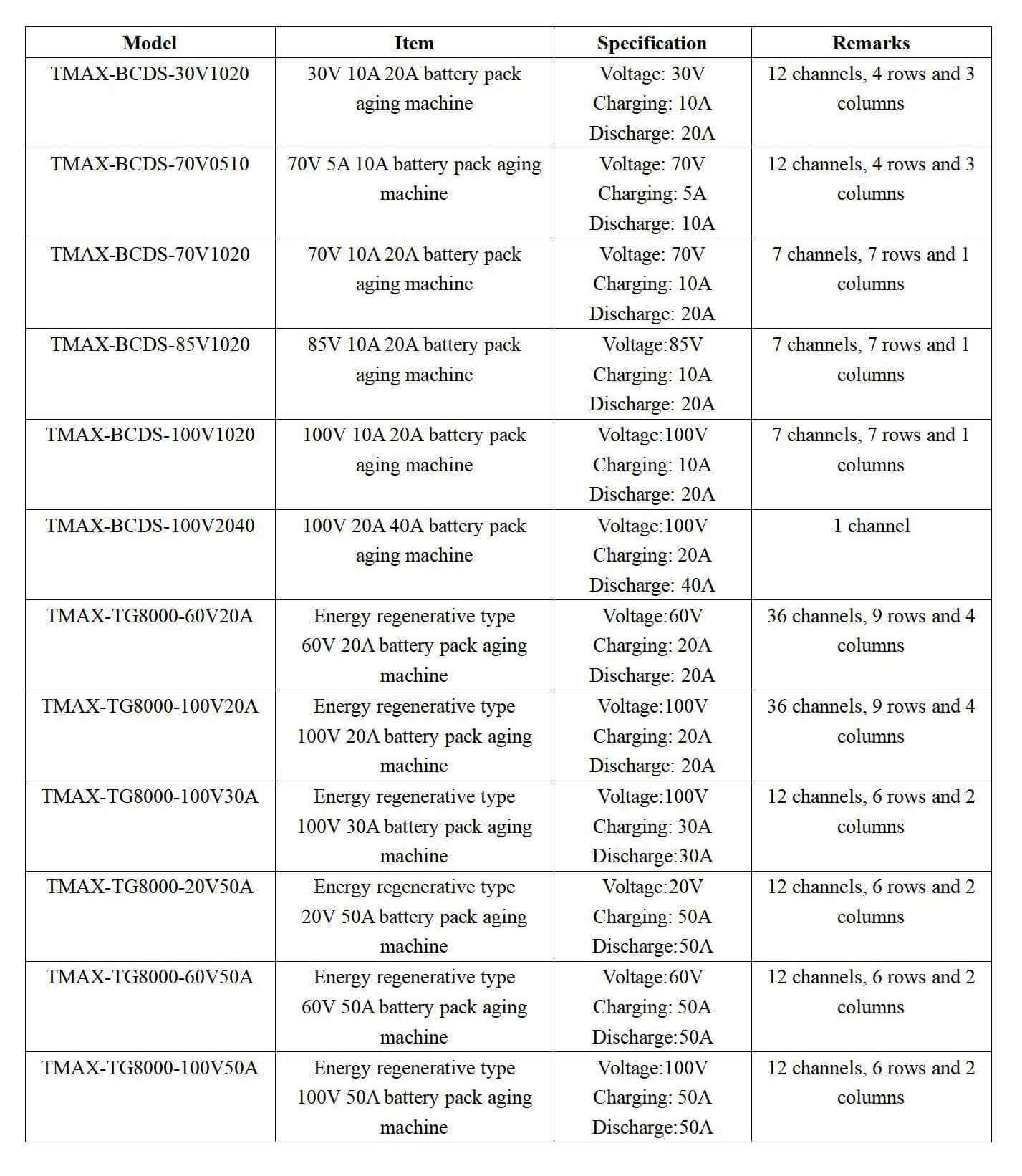

6. Selection of battery pack charge and discharge aging machine:





 tester
