700mL Vacuum Planetary Centrifugal Mill & Mixer with Two Jars & Independent Speed Controlled
Model Number:
TMAX-TP700SDimension(L*W*H):
540L*550W*740HNet Weight:
130KGCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
1100mL Vacuum Planetary Centrifugal Mill for Lithium Battery& Mixer with Two jars & Independent Speed Controlled & Mixer with Two jarsNext:
300mL Vacuum Planetary Centrifugal Mixer with Two Containers & Optional Independent Speed Control

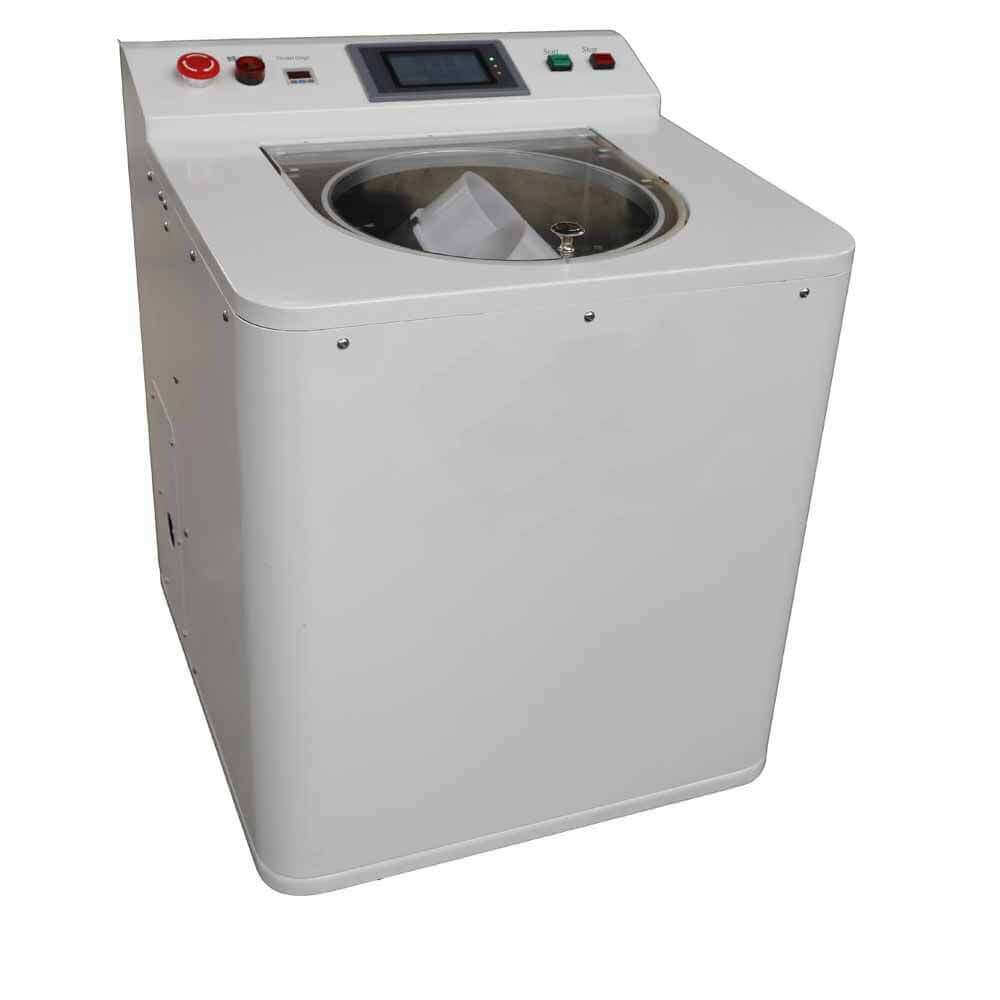

700mL Vacuum Planetary Centrifugal Mill & Mixer with Two Jars & Independent Speed Controlled
The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.
Name |
700mL Vacuum Planetary Centrifugal Mill & Mixer |
Equipment model |
TMAX-TP700S |
Container Capacity |
700ml*2（Cup) |
The optimal capacity of mixing material |
20-400ml*2（Cup) |
Operation Type |
Human-machine Interaction Mode |
Revolution Speed |
100-2000RPM |
Rotation Speed |
Invariablenes |
Vacuum |
60升/ Minute. About -98KPa 60/Minute. APROX.-98KPa |
Storage Program |
5 storage programs (each program can be set to five steps) |
Protection |
Door Cover, Breakdown, Overload |
Dimension (mm) |
540L*550W*740H |
Voltage |
0.5-1.0KW,220V |
Weight |
130KG Net Weight:95KG |
Power Supply |
(Uniphase),AC220V.50-60Hz |

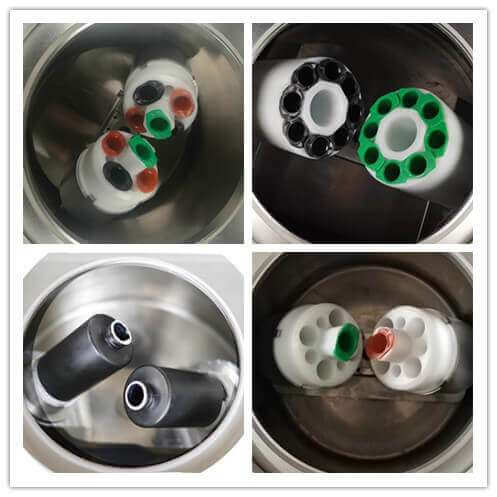

Clamp |
Option |
Syringe |
Max50CC |
