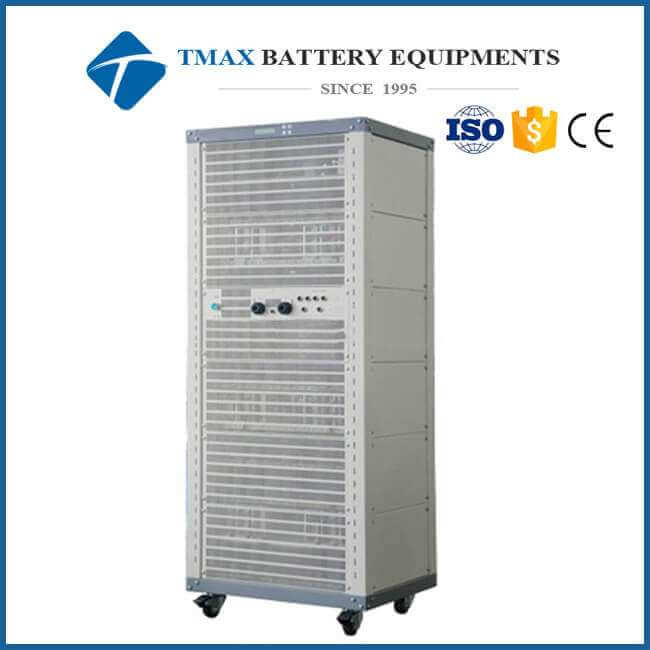

60V50A 2 Channel Electric Car Battery Pack Capacity Tester
Model Number:
TMAX-BTS-60V50AInput Power:
7848WDimension(L*W*H):
606*606*990(mm)Compliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
5V6A 256 Channel Li Ion Battery Capacity Tester For Pilot lineNext:
20V10A Battery pack tester analyzer with 8 Channel
60V50A 2 Channel Electric Car Battery Pack Capacity Tester
SPECIFICATIONS
1 TMAX-BTS-60V50A Battery
test system is mainly used for Electric Car battery pack testing, it can test
lithium battery pack voltage up to 60v with Max current 50A.
2 It can
also test battery pack with protect board (PCB/PCM)
Project
index |
Parameter
index |
|
Input
Voltage |
AC 380V
±10% / 50Hz |
|
Resolution |
AD:15bit;DA:12bit |
|
Input
Resistance |
≥1MΩ |
|
Input
Power |
7848W |
|
Channel
Features |
Constant
Current Source and Constant Voltage Source with Independent
pairs of Closed-loop Structure |
|
Channel
Control Mode |
Independent
Control |
|
Voltage |
Per
Channel Voltage Range |
Charge:300mV~60V;Discharge:2.5V~60V |
Discharge
Min Voltage |
2.5V |
|
Accuracy |
± 0.1%
of FS |
|
Stability |
± 0.1%
of FS |
|
Current |
Per
Channel Current Range |
250mA~50A |
Accuracy |
± 0.1%
of FS |
|
Stability |
± 0.1%
of FS |
|
Power |
Per
Channel Output Power |
3000W |
Stability |
± 0.2%
of FS |
|
Time |
Current
Response Time |
The
Current rise Response Time is 20ms |
Step
Time Range |
1s≤single
step time range≤365*24h, |
|
Data
Recording |
Record
Condition |
Lower
sampling time: 100ms |
Lower sampling Voltage: 150mV |
||
Lower sampling Current: 5mA |
||
Record
Frequency |
10Hz |
|
Charge |
Charge
Mode |
Constant
Current Charge,Constant Voltage Charge, |
End
Conditon |
Voltage,Current,Relative
Time,Capacity |
|
Discharge |
Discharge
Mode |
Constant
Current Discharge |
End
Condition |
Current,Relative
Time,Capacity |
|
Cycle |
Loop
Measure Range |
1~65535
times |
Per Loop
Step No. |
254 |
|
Nested
Loop |
Nested
loop Function,Max Support 3 Layers |
|
Protection |
Software
Protection |
Power-down
Data Protection |
Off-line
Testing Function |
||
Setting
Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage
limit,Low Current limit,Upper Current limit,Delay Time |
||
Hardware
Protection |
Additional
Avoiding Protection Model |
|
Voltage
and Current Testing Sample |
4-wire
connecting |
|
Noise |
<80dB |
|
Database |
MySQL
Database |
|
A Means
of Communication of Upper Machine |
TCP/IP
Protocol |
|
Data
Output |
EXCEL,TXT,Graph |
|
Operation
system |
Office
2010, Win 7 system |
|
Communication
Interface |
Ethernet
Port |
|
Per Unit
Main Channels No. |
1 |
|
Dimensions |
18U,W*D*H:606*606*990(mm) |
