Hot Press

60T Double Plate Manual Hot Press

  • Model Number:

    TMAX-RYJ-600D1
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

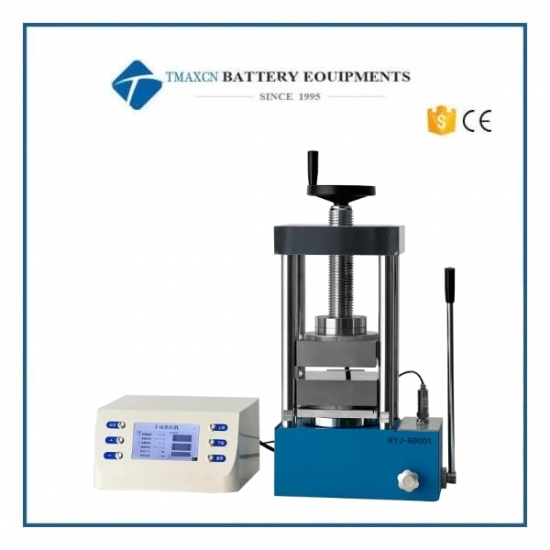

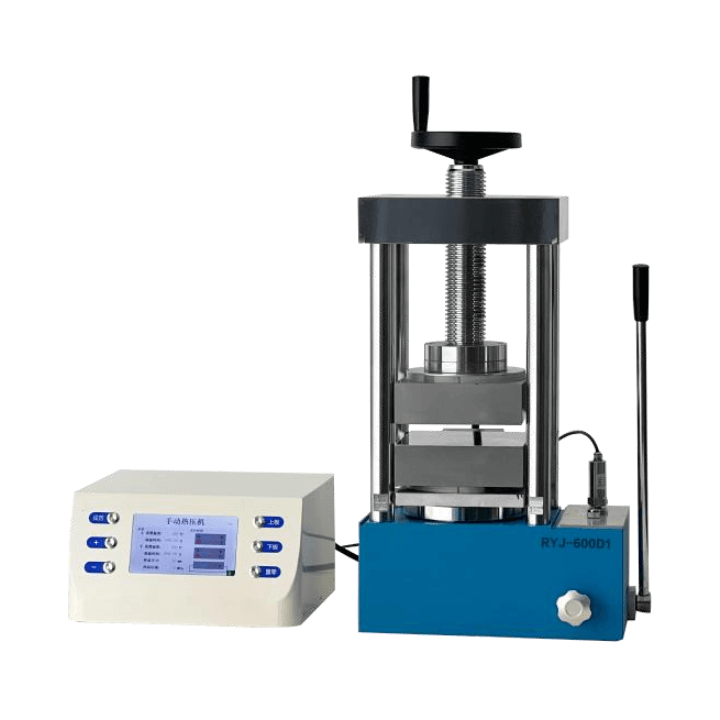

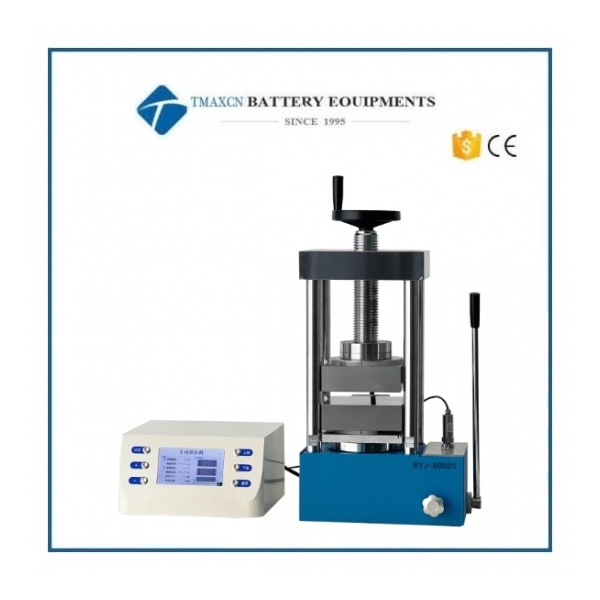

60T Double Plate Manual Hot Press


  Hot Press



Equipment introduction:

This series of double plate hot presses is designed along the same lines as the RYJ-600C model, with the option of with a 30t (or 60t) larger tonnage press, with a wider working space It is suitable for the hot pressing test of larger objects.

Main technical parameters:

Equipment type

RYJ-600D1

Pressure range

0-60T  (0-33MPa)

Piston diameter

Ф150mm Chrome plated cylinder

Max. piston stroke

50mm

Pressure gauge type

Pointer type, dual scale display for pressure and pressure, range 0-40MPa, display accuracy 1Mpa

Pressurisation method

Manual pressurisation

Thermostat type

XNNETS PLC programmable temperature control instrument

Temperature control range

Room temperature - 600.0°C / Accuracy 0. 1°C

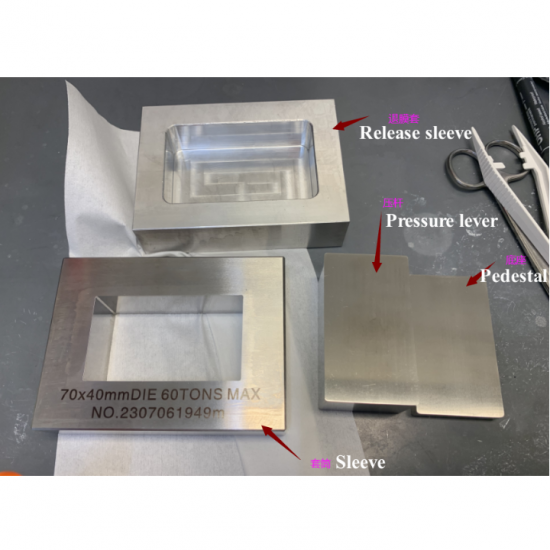

Type of hot press mould

Double flat plate heating and pressing - top plate screw suspension - polished panel

Hot pressing mould dimensions

Width 180 x 180mm

Hot pressing mould temperature

Room temperature -300.0°C

Mould cooling method

Natural cooling or water cooling cycle for fast cooling

Equipment insulation method

Imported heat insulation plate

Power supply

220V/ 1000W

Overall structure

Separate structure

Main machine size

405×260×525mm (without kit)

Equipment weight

Approx. 180-200kg

Model Description

Water cooler option, with XNNETS "S" digital pressure gauge, display accuracy 0.01Mpa, more accurate pressure control
