5V50mA Battery Tester

5V50mA Battery Tester for Coin Cell Button Battery testing

  • Model Number:

    TMAX-5V50mA
  • Input Power:

    30W
  • Dimension(L*W*H):

    250*200*60mm
  • Net Weight:

    12kg
  • Compliance:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details



5V50mA Battery Tester for Coin Cell Button Battery testing


SPECIFICATIONS:

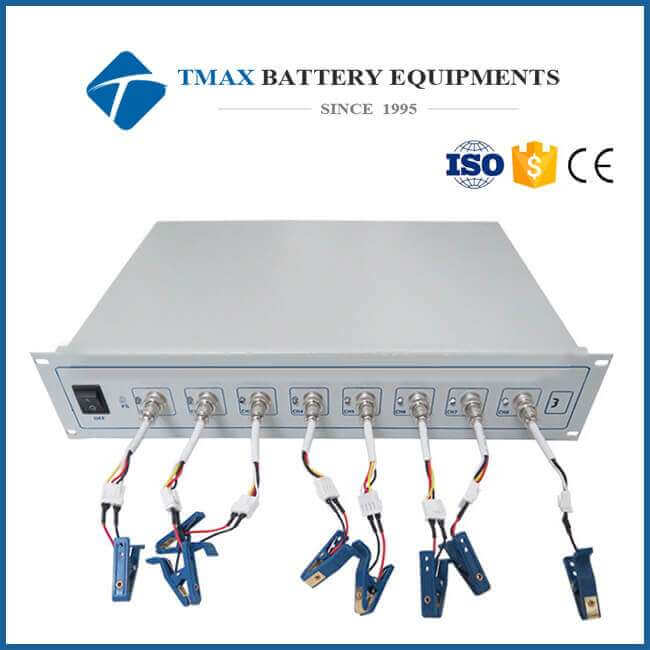

1 TMAX-5V50mA Battery Test Equipment is an eight-channel battery analyzer to analyze small coin cells with a range current 0-50mah, voltage 0-5v. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.

2 This coin cell tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.

3 The coin cell tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn

watch battery and so on.

Machine model

8 Channels Battery Test Equipment TMAX-5V50mA

Source voltage

110v to 220v 50/60HZ

Power

30W

Current range

0-50mA 0.05%RD±0.1%FS (control and measurement)

Voltage range

0-5V 0.1%RD±0.1%FS (control and measurement)

Cycles

9999cycles

Contents of step

Constant current c/d , constant voltage c/d, constant power discharge,

constant resistance discharge, DCIR,rest

Conditions of constraint

Time, voltage, current, capacity, etc.20 kinds

Protection modes

Overvoltage, under voltage, over current, under current, over capacity, etc.

Programming steps

Unlimited (more than 200 steps)

Channels

Eight independent programmable channels

Each channel can set different working modes and functions independently

Output mode

4 electrode (supporting reference electrode test)

Software

1 The software with calibration function is included to set various working modes for measuring capacity and life cycle for all types of rechargeable batteries

2 Working modes Include constant current discharge, constant current charge,constant voltage charge, rest, etc

3 Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc

4 With real-time monitoring windows and integrated graph/data windows,the testing process can be observed more directly and efficiently

5 The calibration software can be used to calibrate the analyzer

Testing report and curves

1 Different types of curves can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve,loops times-charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)

2 Data reports are created by software.

3 User can easily compare the performance of the batteries tested in channels both visually and statistically

Dimension

250*200*60mm

Weight

12kg
