5V1A lithium ion battery tester
Model Number:
TMAX-5V1AInput Power:
71WDimension(L*W*H):
485* 508*263mmNet Weight:
11.5 kg (26 lbs)Compliance:
CE CertifiedWarranty:
2 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
5V30A High Current Lithium Battery Tester For Power BatteryNext:
Li-ion Battery Tester 5V3A Battery Capacity Tester

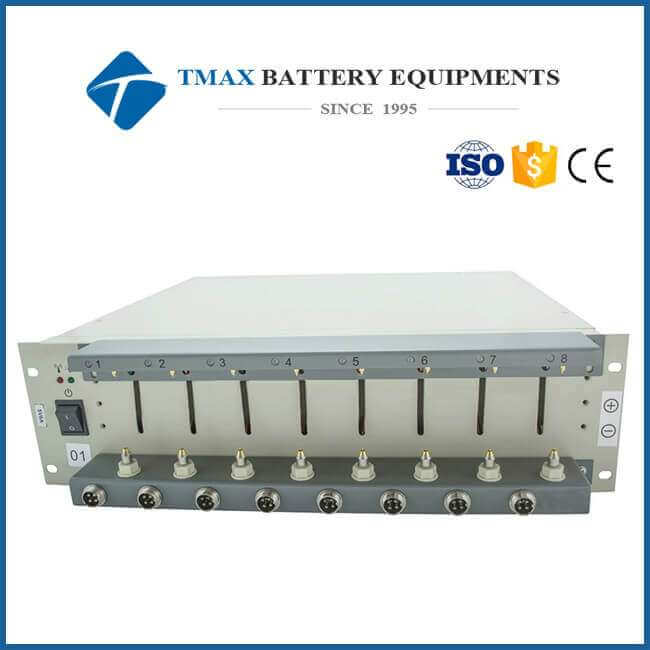

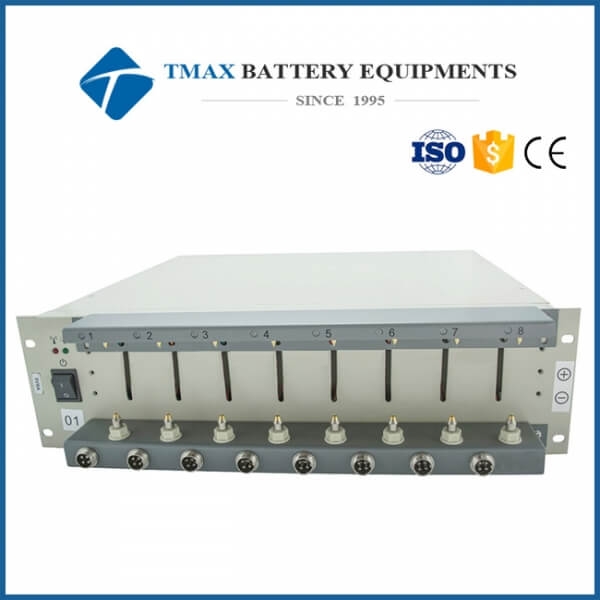

5V1A lithium ion battery tester
SPECIFICATIONS:
TMAX-5V1A Battery
Tester is an eight-channel battery analyzer to analyze, voltage 0-5v. Each
channel of the analyzer has independent constant-current and constant-voltage
source, which can be programmed and controlled by computer software. Learn more about Battery Capacity Tester here!
Model |
TMAX-5V1A |
|
Input Power |
AC 220V ±10% / 50Hz |
|
resolution |
AD:16bit;DA:16bit |
|
Input Resistance |
≥1MΩ |
|
Input Power |
71W |
|
Channel Features |
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure |
|
Channel Control Mode |
Independent Control |
|
Voltage |
Per Channel Voltage Range |
0-5V |
Min
discharge Voltage |
0V |
|
Accuracy |
± 0.05% of FS |
|
Stability |
± 0.05% of FS |
|
Current |
Per Channel Current Range |
0.005A-1A |
Accuracy |
± 0.05% of FS |
|
Stability |
± 0.05% of FS |
|
Power |
Per Channel Output Power |
5W |
Stability |
± 0.1% of FS |
|
Time |
Current Response Time |
20ms (0-Full Range) |
Step Time Range |
≤(365*24 )hour/step, Time Form Support 00:00:00(h,min:s,ms) |
|
Data Recording |
Record Condition |
Minimum Time Interval: 100ms |
Minimum Voltage Interval: 10mV |
||
Minimum Current Interval : 2mA |
||
Record Frequency |
10Hz |
|
Charge |
Charge Mode |
Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge,CPC |
End Conditon |
Voltage,Current,Relative Time,Capacity,-ΔV |
|
Discharge |
Discharge Mode |
CCD,CPD,CRD |
End Condition |
Voltage,Current,Relative Time,Capacity,-ΔV |
|
Pulse |
charge |
CCC |
Discharge |
CCD |
|
Min Pulse Width |
500ms |
|
Automated Switch |
Automated switch from charge to discharge for each pulse |
|
End Condition |
Voltage, Test Time |
|
DCIR |
Support
DCIR testing |
|
Cycle |
Loop Measure Range |
1~65535 times |
Max Steps Per Loop |
254 |
|
Nested Loop |
Nested loop Function,Max Support 3 Layers |
|
Protection |
Software Protection |
l Power-down Data Protection |
l Off-line Testing Function |
||
l Setting Protection Condition,Setting Parameter: Low Voltage limit,Upper Voltage limit,Low Current limit, Upper Current limit,Delay Time |
||
Hardware Protection |
Additional Anti-reverse Protection Model |
|

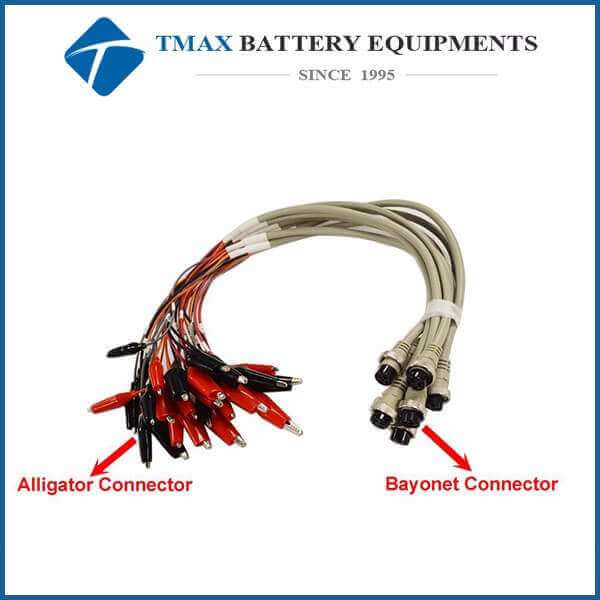

Voltage and Current Testing Sample |
4-wire connecting |
|
Noise |
<85dB |
|
Database |
MySQL Database |
|
A Means of Communication of Upper Machine |
TCP/IP Protocol |
|
Data Output |
EXCEL,TXT |
|
Communication Interface |
Ethernet Port |
|
Per Unit Main Channels No. |
8 |
|
Dimensions
(L*W*H) |
3U,about 500*550*400(mm) |
