5V 100A 4/8/16/32 Channels High Precision Battery Testing Equipment
Model Number:
TMAX-CTS-5V100AInput Power:
500W(single channel)Dimension(L*W*H):
CutomizedCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPlace of Origin:
ChinaMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
30 days
- WhatsApp : +86 13174506016
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
30V 30A 8 Channel Battery Tester for the Power Battery / Battery PackNext:
5V2A 512 Channel Li-ion Battery Charging and Discharging Tester
5V 100A 4/8/16/32 Channels High Precision Battery Testing Equipment
System Features:
1.The single point is independent, and the charging and discharging steps can be set independently for each battery test channel .
2.The accuracy of the equipment is 0 . 05%, the data recording time is 1s/time, the fastest is 0 . 1s/time, and the stability is high .
3.The software has powerful function and friendly man- machine interface .
4.Four wire test interface ensures high measurement accuracy.
5.Modular design concept, easy to maintain .
1 . Equipment Description
The high- precision battery test system is mainly designed for power battery / battery pack, which can meet the performance test requirements of power battery pack . The equipment has the characteristics of high power, high precision and high performance.
2 . Equipment Size
Overall cabinet size (overall size: L*W*H = 700*600*1600mm)
3 . Product Specifications
Performance Index |
Index Parameters |
|
Input Power |
Testing Range |
0-5V |
|
Output Range |
0 . 7-5V |
|
Accuracy |
±0 . 05% * FSR |
|
Output Accuracy |
±0 . 05% * FSR |
Current |
Testing Range |
0 . 05- 100A |
|
Output Range |
0 . 05- 100A |
|
Testing Accuracy |
±0 . 05% * FSR |
|
Output Accuracy |
±0 . 05% * FSR |
Power |
Testing Range |
500W(single channel) |
|
Output Range |
0-500W(single channel) |
|
Testing Accuracy |
±0 1% * FSR |
|
Output Accuracy |
±0 . 1% * FSR |
Data Record |
Sampling Rate |
1Hz :1 samples/sec |
|
Recording Rate |
1Hz: 1 point/sec |
|
Recording Conditions |
△T,△I,△V,△Temp |
Full Scale Current Response Time |
≤30ms |
|
Time Resolution |
1s |
|
Input Impedance |
≥1 MOhm |
|
Support Charge Discharge Type |
Constant current charge, constant voltage charge, constant current and constant voltage charge, constant power charge, constant current discharge, constant load discharge and constant power discharge |
|
Number of Test Commands |
399 commands can be set, 65535 loops can be set, and 5 nested loops are supported |
|
Channel Control Mode |
Independent Control |
|
Communication Mode |
Ethernet, 100Mbps |
Safeguard |
Hardware |
1 . Add anti reverse connection module to prevent battery reverse connection; 2 . Support sound and light alarm function. |
Software |
1 . Power down data protection ; 2 . Support protection condition setting: voltage upper limit, voltage lower limit, current upper limit, current lower limit, capacity upper limit, energy upper limit, voltage change rate, delay protection, temperature upper limit, temperature lower limit |
|
Calibration Frequency |
≥ 1 Year |
|
Fan Noise |
≤ 85dB |
|
Channels Per Chassis |
4/8/16/32 channels |
4 . General Equipment Configuration and Standards
■ Appearance Color of Equipment: Chassis: Silver White;Cabinet: Silver White .
■ Chinese operation manual and software CD are attached .
■ Accessories Attached with the Equipment:
NO |
Name |
Quantity |
Submission Time |
1 |
Factory test report of equipment |
1 |
On delivery |
2 |
Equipment operation manual |
1 |
On delivery |
3 |
Packing list and product certificate |
1 |
On delivery |
4 |
Network cable |
1 |
On delivery |

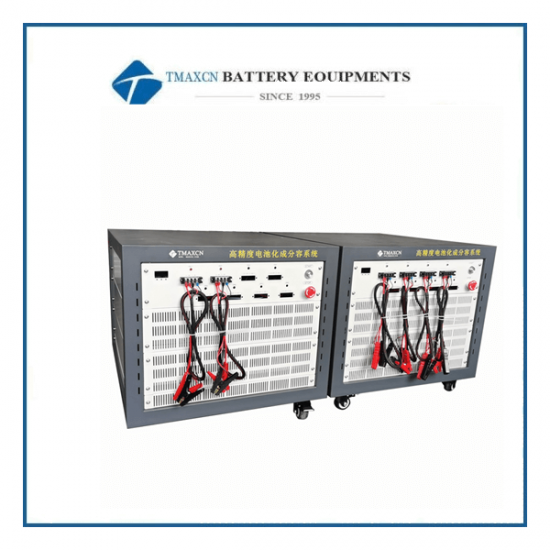

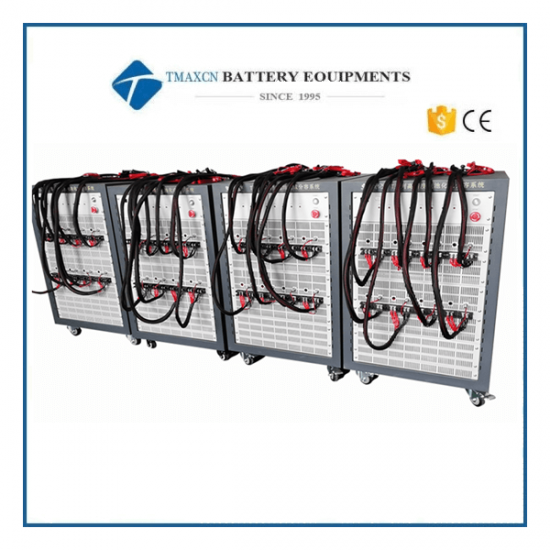

5.Product Pictures:
