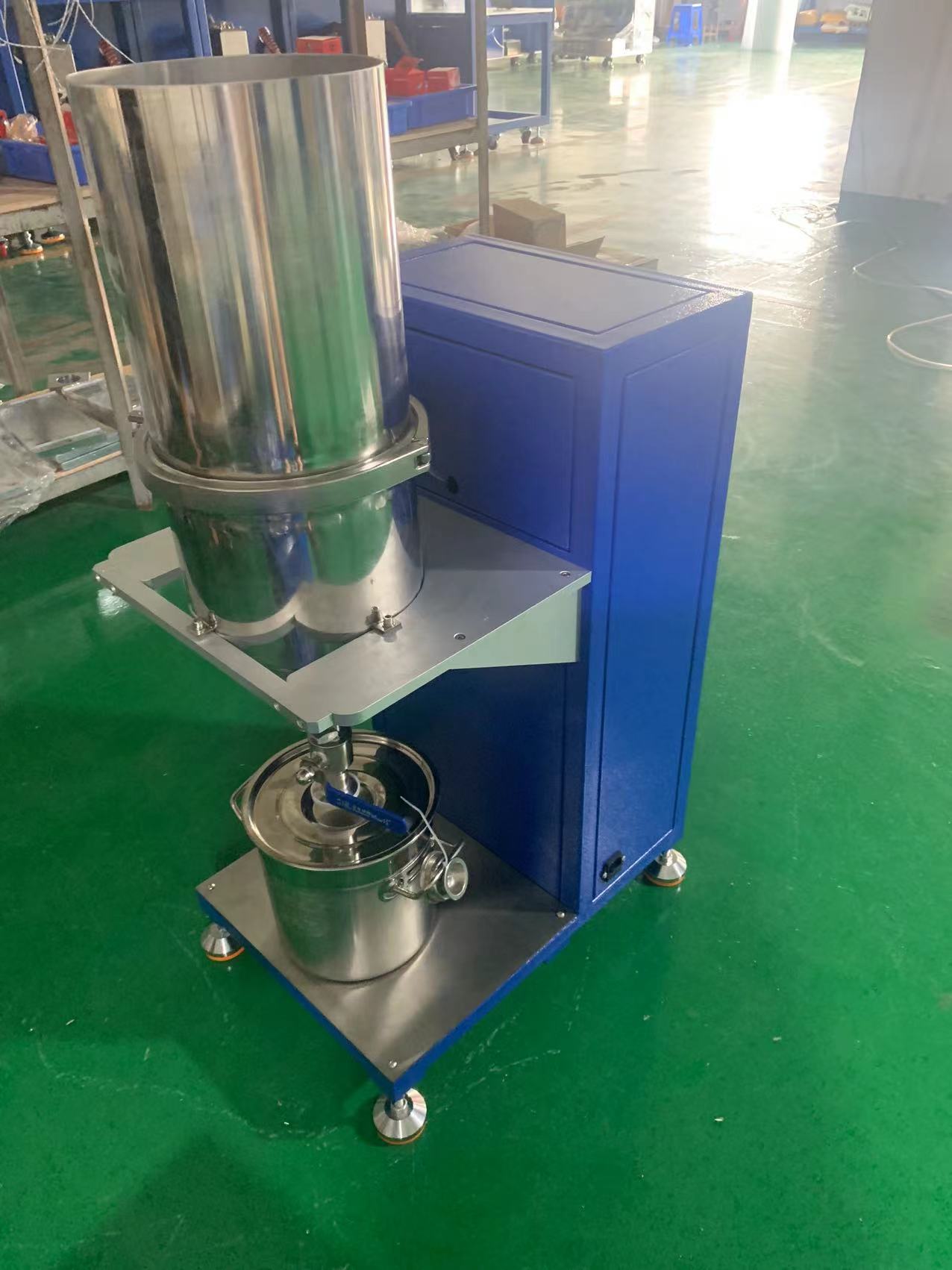

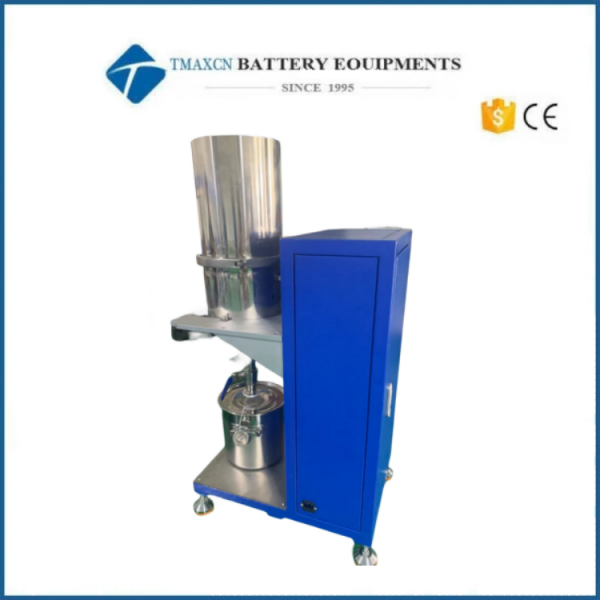

5L Lab De-Ironing Filter For Solid State Battery Slurry

Ⅰ、Product Introduction：

The Solid State Battery Slurry De-ironing filter is equipped with two functions of iron removal and vacuum filtration, which are used for the optimization of the slurry after the solid state battery anode and cathode slurry ingredients and before the coating.

Ⅱ、Main Features:

*High filtration accuracy, up to 124 microns, equipped with two types of particle filter screens: positive and negative. Optional iron removal function

*All SUS304 stainless steel design, good anti-corrosion performance, clean and easy to clean.

*Equipped with a larger filter area, the filter screen has low pressure loss and the equipment is durable.

*Small size, easy to operate.

*Beautiful appearance, easy maintenance, molding and other advantages.

Ⅲ、Work process：

First turn on the power supply and start the vacuum pump. The slurry is poured into the upper cavity, and iron impurities are absorbed by the magnet. Then the slurry is sucked into the lower cavity through the filter through the vacuum, and finally the valve is opened, and the slurry in the lower cavity flows into the receiving barrel. Finish filtering.

Ⅳ、Technical Parameters

Model	Slurry iron removal filter
Processing content	vacuum filtration, magnetic separation and iron removal, intermittent processing
Processing capacity	5L/time
Vacuum	Absolute vacuum 65KPa
Filter specifications	below 1000 mesh
Iron removal capacity	8000~10000 Gauss
Slurry state	Recommended viscosity≤20000CP, solid content≤80%
Power supply	single-phase voltage 100~240VAC±10%, frequency 50Hz/60Hz
Power	100W
Installation size	L500×W700×H1400mm
Weight	30Kg
