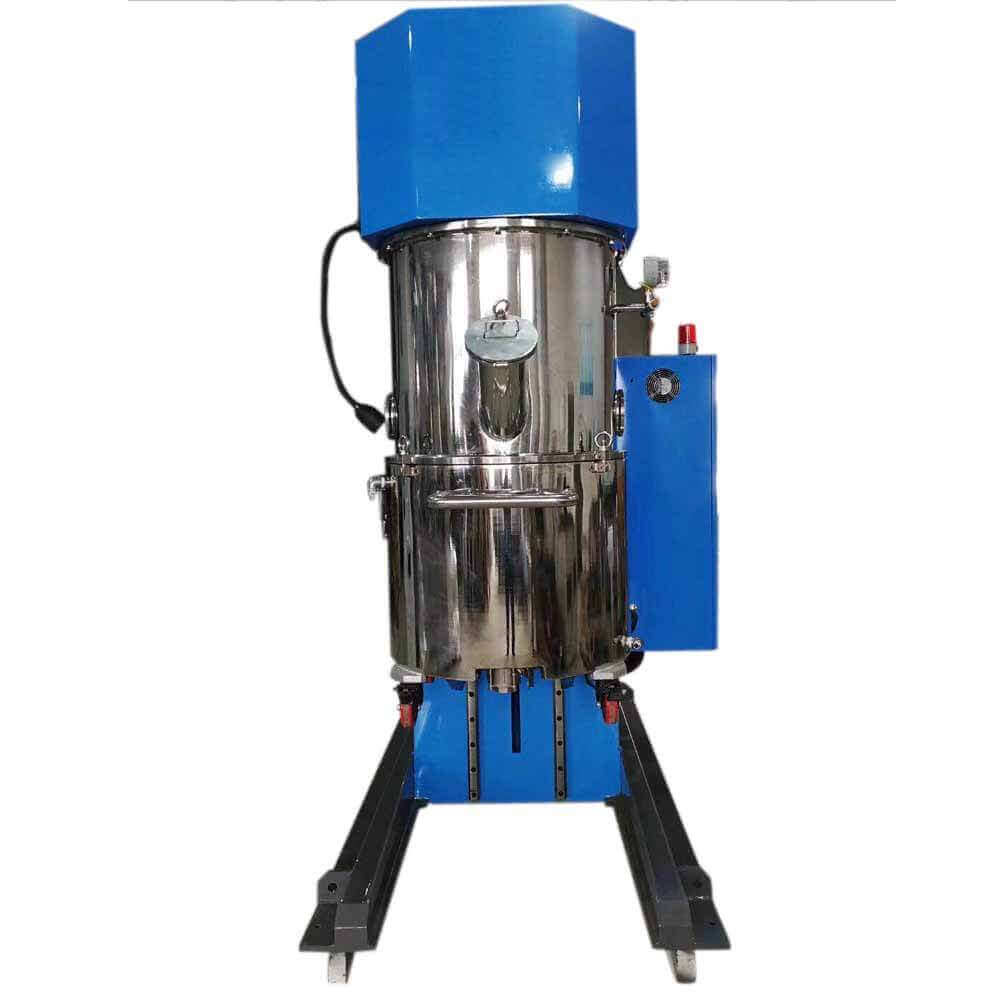

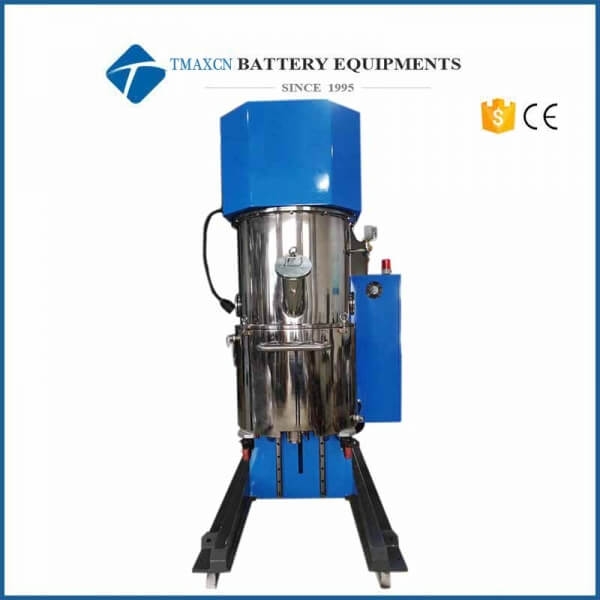

50L Planetary Vacuum Mixer for Lithium Battery Slurry

The vacuum planetary mixer is programmable in vacuum operation , raise or down, speed adjusting by the frequency inverter , temperature show/control , urgent stop , and so on.

It is excellent for preparing LiCoO3, LiFePO4, Phosphors...electrode slurry and ceramic slurry without gas bubble.

Technical Parameters

Safety protection

1. There is an audible and visual alarm when the mixing tank rises or falls;

2. After the mixing tank is in place, the mixer can work;

3. The barrel body cannot be raised and lowered when the mixer is working;

4. Automatic protection of electrical appliances; emergency stop protection for operators;

5. Mixer, electrical cabinet and control box should be grounded.

Equipment technical parameters:

1, the equipment is suitable for viscosity: 1 thousand -20,000 cp;

2, the total power: about 37kw;

3. Vacuum: ≤-0.098Mpa;

4. Positive pressure of water-cooled jacket of mixing tank: ≤0.4Mpa.
