Planetary Gravity Mixer

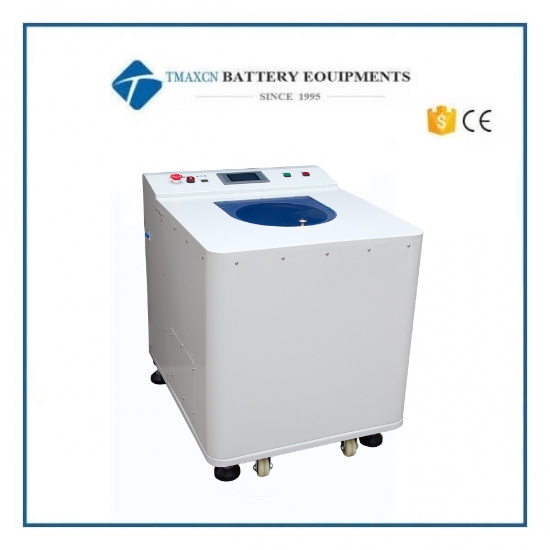

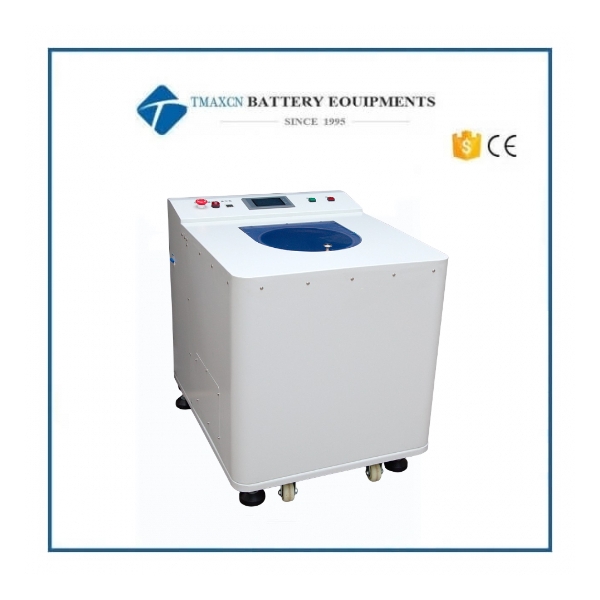

5000ML Double Cup Vacuum Planetary Gravity Mixer

  • Model Number:

    TMAX-ITT-5000SS

  • Dimension(L*W*H):

    L840×W670×H860mm

  • Net Weight:

    190Kg

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited warranty with lifetime technical support

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

5000ML Double Cup Vacuum Planetary Gravity Mixer


Planetary Gravity Mixer



Product introduction

1: The material rotates in the container at the same time the vacuum, a few minutes to realize the high viscosity material mixing, dispersion, defoaming treatment.

2: Spiral bevel gear transmission: stable and low noise mechanical transmission. Low failure rate and long service life.

3: Easy maintenance of the overall arm. Our company can provide assembly parts to ensure that customers work 24 hours without stopping.

4: Rodless mixing, no pollution, no damage to the nature of the material.

5: High speed, high efficiency, high viscosity glue can be perfectly mixed.

6: Equipped with different cups and transition sets, large machines can choose small cups, easy to realize the size of the container to turn

7: According to customer requirements can be customized to meet the requirements of customers directly using different containers fixtures



Applicable industries: semiconductor lighting (LED), photovoltaic, batteries, capacitors, fine chemicals, and so on.

Applicable materials: various and particles (phosphor, chemical powder, metal micro-particles, etc.), liquid glue (silicone, all kinds of adhesives, conductive adhesive, printing ink, etc.), metal paste (silver paste aluminum paste, etc.)



Features of defoamer

Spindle

Adopting Swiss ASSAB S136 mirror mold steel, after multi-channel heat treatment, the overall hardness reaches HRC62 degrees. The shaft is ground as a whole, with a full runout of no more than 1 silk. The sealing surface is then mirror ground to achieve a surface roughness of 0.02um mirror effect, the coefficient of friction is extremely low, its own super wear-resistant to the sealing ring of the wear and tear is very little, to achieve a long life of high sealing. No air leakage for 10 years



Seal ring

Adopting Germany Bayer super wear-resistant sealing ring, wear-resistant bearing capacity can reach 40M/S line speed, our equipment in 2500 rpm line speed is only 6M/S. Pressure can withstand 20KG/c m. 10 years without leakage.



Vacuum pump

Adopting Germany technology Small Diamad(s diamond level) vacuum pump, 50dB noise when limit vacuum, one of the highest level in the same class.



Transmission

Adopting the domestic first automobile spiral bevel gear structure used in mixing and defoaming machine, smooth operation, low noise, long life.



Rotating body

Adopt the whole rotating arm, all adopt the American import aviation magnesium aluminum 7075 whole processing and become, ensure the precision and late stability of the product, the center error is not greater than the earth 0.02. High interchangeability, the same type of machine rotating arm into any interchangeable, convenient maintenance.





Name:

Vacuum planetary gravity mixer (vacuum mixing & defoaming machine)

Model:

ITT-5000S

Usage:

Adapted to the dispersion, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin etc.).

Standard container:

5000ML(HDPEφ190*209)

1500ML(HDPEφ130*146)

900ML(HDPEφ104*124)

Non-standard pin can type ink tank φ40.2*313

Maximum handling capacity:

500g~4.5KG*5；≤3000ML*2；

 Revolution:

100~1100rpm Stepless speed regulation, according to the actual needs of users arbitrary input, adjust 1rpm;

rotation and revolution ratio 0~130% adjustable;

Setting time:

0~6500S x 5 (five steps in total), accuracy 1s;

Parameter storage capacity:

5 groups;

Vacuum degree:

-100KPa, accuracy 0.1KPa;

Vacuum source:

Built-in two-stage advanced vacuum pump 240L/min (= 4L/sec = 14~16m²/hr);

Absolute value limit pressure (partial pressure 5*10-2Pa and 0.05Pa);

Absolute value limit pressure (full pressure 4*10-1Pa and 0.4Pa);

Vacuum setting:

Vacuum independent switch with vacuum delay function, vacuum degree is adjusted arbitrarily;

Bearing:

Japan NSK bearing;

Control system:

Human-machine dialogue, Chinese and English interface, touch screen operation;

Balance adjustment:

Double-cup configuration balance;

Transmission mode:

Gear transmission;

Principle of operation:

Revolution and rotation wingless centrifugal gravity way;

Alarm device:

Running top cover uncovered detection;

Safety protection:

Locking of the upper cover during operation and stopping of work when the upper cover is opened;

Applicable temperature and humidity:

10~40 ℃; 20~80%RH (no thick foggy moisture, that’s enough);

Voltage:

AC220V±5%; 1-Phase; 50~60Hz;

Voltage:

Main machine rated power 2000w including vacuum pump;

External dimensions:

L840×W670×H860mm；

Main machine weight:

190Kg；

Equipment Features:



Revolution and rotation up to produce nearly 400G centrifugal gravity, strong dispersion and defoaming; no spiral blade, to achieve mixing and dispersing in the container; no cleaning, will not contaminate the material; does not damage the material (especially fibrous materials) traits; human-computer interaction, easy to operate; ultra-small, ultra-lightweight, ultra-quiet optimized design.



Selection Guide



Model

Standard cup full capacity

Max filling capacity per cup

Total loading capacity

Single cup:

ITT-300

300ML

150ML

150ML

ITT-900

900ML

450ML

450ML

Double cup:

ITT-300S

300ML

150ML

300ML

ITT-900S

900ML

540ML

1080ML

ITT-1500S

1500ML

900ML

1800ML

ITT-4000S

4000ML

2200ML

4400ML

ITT-10000S

10L

5L

10L

Others: adjustable rotation version, no oil pump version, no vacuum version mixing capacity refer to the above.
