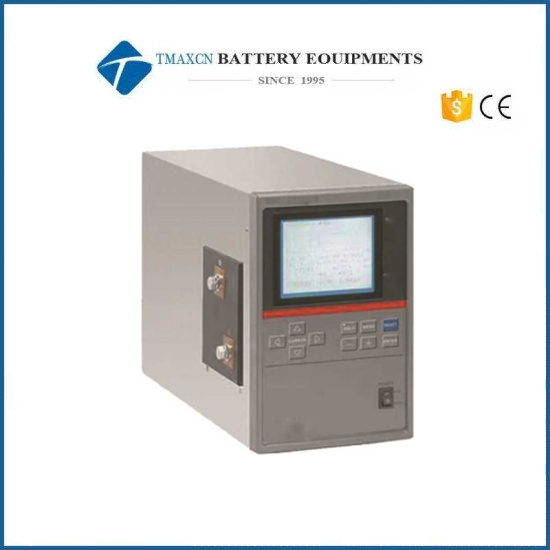

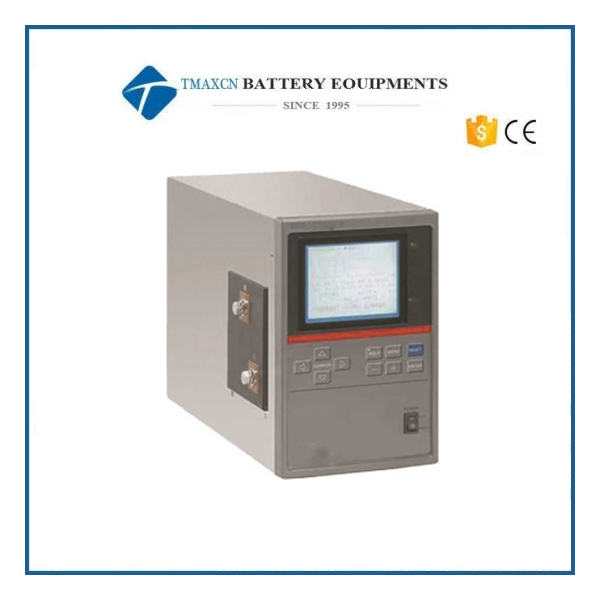

5000A 8000A 10000A Transistor Welding Power Supply
Model Number:
TMAX-TWPSCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
1500W Fiber Laser Welder for Thick Nickel Strip WeldingNext:
Automatic CNC Double Sides Spot Welding Machine W Transistor Welding Power Supply

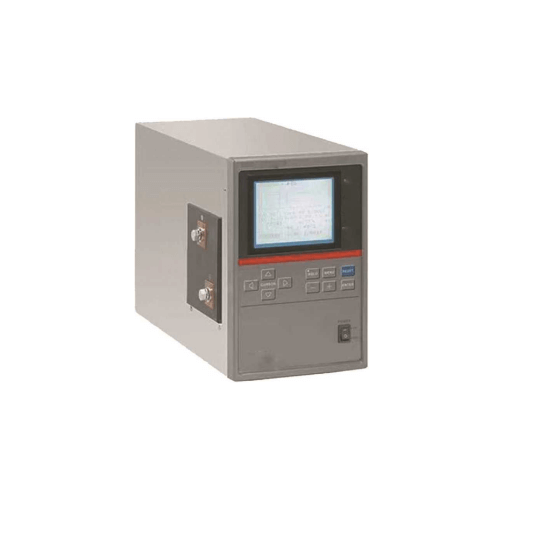

5000A 8000A 10000A Transistor Welding Power Supply
Introduction:
The welding current of transistor power supply rises very fast, which can complete the welding process in a short time. The welding heat affected zone is small and the welding process is free of spatter. It is most suitable for ultra precision welding, such as thin wire, button type battery connecting piece, small contact of relay and metal foil.
Function Features:
1. Three control modes: constant current, constant voltage, constant current and constant voltage combination mode
2. Large LCD display screen for transistor power welding, which can display welding current, power and voltage between electrodes
3. Built in detection function: before formal power on, there can be detection current to confirm the presence or absence of workpieces and the status of workpieces. The energy output polarity can be switched.
4. The actual welding parameters can be output through RS485 serial port. 32 groups of energy can be switched arbitrarily. The input and output signals are complete and can be used with automation.
Specification:
Model |
MD-5000A |
MD-8000A |
MD-10000A |
MD-1000B |
MD-4000B |
MD-8000B |
Current Type |
Standard type |
Polarity switching type |
||||
Max Current |
4900A |
7900A |
10100A |
1500A |
5190A |
9990A |
Max Voltage |
30V |
|||||
Power Supply |
AC100V-120V/220V-240V(50/60HZ) |
|||||
Control Mode |
1. Constant current control; 2. Constant voltage control; 3. Constant power control; 4. Random combination mode of current, voltage and power |
|||||
Time Setting |
Preloading time:0000-2999MS |
|||||
Rise time:0.00-9.99MS |
||||||
Welding 1,Welding 2 time:0.00-9.99MS |
||||||
Cooling time:0.00-9.99MS |
||||||
Slow down time:0.00-9.99MS |
||||||
Pressure holding time:0000-999MS |
||||||
Rated Power |
160W |
300W |
600W |
600W |
600W |
600W |
Current Setting Range |
0-2.99KA |
0-5.99KA |
0-9.99KA |
0-4.99KA |
0-4.99KA |
0-4.99KA |
Voltage Setting Range |
0-9.99V |
|||||
Cooling Mode |
Air cooling |
