Cutting Machine For Producing

500*500mm High Accuracy Cutting Machine For Producing

  • Model Number:

    TMAX-JD-500
  • Input Power:

    500W
  • Dimension(L*W*H):

    1000*760* 2160mm
  • Net Weight:

    1000kg
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty and lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

500*500mm High Accuracy Cutting Machine For Producing

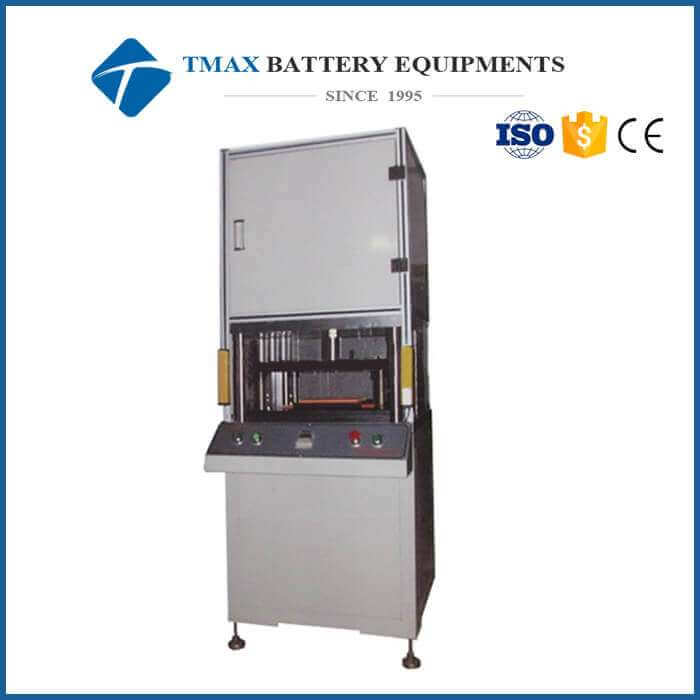

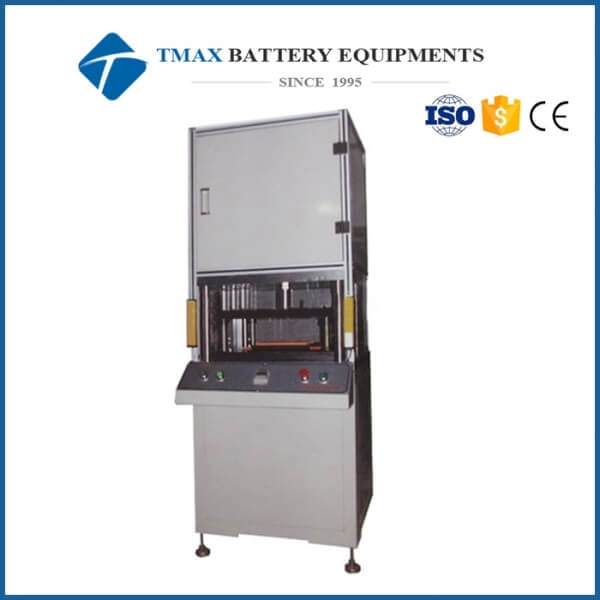

1 TMAX-JD-500 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

2 This Semi Automatic Die Cutter machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.

3 High speed, high accuracy, long lifetime to make cutted electrode without burr, to get a good consistency.

4 This model has max die dimension with 500*500mm, It is mainly used for producing, if we want smaller size for lab research, please choose the TMAX-MQ300 model.


SPECIFICATIONS:

Model

Battery Electrode Die Cutting Machine  TMAX-JD-500

Work voltage

AC110V/220V, 50/60HZ

Power

500W

Warranty

One year limited warranty with lifetime support

Max cutter die size

500mm(L) * 500mm(W)

Die Set Dimensions

One set of standard electrode die is included.within the dimensions::500mm(L) *500mm(W)

Customized size die is available upon request

Safety Protection

Built in Safety Curtain to protect against

hand injuires during electrode feeding

Double start press button

Cutting Accuracy

±0.1mm

Air Cylinder

5 tons Max. pressure

Feeding

Manually

Production Yield

100-400 pieces of electrodes per hour According to battery sheet size

Air Pressure

0.6-0.7Mpa, 40L/S

Dimension

(L*W*H)

1000*760* 2160mm

Net Weight

1000kg
