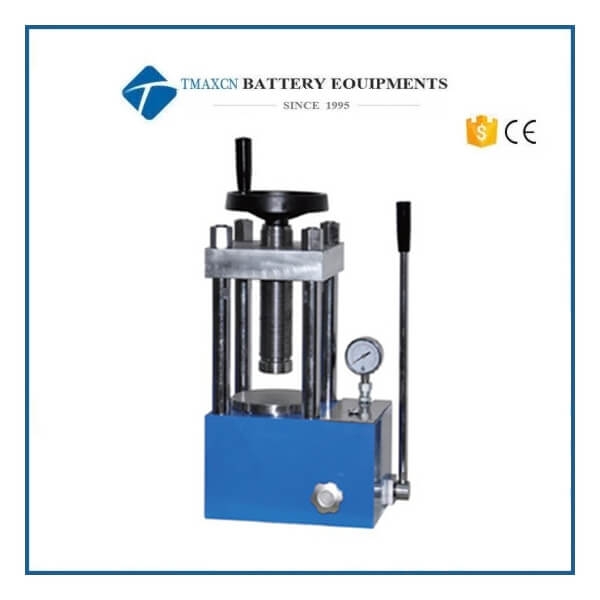

40T Lab Mini Manual Tablet Press Machine for Scientific Research
Model Number:
TMAX-M40TNet Weight:
About 90kgCompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
300c Cylindrical Lab Electric Heating Press Machine for Scientific ResearchNext:
100T Laboratory Automatic Programmable Control Powder Press Machine
40T Lab Manual Tablet Press Machine for Scientific Research
The new manual tablet press is widely used in the fields of new materials, superconductors, powder ceramics, new power sources, batteries, building materials, metallurgical powder and so on, X-ray fluorescence (XRF) analysis instrument is used in complete set; the machine has the advantages of compact structure, small volume, fast pressing, simple operation, easy cleaning, convenience and safety; it can be used to press potassium bromide (KBr), sodium chloride (NaCl) and other powder materials into a variety of test pieces, columns, shaped bodies or combinations of other shapes for scientific analysis and research It can also be used in other work occasions which need corresponding pressure. It is widely used as a press to test and analyze the pressure resistance of various objects.
Technical Parameters

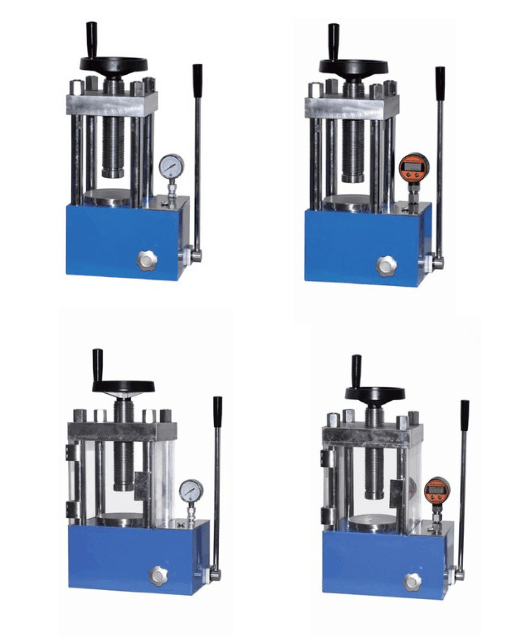

Model |
SYP-40C |
SYP-40CS |
SYP-40CF |
SYP-40CFS |
Combination |
Analog pressure gauge |
Digital pressure gauge |
Analog pressure gauge+protective cover |
Digital pressure gauge+protective cover |
Analog pressure gauge |
Analog type, Ton and Mpa double scale display (only for model without "s" type) |
|||
Digital pressure gauge |
Digital display, 0.00-40.00MPa,accuracy: 0.01MPa(only for model with "s" type) |
|||
Pressure range |
0-40T(0-30MPa) |
|||
Piston diameter |
Φ130mm chrome cylinder |
|||
Maximum piston stroke |
50mm |
|||
Pressurization mode |
Manual pressure / manual slow pressure |
|||
Pressure stability |
≤1MPa/10min |
|||
Overall structure |
Patent technology of integrated structure, no sealing connection, reducing oil leakage |
|||
Table diameter |
Ф140mm |
|||
Number of columns |
Four columns |
|||
Protection function |
Without |
With plexiglass shield |
||
working space |
115×185mm(W/H) |
150×185mm(W/H) |
||
Dimensions |
295×215×500mm(L×W×H) |
355×215×505mm(L×W×H) |
||
Instrument weight |
75kg |
90kg |
||
Instrument remarks |
Model with "F" for the plexiglass protective cover, with "S" for digital pressure gauge, the working space can be customized heightening |
Conversion
ctual pressure |
System pressure |

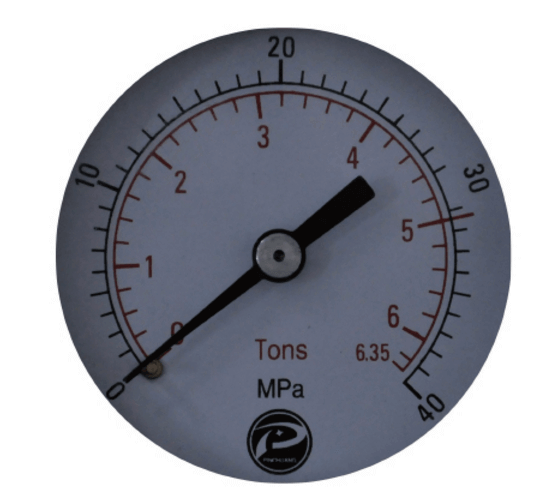

Double display pressure gauge |
1[Tons] |
0.75[MPa] |
|
3[Tons] |
2.2[MPa] |
|
5[Tons] |
3.7[MPa] |
|
10[Tons] |
7.5[MPa] |
|
12[Tons] |
9[MPa] |
|
15Tons] |
11.3[MPa] |
|
20[Tons] |
15[MPa] |
|
30[Tons] |
22.5[MPa] |
|
40[Tons] |
30[MPa] |
It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.
