Small Hydraulic Press

40T Electric Isostatic Powder Tablet Press

  • Model Number:

    TMAX-SJYP-40T
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

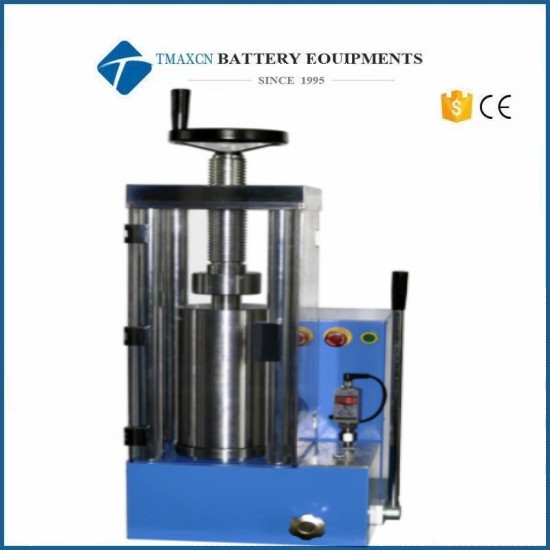

40T Electric Isostatic Powder Tablet Press




1.Parameter

Model

SJYP-40T

Pressure range

0-40T(0-21MPa)

Piston diameter

Chrome-plated cylinder Φ130mm(d)

Main body structure

Utility model patent 2013 2 0040218.0

Pressure gauge

Digital display 0-40MPa

Maximum piston stroke

50mm(T)

Pressurized method

Electric pressurization/manual pressurization

Compensation method

Automatic supplementary pressure / manual slow pressure

Protecting mask

Plexiglass

Ambient temperature

10-40

Isostatic pressure

0-300MPa

Isostatic chamber

Φ40*150mm(M*N)

Dimensions

355*450*710mm(L*W*H)

Power supply

220V(50Hz/60Hz)

Equipment weight

150kg









Dialogue of thermal compressor size

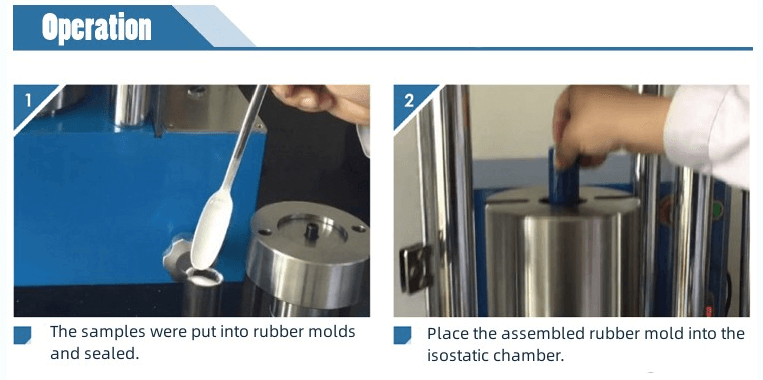

2.Operation
