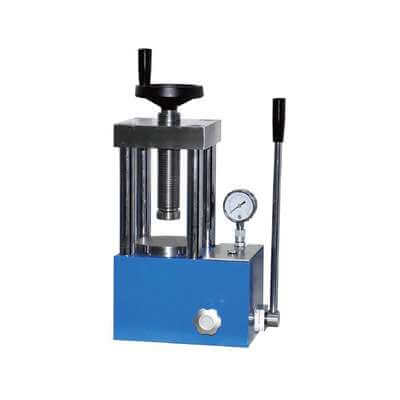

30T Laboratory Manual Hydraulic Press Machine for Powder Sample Preparation

Model Number:
TMAX-M15T
Max. Loading Capacity:
About 35kg
Compliance:
CE Certified
Warranty:
One year limited standard warranty
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

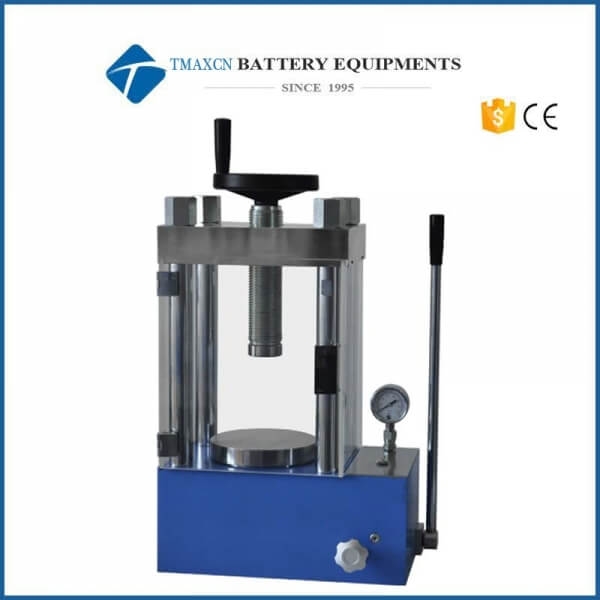

30T Laboratory Manual Hydraulic Press Machine for Powder Sample Preparation

The new manual tablet press is widely used in the fields of new materials, superconductivity, powder ceramics, new power supply, batteries, building materials, metallurgy powder, etc. it can be used together with ferrocalcium analysis, infrared spectroscopy (IR), X-ray fluorescence (XRF) analysis instruments. The machine has the advantages of compact structure, small volume, fast compression, simple operation, easy cleaning, convenient safety, etc. it can pass the specific mold It can be used as a press to test and analyze the pressure resistance of various objects and so on.

Related products:

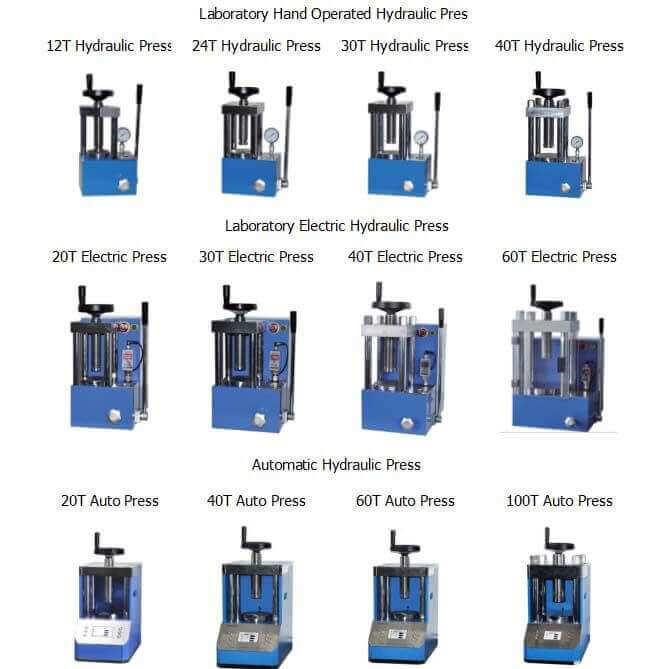

30T Hydraulic Press

Specification

Model	SYP-30T	SYP-30TS	SYP-30TF	SYP-30TFS
Model selection	Pointer pressure gauge	Digital display pressure gauge	Pointer gauge + protection	Digital display gauge + protection
Pointer pressure gauge	Pointer type, Ton and Mpa dual scale display (only without "s" type)

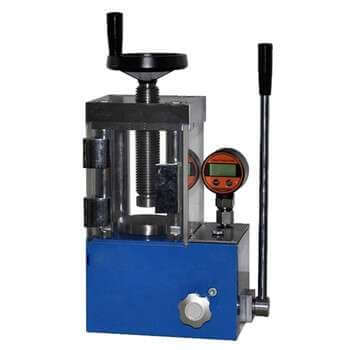

Digital pressure gauge	Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with "s" type)
Pressure range	0-30T（0-31.5MPa）
Piston diameter	Φ110mm Chrome plated cylinder
Maximum piston stroke	40mm
Pressurization mode	Manual pressurization / manual slow pressurization
Pressure stability	≤1MPa/10min
Overall structure	Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point
Diameter of worktable	Ф120mm
Number of columns	Four columns

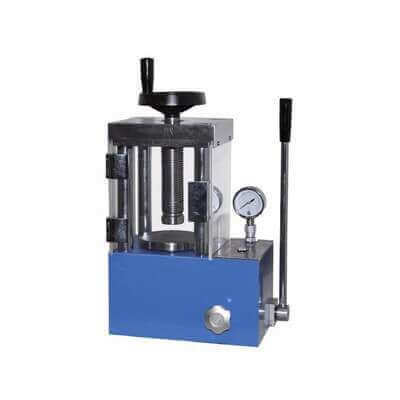

Protection function	Without		With plexiglass protective cover
Workspace	92×160mm（W/H）		120×160mm（W/H）
Outline size	275×195×420mm（LWH）		305×195×425mm（LWH）
Machine weight	56kg		65kg
Remark	In the model, "F" is plexiglass protective cover, and "S" is digital pressure gauge. The working space can be customized and increased
