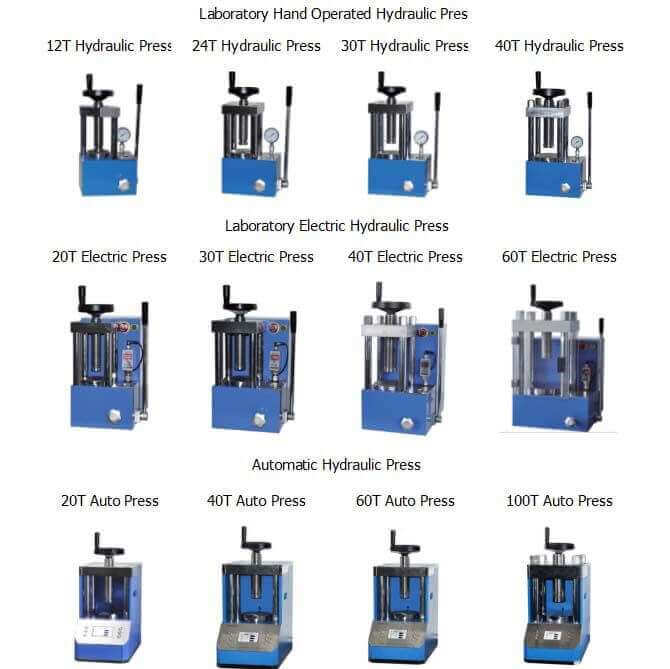

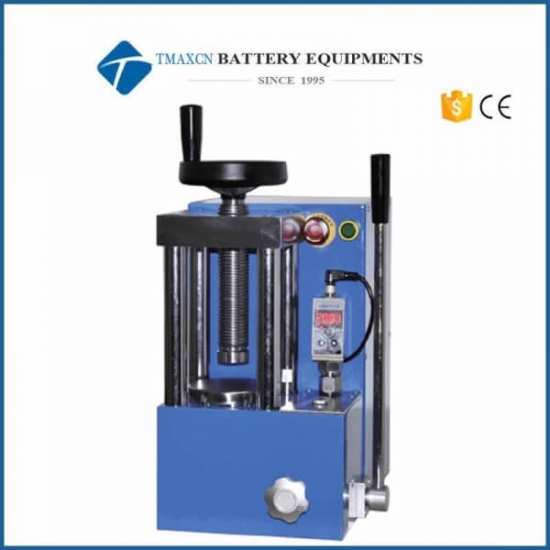

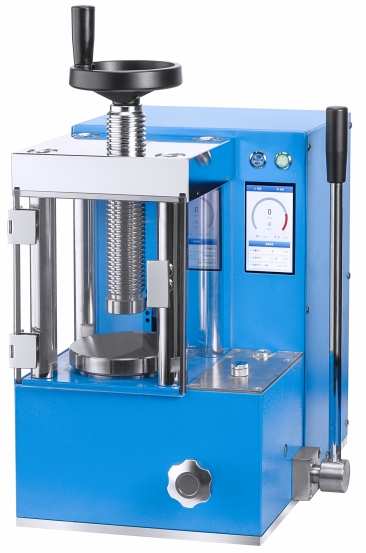

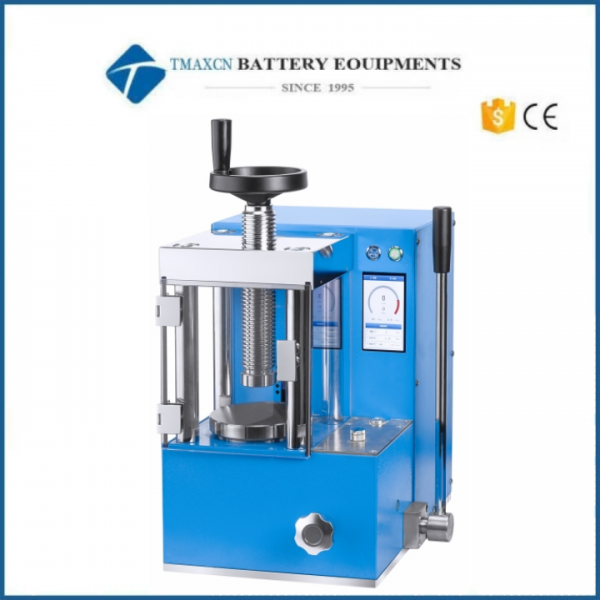

Model

DYP-20T

DYP-30T

DYP-40T

Pressure range

0-20T(0-28MPa)

0-30T(0-31.5MPa)

0-40T(0-30MPa)

Piston diameter

(Chrome plated cylinder)

φ95mm

φ110mm

φ130mm

Maximum piston stroke

30mm

40mm

50mm

Pressure gauge

Digital display, range 0.0-40.0mpa, accuracy 0.1MPa

Pressure stability

≤1MPa/10min

Pressurization mode

Electric / manual pressurization

Pressure compensation mode

Automatic pressure supplement / manual pressure supplement / manual slow pressure increase

Overall structure

Integrated patented technology, equipment without sealing connection, reduce oil leakage point

Protective cover

Optional

Device power supply

220V(50Hz/60Hz)

Diameter of worktable

φ105mm

φ120mm

φ140mm

working space

80×150mm

92×160mm

115×185mm

Outline size

245×415×415mm

275×430×420mm

295×450×500mm

Instrument weight

58kg

72kg

92kg

Remarks

If you need extra mould, please contact the sales manager for further quote

The work space can be customized to increase the height

Pressure Conversion Table

Actual pressure

System pressure

1 T

0.56 MPa

3 T

1.70 MPa

5 T

2.80 MPa

10 T

5.60 MPa

20 T

11.3 MPa

30 T

17.0 MPa

40 T

22.6 MPa

50 T

28.3 MPa

60 T

34.0 MPa

Pressure calculation formula

Area of oil cylinder / area of mould x reading of pressure gauge = actual pressure of mould

NOTE

Generally, the system pressure should not exceed 31.4mpa, otherwise it will affect the service life of the equipment and cause oil leakage
