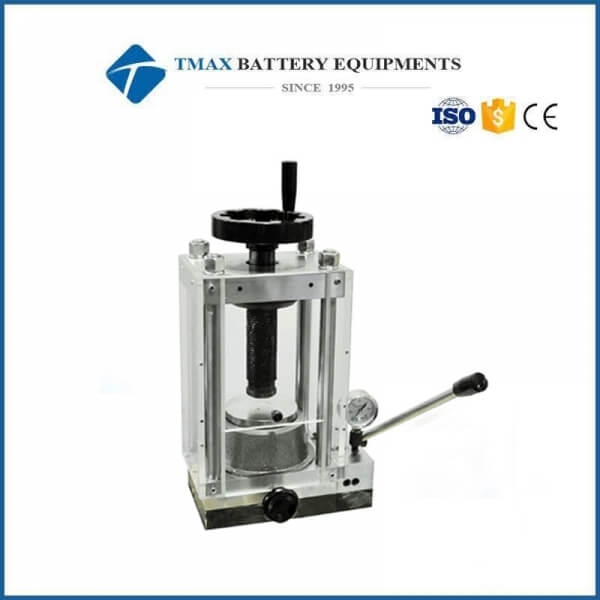

30T Desktop Manual Hydraulic Laboratory Dry Pressing Machine
Model Number:
TMAX-M30TDimension(L*W*H):
160x 330x 470mmNet Weight:
55kgWarranty:
One year limited manufacturer warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab Programmable 200T Split Electric Isostatic Press with 7-inch LCD ScreenNext:
20T Desktop Electric Hydraulic Laboratory Press - YLJ-20T
30T Desktop Manual Hydraulic Laboratory Dry Pressing Machine
Specifications：
TMAX-M30Tisa manual hydraulic pressing machine able to generate upto 40metrictons. It has a built-in hydraulic pump with an
auto-reset function to return the stage to the original position. Itisanexcellenttoolformaterial&chemistrylaboratories to preparecompound orceramic pellet samples.
Max. Pressure |
40 Metric Tons |
Bottom Hydraulic Cylinder Travel Distance |
0 - 25 mm |
Top Support Screw Adjustable Height |
130 mm |
Protection Cover |
· Polycarbonate Safety Shield is included in standard package. · Note: Door must be closed during use |
Dimension of Working Space Under Frame |
D1: 120mm |
Dimensions of Machine |
160mm(L) x 330mm(W) x 470mm(H) |
Net Weight of Machine |
55 Kg (121 lbs) |
Shipping Dimensions |
39"(L) x 31"(W) x 35"(H) |
Shipping Weight |
185 lbs |
Press Dies |
Pressing dies with various diameters are available upon request at extra cost |
Application Notes |
Caution: Customers must always wear protection goggles during operation ! |
Warranty |
· The pressing machine was quality inspected, lifetime support is provided · One year limited standard warranty |
