3 Analysis Stations Desorption Analyzer Surface Area Porosity Analyzer Aperture Analyzer

3H-2000BET-A provides standard sample reference method, single-point and multipoint BET surface area measurements with speed, accuracy, and reliability. Samples having surface areas from 0.01 m2/g to over 1,000 m2/g are easily accommodated.

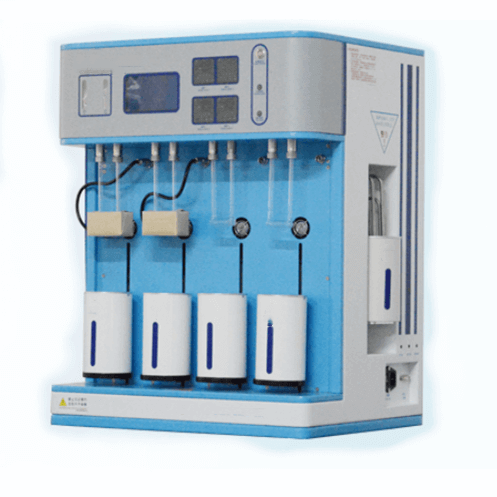

The 3H-2000A/BET-A -High Efficiency Surface Area Analyzer

3H-2000BET-A measures surface area using the flowing gas method, which involves the continuous flow of an adsorptive and inert gas mixture over the sample at atmospheric pressure.

The 3H-2000BET-A’s reproducibility is better than 1.5%. The 3H-2000BET-A features a built-in Dewar elevator for completely automated analysis and rewarming fan for rapidly warming the sample tube to increase the speed of the sample analysis.

Single injection calibration provides fast start-up and high sample throughput. Specially designed sample holders can be attached and removed from the instrument with one hand. These quick connect/disconnects have a built-in isolation valve to prevent sample contamination.

The 3H-2000BET-A features a Dewar support latch system that provides one-handed convenience and safe-guards against LN2 spills. Simple in design, the 3H-2000BET-A requires minimal training time and leaves little chance of operator error. Automatic mode switching for adsorption and desorption is accomplished without operator attention. The low purchase price of the 3H-2000BET-A and its accessories make this instrument one of the most inexpensive ways for a laboratory to begin measuring BET surface area.

Features

1.Ultra-stable detector eliminates drift and need for constant readjustment.

2.Cold trap conveniently Recessed at the side of the instrument. This placement reduces the chance of breakage .

3.Single-injection calibration requires only one control setting. Adaptable to anynon corrosive adsorbate mix.

4. All controls and displays are at eye/arm level, out of spill zone.

5. Built-in sample preparation.

6. The 3H-2000BET-A features a built-in dewar elevator for completely automated analysis and rewarming fan for rapidly warming the sample tube to increase the speed of sample analysis

7. The thermal conductivity detector eliminates temperature-induced drift resulting in highly repeatable results.

8.Single-injection calibration provides fast start-up and high sample throughput.

9. The 3H-2000BET-A features a dewar support latch system that provides one-hand convenience and safeguards against liquid nitrogen spills.

Selection Guide

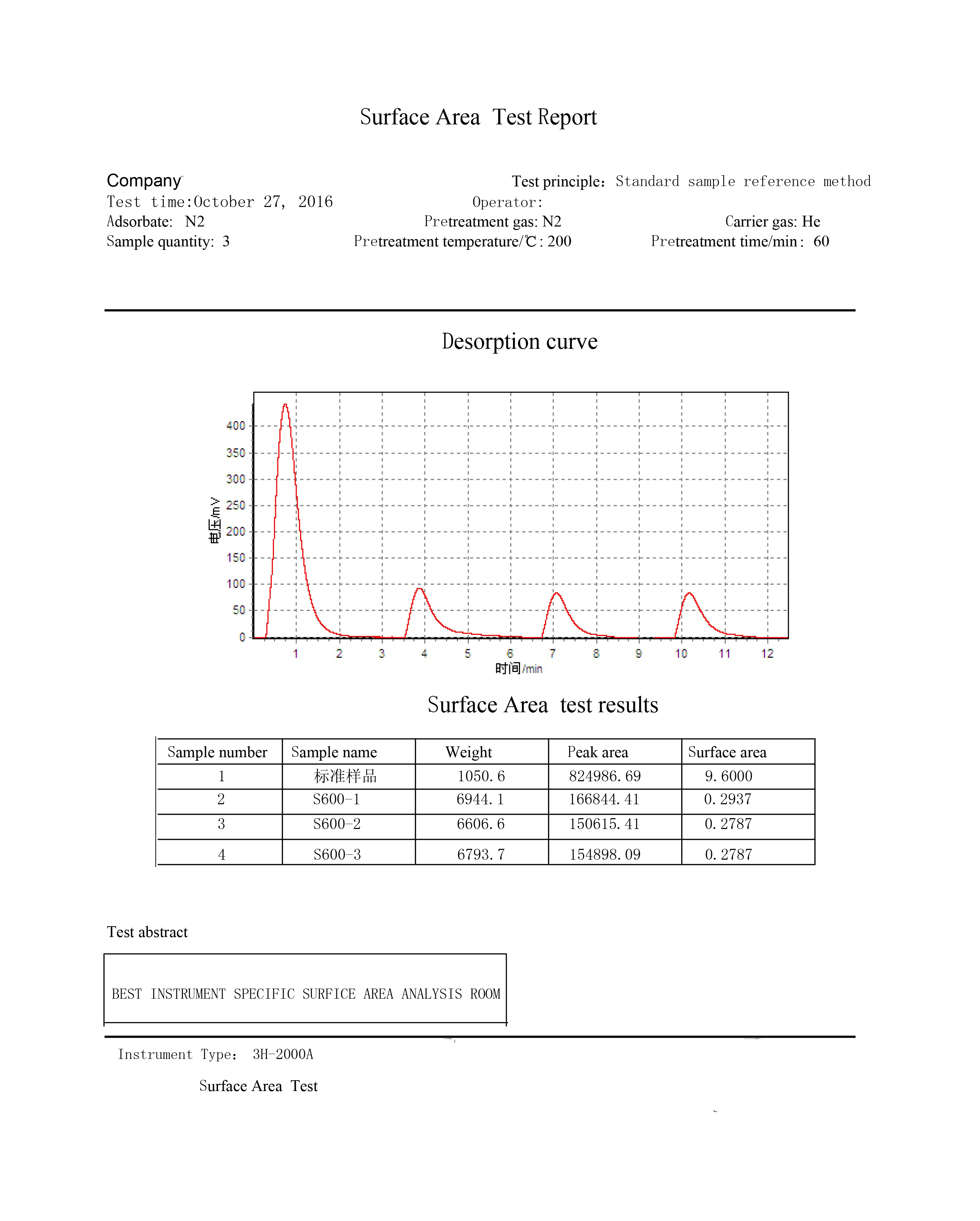

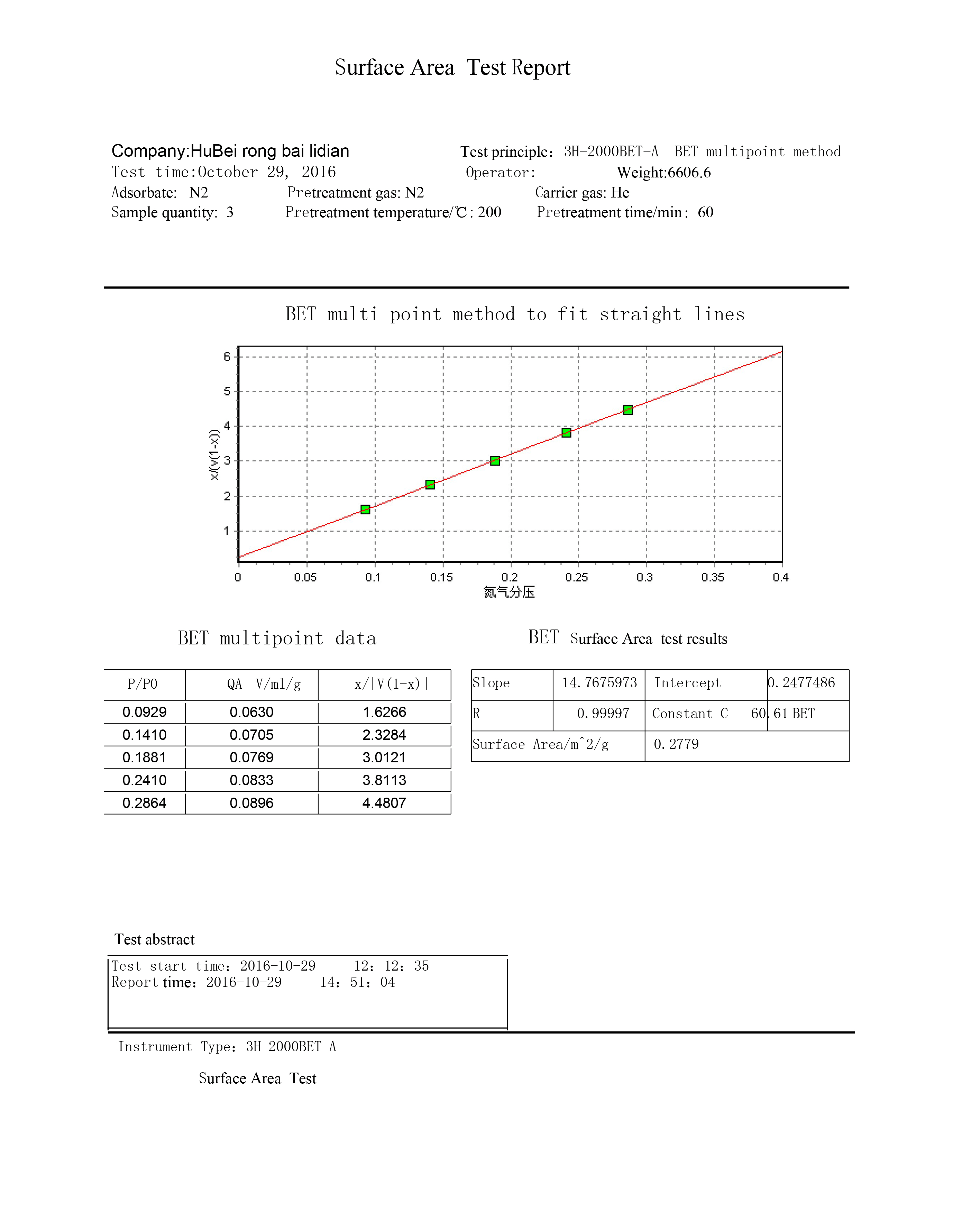

Test Reports
