250°C 25T Hydraulic Lamination Hot Press
Model Number:
YLJ-HP88V-250Net Weight:
430 lbsCompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
350°C 25T Hydraulic Lamination Heat Press Machine with Dual Temp. ControllerNext:
15T CIP (Cold Isostatic Pressing) with 22mm ID Vessel
250°C 25T Hydraulic Lamination Hot Press

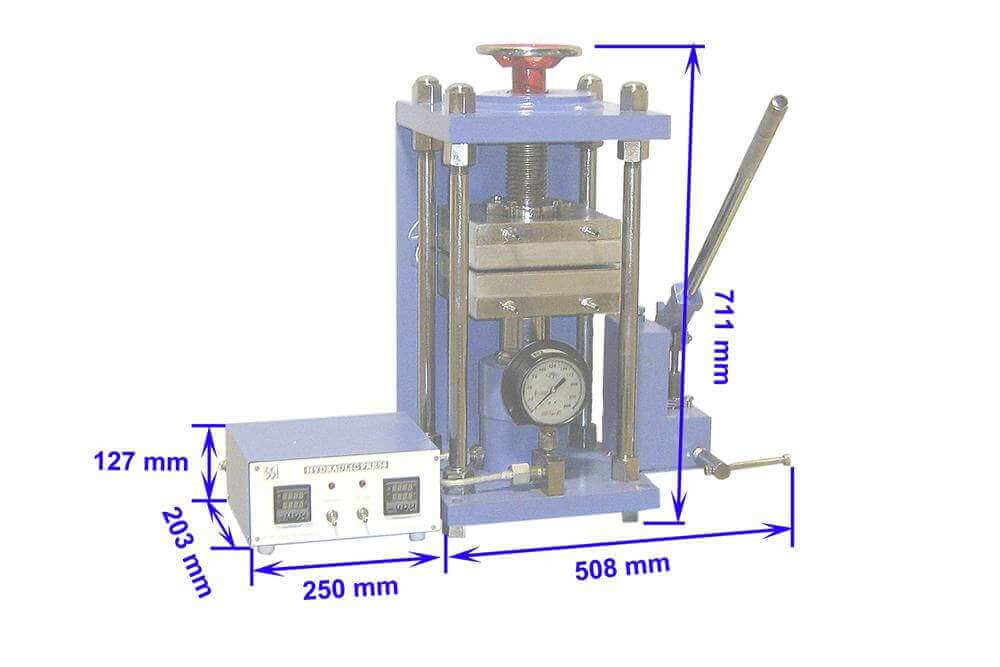

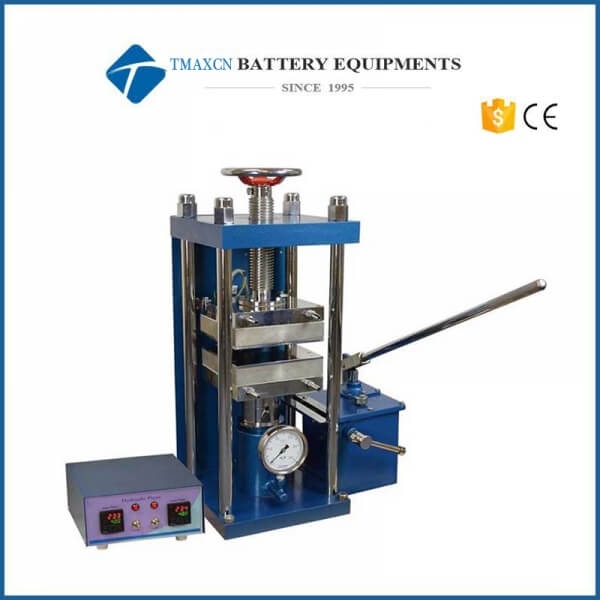

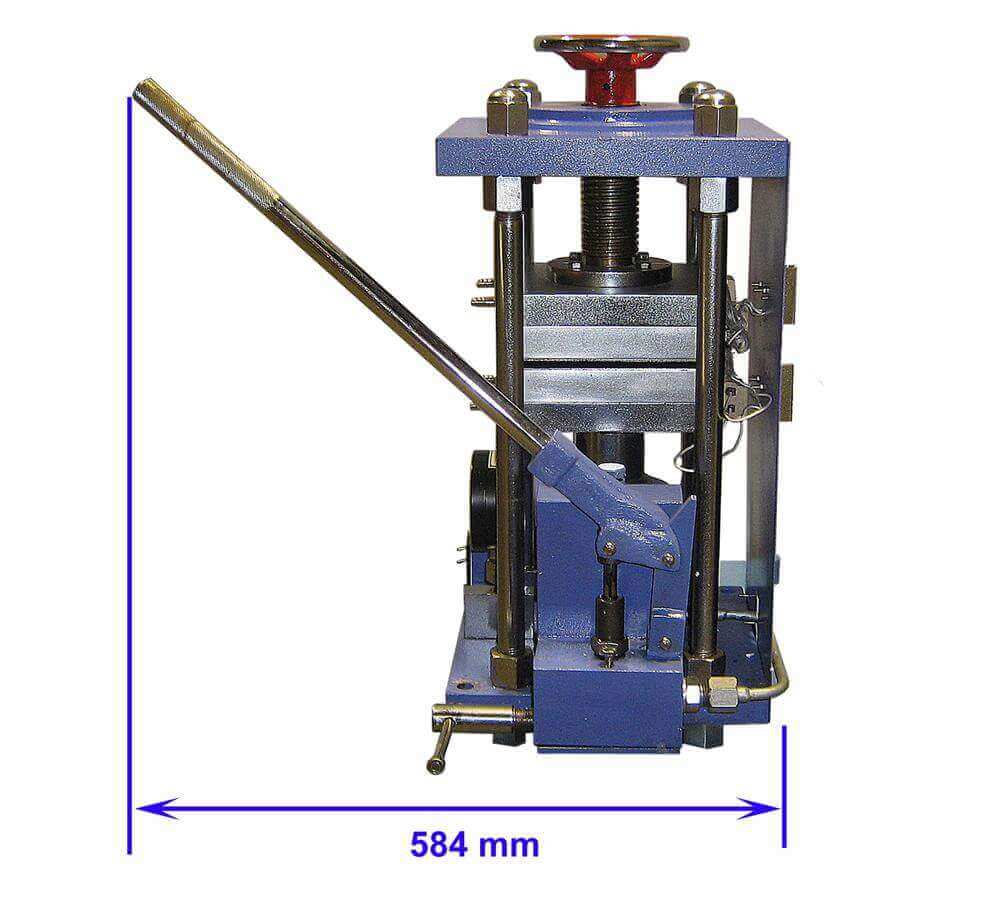

YLJ-HP88V-250 is CE Certified and consists of a hydraulic press with
manually operated oil pump & two heated platens. The temperatures of heated
platens are controlled by two digital temperature controllers
separately up to 250°C. Water cooling jackets are installed with
a heating plate that allows heated plate get faster cooling. One pressure gauge
(250 KN) is also mounted to monitor the pressure applied on the plates. It is an excellent tool to prepare polymer
and ceramic samples up to 7.5"x7.5".
Specifications:
Max. Working Pressure |
25 metric Tone ( 250 KN) |
Pressure Gauge |
Measuring Accuracy is +/-1.25 KN |
Heated Platen Area |
· Platen Area: 200mm x 200mm · Material: Casting Aluminium with 5 mm thick Headen Steel with Cr plated · Surface: Flat with CNC grinding |
Max. Travel Distance |
· 140mm Max. |
Max. Working Temperature |
· 250°C - continuous |
Heating Rate |
· 3°C/min |
Water Cooling Jacket |
· Two water cooling jacket are built on the back of top and bottom heating plate separately with 10mm I.D. water pipe connectors. Such a configuration allows you cool the sample as soon as the hot pressing process is completed. |
|
· Two digital controller installed in one box with one point control and auto-tune faction · Temperature accuracy ±1°C. |
Power Requirement |
· 208 - 240VAC, 50/60Hz, Single phase, 3000W max. · Note: 15A circuit breaker is required for 220V, 5' length power cable included, but no plug |
Compliance |
· CE Certified |
Shipping Size |
48‘’(L) x 40''(W) x 44''(H) |
Shipping Weight |
430 lbs |
Warranty |
· One year limited standard warranty (Extended warranty is available up to 5 years at extra cost) |
