20T Desktop Manual Hydraulic Laboratory Press Machine For Lithium Ion Battery Research
Model Number:
TMAX-4Z20TDimension(L*W*H):
245*245*450mmNet Weight:
10kgCompliance:
CE CertifiedWarranty:
1 yearMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
10T Economic Hydraulic Lab Press Machine for Li-ion Battery ResearchNext:
Manual Hydraulic Laboratory Press Machine
20T Desktop Manual Hydraulic Laboratory Press Machine For Lithium Ion Battery Research

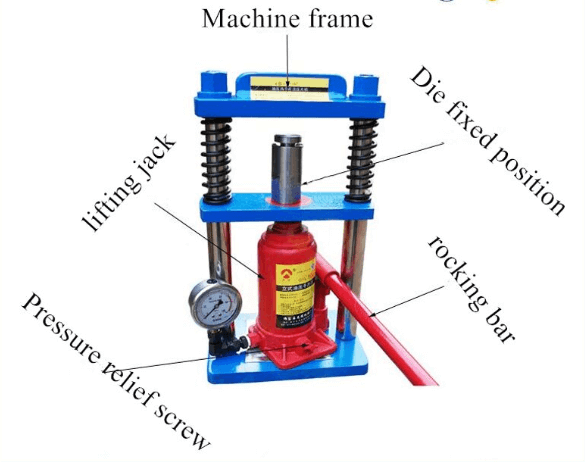

TMAX-4Z20T is an economic manual pressing machine up to 20 metric tons for materials / chemistry research laboratories to prepare the compound ceramic sample. YLJ-10 has built in Hydraulic jack with auto return function. It is suitable to be operated in a glove-box under oxygen and inert gas.
Specifications:
Max. Pressure |
20 metric tons Max. |
Gauge Pressure Value to Force Conversion |
1. Notes: 2. Displayed Pressure Value to Actual Applied Force Conversion: 1 MPa = 0.6 Ton 3. The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece 4. For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below: P = T/(πr^2) x g x 10 1. P: Pressure (MPa) applied on your working piece 2. T: Force (Ton) applied on the Hydraulic Cylinder 3. g: Standard gravity. g ≈ 9.8 m/s2 4. π: ~3.14 5. r: Radius (cm) of the working piece 6. *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2 |
Pump |
Build-in Hydraulic Pump |
Warranty |
One year limited manufacturer warranty with lifetime support. |
Bottom Hydraulic Cylinder Travel Distance |
Standard 0-150 mm, opitional other distance |
Max Lifting Height |
150mm |
Dimensions of Machine |
245*245*450mm |
Compliance |
CE Certified |
Net Weight |
50 kg |

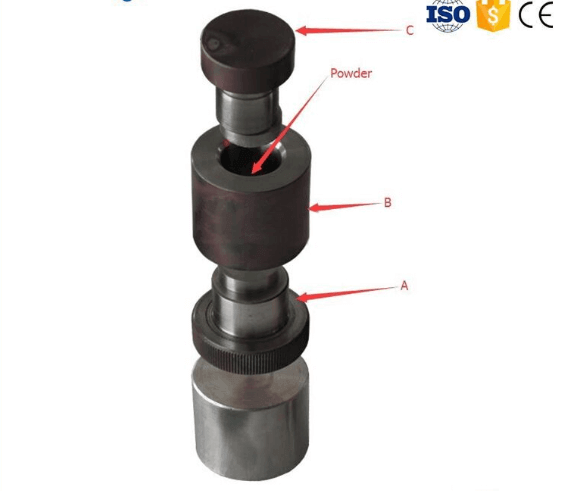

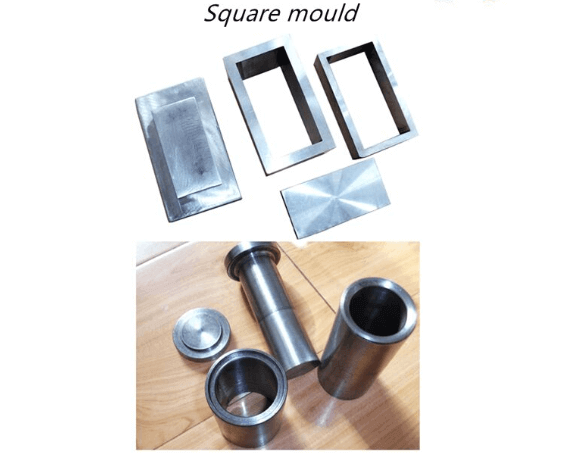

Press Dies |
Pressing dies with various diameters(6-100mm Dia) are available upon request |
