Laser Welding Machine

2000W Gantry Laser Welding Equipment for Prismatic Solar Battery Pack

  • Model Number:

    TMAX-YLD-LBM2000

  • Input Power:

    10KW

  • Dimension(L*W*H):

    1400*1200*2000mm

  • Compliance:

    CE Certified

  • Warranty:

    One year limited warranty and lifetime support

  • Place of Origin:

    China

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    30 days
Product Details

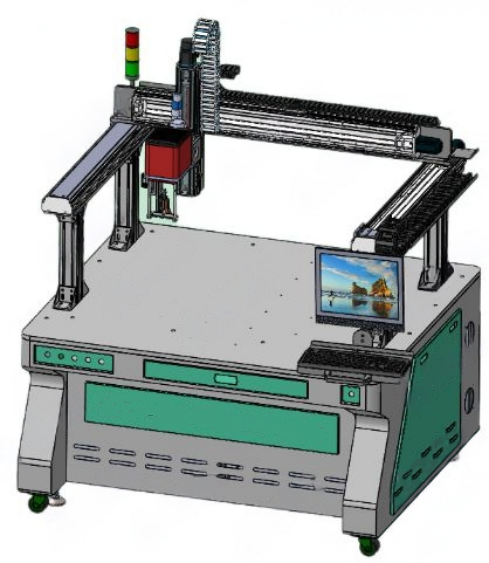

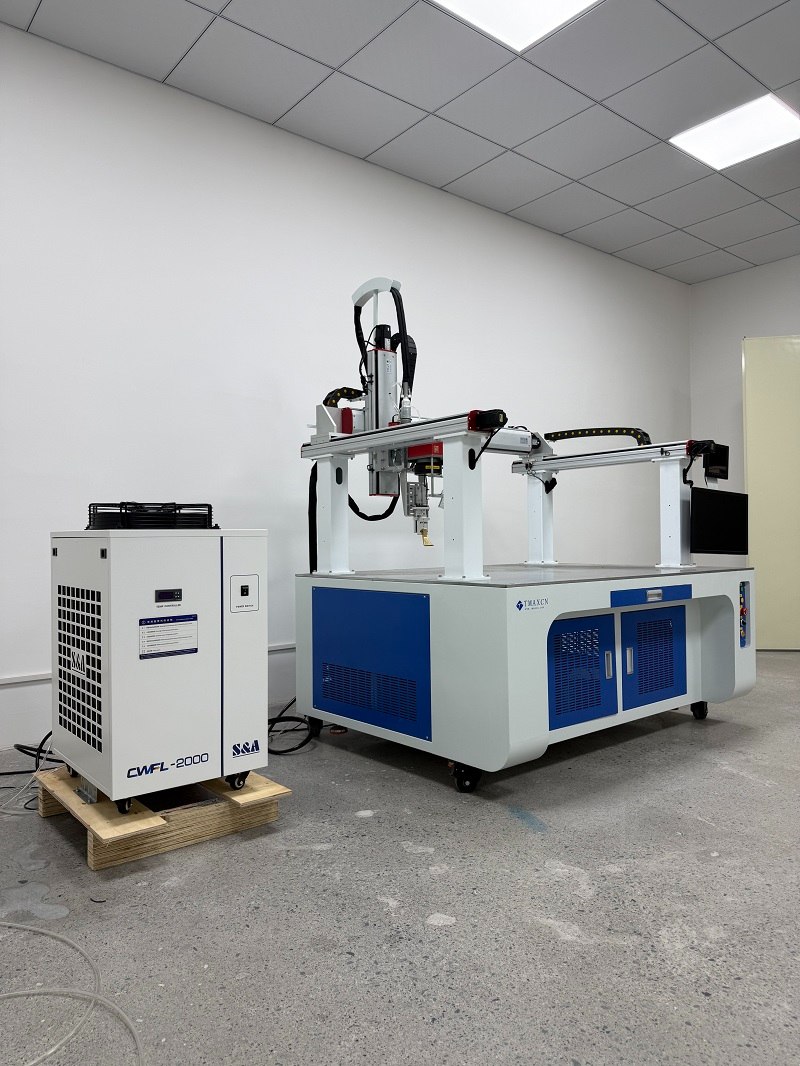

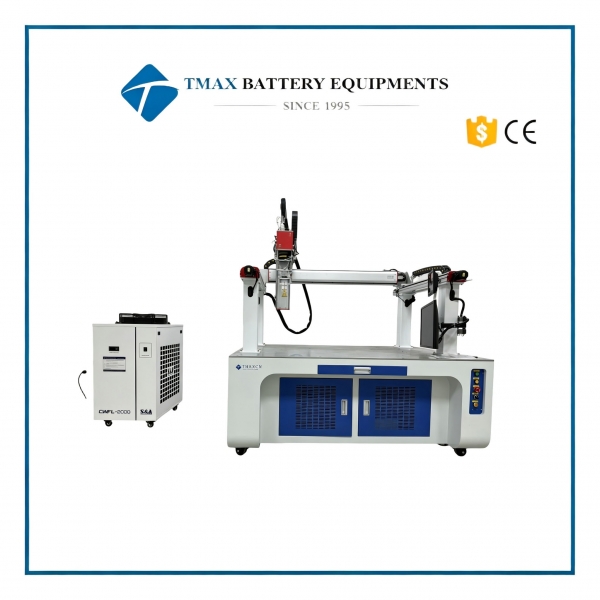

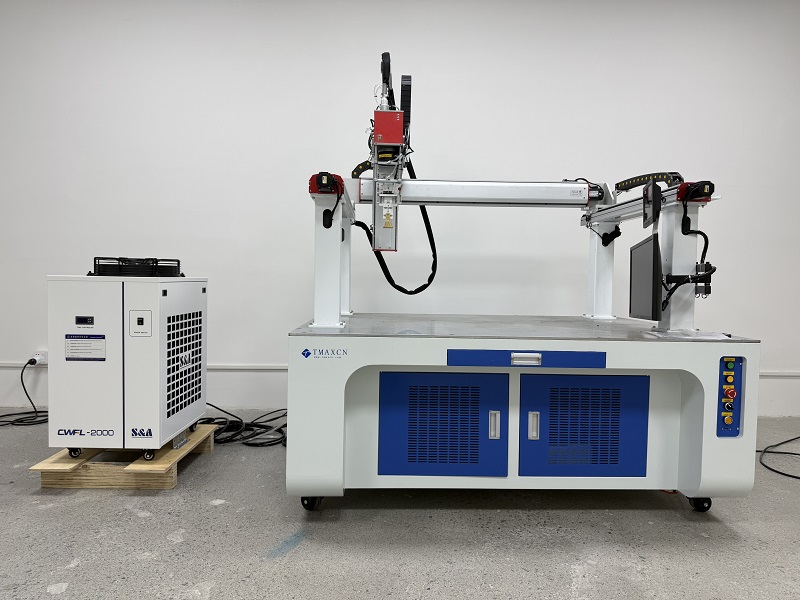

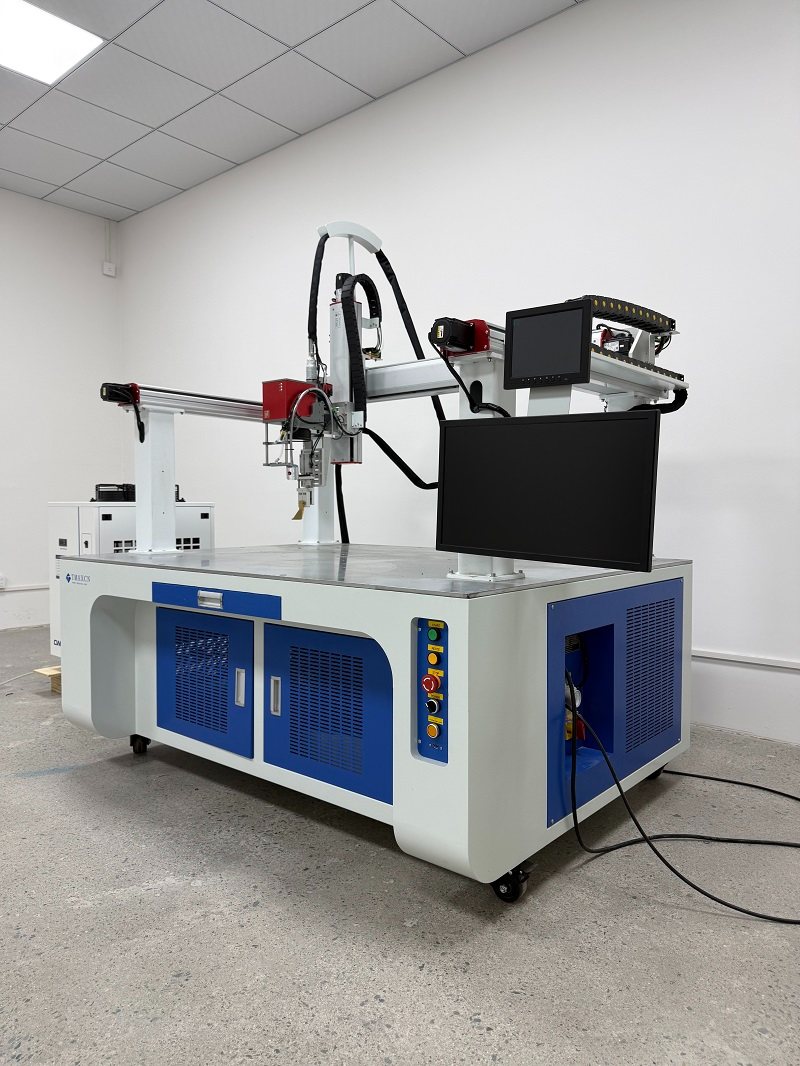

2000W Gantry Laser Welding Equipment for Prismatic Solar Battery Pack



Ⅰ、Function Overview：

TMAX-YLD-LBM2000 continuous fiber laser welding machine is suitable for welding metal materials such as copper and aluminum. This machine adopts a high-strength gantry bed structure design, and its stable body ensures stability during the welding process; Using advanced continuous laser as the light source, it has higher photoelectric conversion efficiency, lower power consumption, and higher beam quality; Fiber laser has the advantages of compact structure, small volume, and ready to use performance; Due to its flexible laser output mode, it can be easily integrated with system equipment; The high-precision and high-strength screw linear module serves as the operating transmission mechanism, and the highly responsive servo motor power output ensures high speed and accuracy of operation. It is a key equipment in the field of new energy lithium battery PACK modules.


The laser beam quality of this line equipment is excellent, the welding speed is fast, and the welding pool is beautiful and firm, providing an efficient, stable, and perfect welding solution for the lithium battery welding process.


Ⅱ、Equipment parameter index characteristics ：
1)--Weldable material thickness：0.5mm-2.0mm
2)--Effective travel range： (X-axis:870mm)×(Y-axis:600mm)×(Object workpiece height:400mm)
3)--Welding speed ：10mm/s（Adjustable）
4)--Laser type: continuous
5)--Laser power ：2KW（Adjustable）
6)--Laser working medium: fiber optic
7)--Laser lifespan：≥5 years
8)--Welding material: aluminum bar, copper sheet, nickel strip
9)--Welding can be done in two modes: continuous welding and pulse spot welding
10)--Weld penetration depth: The contact surface penetration depth is adjustable from 0.5-1mm

11)--Welding strength: The tensile strength of the solder joint is greater than the material's failure strength



Ⅲ、Equipment advantages and characteristics：
3.1 Maintenance-free operation
3.2 Support adjustable welding parameters such as motion speed
3.3 Support real-time fault alarm prompts
3.4 Support manual and automatic operation modes, support linear and circular interpolation
3.5 Can perform graphic welding processing on laser points, straight lines, circles, squares, and other planes composed of any shape
3.6 The welding field mirror adopts imported lenses, which can withstand high temperatures of laser power
3.7 The operating system is concise, easy to understand and learn, and the training is simple and easy to get started with
3.8 When welding, use the function of blowing air with an air knife to prevent smoke and welding slag from affecting the welding effect
3.9 The welded joint adopts water cooling circulation for local cooling to ensure the stability and consistency of welding quality
3.10 During welding, pneumatic pressure heads are used to press the connecting pieces and poles tightly to prevent poor adhesion and virtual welding phenomenon
3.11 Specialized welding software, welding process expert, data saving and calling function

3.12 High precision screw drive, high response, high speed, high-precision brand servo motor



Ⅳ、Environment condition：
4..1 Ambient temperature：5ºC-35 ºC
4.2 Humidity：20%-90%
4.3 Air Pressure ：0.5～0.6 Mpa
4.4 Supply voltage：380V-50Hz/60Hz
4.5 Total power：≤10KW
4.6 Area to weight ratio：≤500kg/M²

4.7 Grounding type：Directly grounded type

4.8 Installation environment：Smooth, vibration free and impact free


Ⅴ、The main components and configurations of the machine equipment：

Configuration Name

Item

Specification

Brand

Main machine

Cabinet body

TMAX-2000

TMAX



Linear module X-axis

Effective stroke greater than 850mm

TMAX



Linear module Y-axis

Effective stroke greater than 600mm

TMAX



Linear module Z-axis

Effective stroke greater than 400mm

TMAX



Host countertop

15mm Steel plate

TMAX



Air blowing cooling device for wind blade pressure head

/

TMAX

Laser

Fiber laser

C2000W

Chuangxin

Galvanometer

Laser galvanometer

YL2000

Light of Wisdom

Cooling system

Laser independent chiller

/

Donglu Yang

Drive system

XY axis servo motor

400W Without brakes

XINJE



Z-axis servo motor

400W With brakes

XINJE

Control system

Laser card

Multifunctional welding control software

TMAX

Display system

Liquid crystal display

15inch

Lenovo


Ⅵ、Laser parameters：

Average laser power（W）

2000W

Laser wavelength（nm）

1070

Operation module

Continuous/Modulation

Maximum modulation frequency（KHz）

Continuous

Laser mode

Yv04

Beam quality（M2）

＜0.373

Output connector

QBH

Power adjustable range（%）

(10-100)%

Fiber length（m）

10M

Input power supply

380V

Cooling method

Water-cooling

Control model

RS232

Working temperature ℃

10℃-30℃

Focal length F（mm）

200





Laser welder
