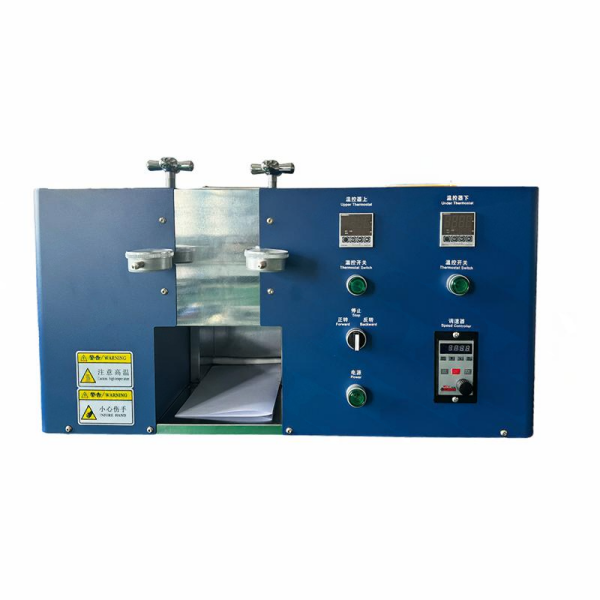

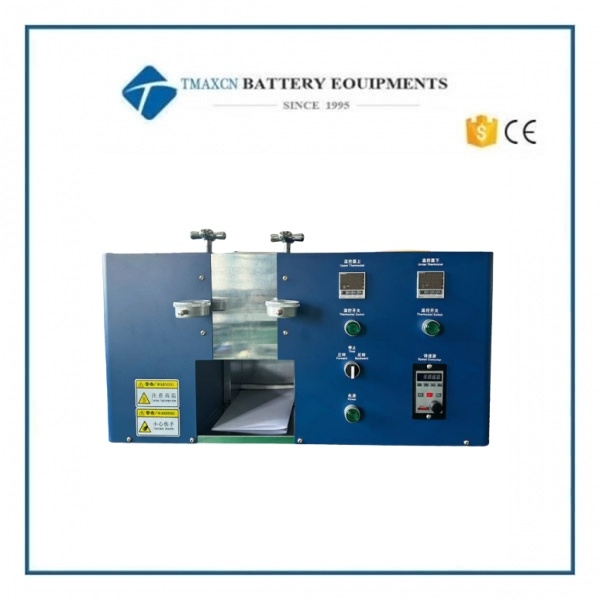

200℃ Internal Heating Electric Roller Press Horizontal Rolling Machine

200℃ Internal Heating Electric Roller Press Horizontal Rolling Machine

Application

The internal heating electric horizontal rolling machine is designed for laboratory-scale rolling of battery materials, small quantities of precious metals (gold, silver), and non-ferrous metals (copper, aluminum) under controlled heating conditions. It allows adjustable rolling thickness and simple operation, making it particularly suitable for thinning and increasing the density of lithium battery electrodes in clean energy applications.

Key Features

· Heated rolling system, with temperature control via a digital display.

· Selectable heating or non-heating operation for flexible processing.

· High-hardness rollers, with hard chrome plating for rust prevention, achieving HRC62 hardness.

· Inclined wedge gap adjustment system, ensuring self-locking stability and high adjustment accuracy.

· High rolling precision, with roller cylindricity ≤ ±2μm.

· Horizontal design, allowing easy feeding of sheet and strip materials.

· Gear-driven system, enabling precise rolling pressure.

· Adjustable pressing thickness and speed, with a sleek and modern design.

· Electric rolling system, supporting automated operation with forward and reverse rolling.

· Compact size, ensuring ease of use and operational flexibility.

Technical Specifications
