Optimal for material type:

medium-hard, soft, brittle, tough, moist

Item No.:

TMAX-FCS-01

Max. feed size:

10mm

Final fineness:

<100nm

Min. sample quantity:

10ml

Max. sample quantity:

450ml

Rotational speed (disk):

50-400r/min

Rotational speed (jars):

100-800r/min

Transmission ratio:

1:-2

Transmission standard:

CE

Grinding modes:

16 modes programmable

Grinding tools:

grinding jars and grinding balls

Bi-direction grinding:

yes

Continuously grinding

00:01:00 - 99:59:59

Paused interval:

00:01:00 - 99:59:59

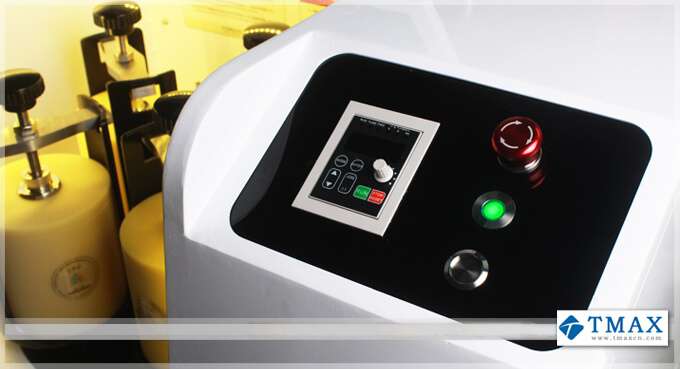

Emergency stop:

yes

Power off memory:

yes

Overload protection

Yes

Milling chamber lighting:

automatic LED lighting, 220V, 18W

Number of milling samples:

4 simultaneously

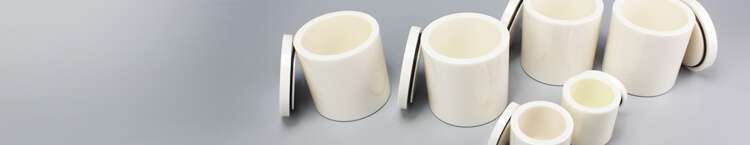

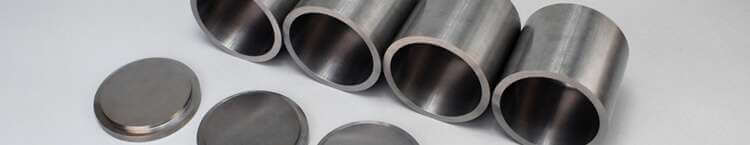

Materials of the grinding jars:

SS304, SS316, nylon, PTFE, agate, zirconia, alumina, PU, WC

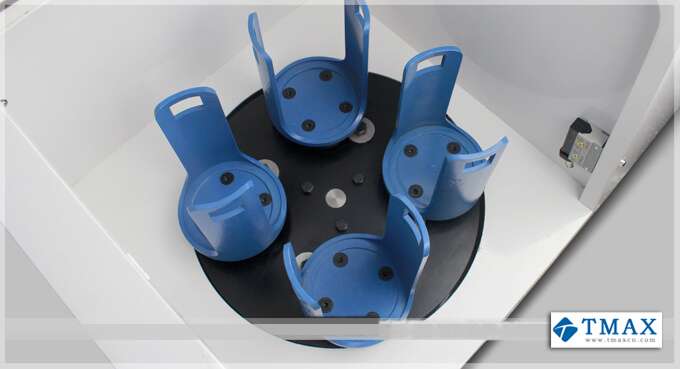

Number of working stations:

4

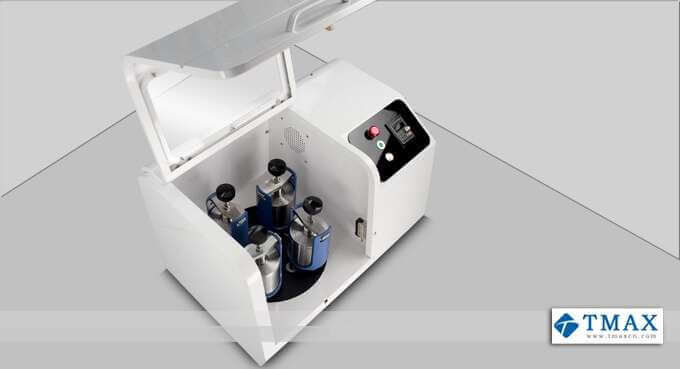

Ball mill type:

vertical

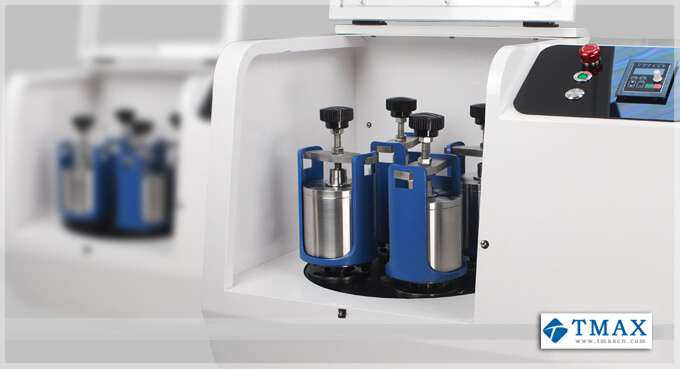

Compatible grinding jars:

100ml / 250ml

Materials of milling balls:

SS, agate, zirconia, alumina, nylon, PTFE

Grinding ball diameter:

3/5/10/15/20mm

Compatibal ball weight

100-500g

Grinding process:

dry /wet grinding

Vacuum grinding:

yes

Low temperature grinding:

yes

Grinding in inert gas:

yes

Temperature detection:

yes ( special accessories)

Pressure detection:

yes ( special accessories)

Electrical details:

100-120V/200-240V AC ,50-60Hz, 750W

Plug types:

GB/EU/US/UK standard

Net weight:

92kg

Dimensions (W x D x H):

720*480*500mm

Noise level:

60dB

IP rank:

IP60

Product standard:

CE

Patent:

design patent/ noise improve patent

Accessories:

LED lighting, user manual, warranty card

Material

Main component

Density (g/cm³)

Abrasion resistance

Use for material to be ground

Agate

SiO₂

2.65

Good

Soft to medium-hard samples

Sintered corundum

Al₂O₃

3.8

Fairly good

Medium-hard, fibrous samples

Silicon nitride

Si₃N₄

3.25

Excellent

Abrasive samples, iron-free milling

Zirconium oxide

ZrO₂

5.7

Very good

Fibrous, abrasive samples
