18650 26650 21700 32650 Insulating Paper Barley Paper Fish Paper

18650 26650 21700 32650 Lithium Cylindrical Battery Barley Insulation Paper

Model Number:
TMAX-BP001
Compliance:
CE Certified
Warranty:
One year limited with life time support
Place of Origin:
China
Shipping Port:
Xiamen
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Previous:
32650 Battery Insulator Battery Positive Insulation Washer

Product Details

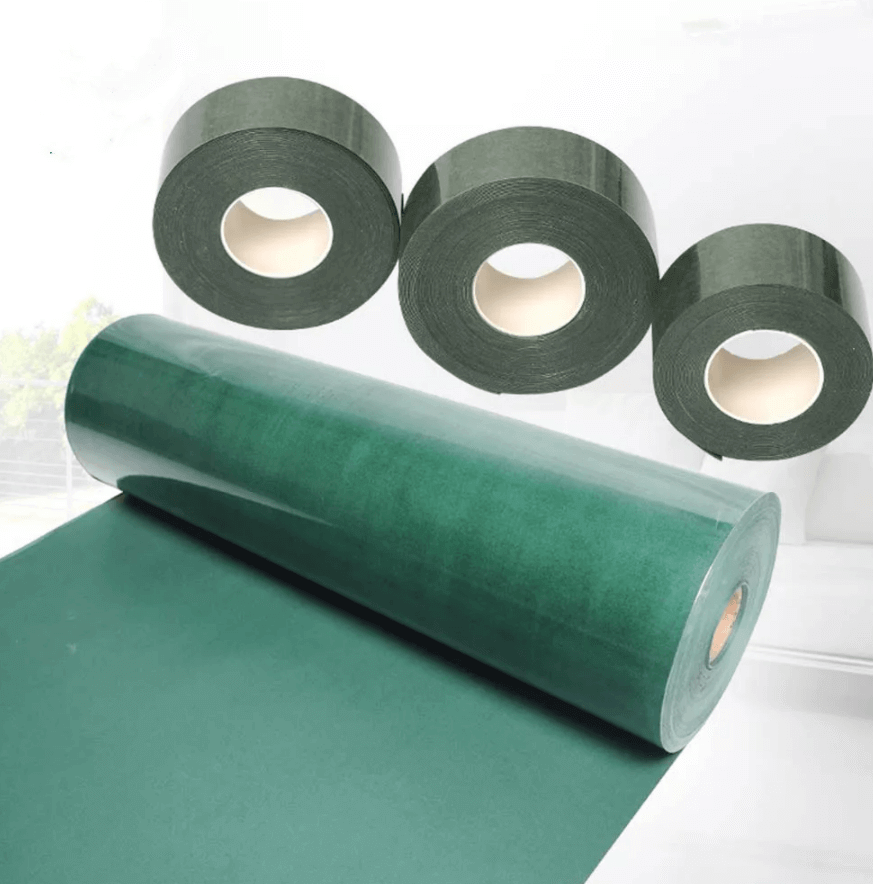

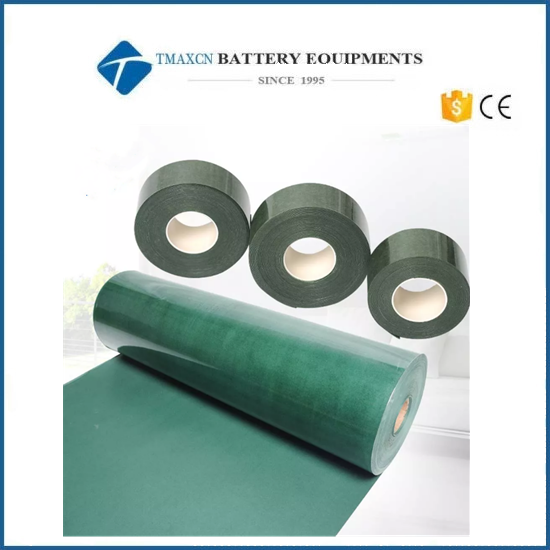

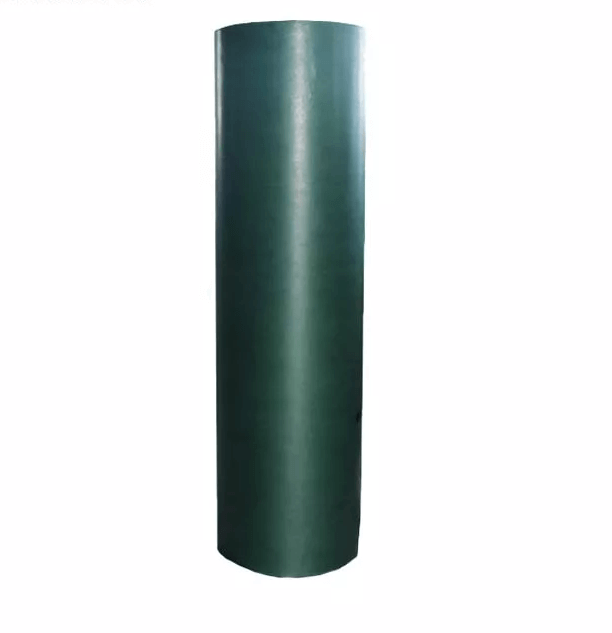

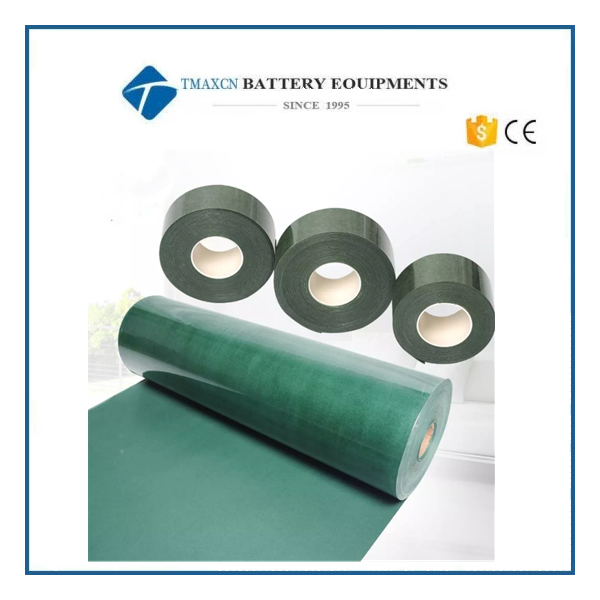

18650 26650 21700 32650 Lithium Cylindrical Battery Barley Insulation Paper

Introduction:

It is made of wood fiber by certain process.

With good mechanical strength, high electrical strength, product surface smooth, full of toughness

Widely used in electrical machines, electrical appliances, instruments and other equipment as insulation materials.

Product Advantage & Application:

* Good insulation, water and abrasion resistance, grease resistance, aging resistance, good gap blocking material

* The surface of barley paper is flat and smooth, full of toughness,with good dielectric properties and high mechanical strengt.

barley insulating paper

Product Description:

Product name	High Quality Insulator Fish Paper Hollow Lithium cylindrical Battery Insulation Paper Highland Barley Paper
Material	Polyester film and thin electrical insulating paper
Color	Green
Size	custom paper barley spacer ring ,sheet or rolls
Breakdown voltage	> 5 KV
Thickness（mm）	0.1-0.5mm
Temperature resistance	High Temperature Resistance 130℃

Color	green	Sample	Freely Supplied
Material	Wood fiber	MOQ	100pcs

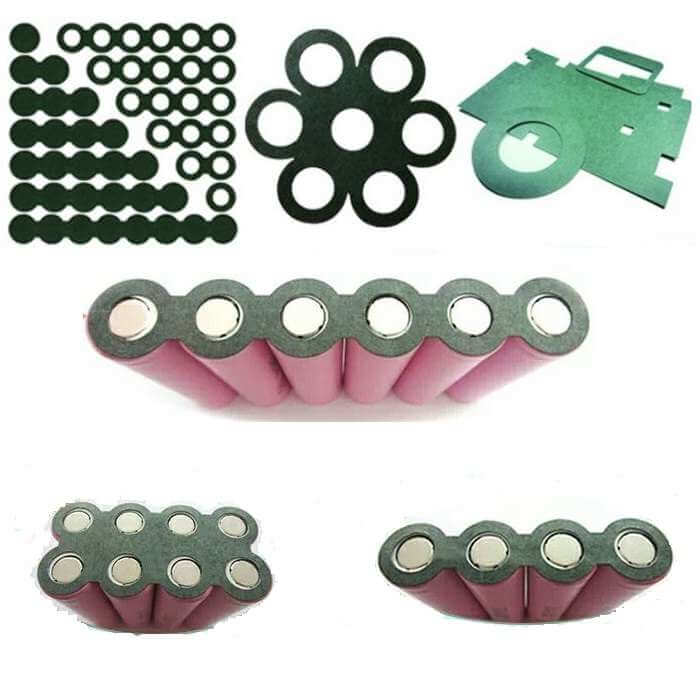

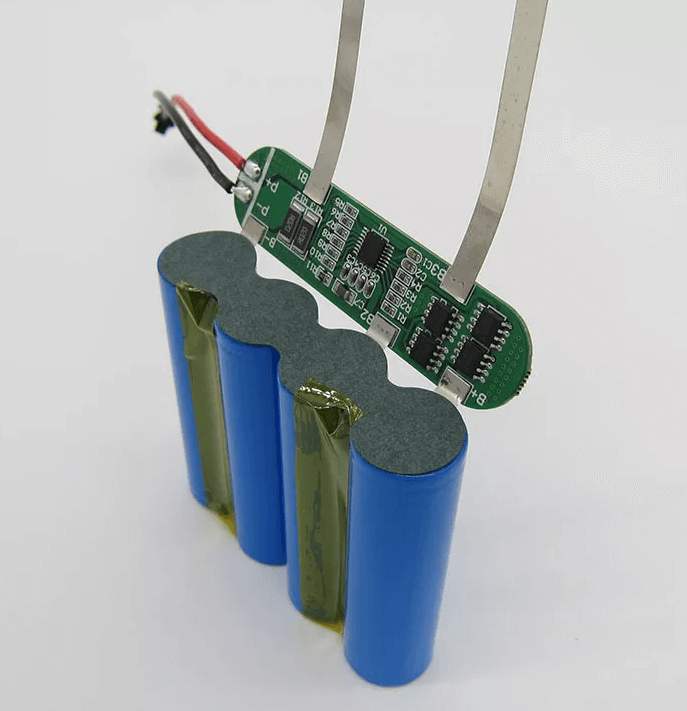

Usage	Insulation Protection、Electrice Power、Slot Insulation、18650 battery、coils、Liner Insulation	Flame retardant	94V-0
Thickness	Customer Demands	Temperature resistance	130（℃）
Size	Customized Size	Processing Type	Die cutting

Project		unit	numerical
Nominal thickness		mm	0.15	0.18	0.2	0.25	0.3	0.5
Thickness deviation		mm	±0.02	±0.02	±0.03	±0.03	±0.03	±0.03
Density		g/m²	155	180	210	255	300	600
Film nominal thickness		um	25	25	25	25	25	25
tensile strength	MD	N/10mm	≥100	≥110	≥120	≥120	≥150	≥150
	TD	N/10mm	≥70	≥75	≥80	≥95	≥105	≥105
elongation	MD	%	≥2	≥2	≥2	≥2	≥2	≥2
	TD	%	≥8	≥8	≥8	≥8	≥8	≥8
breakdown voltage		KV	≥2	≥3	≥4	≥5	≥5.5	≥6
