VACUUM PUMP MOBILE CART ONLY AVAILABLE IF YOU PURCHASE A PUMP AND A DIGITAL VACUUM CONTROLLER.

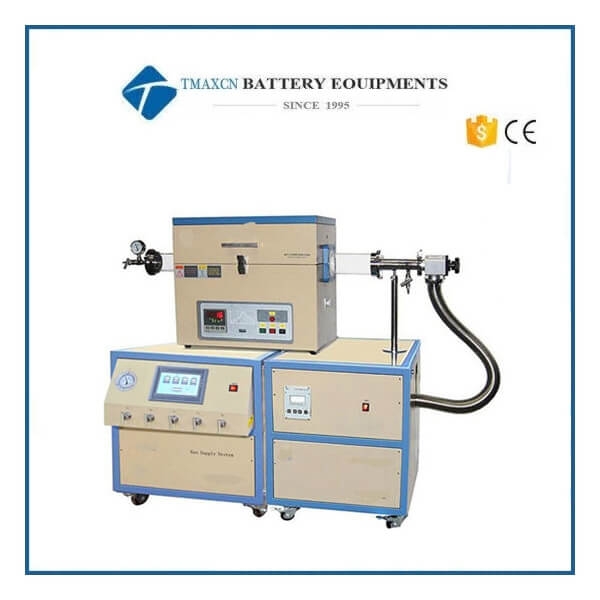

TMAX-1700PECVD Chemical Vapor Deposition (CVD) tube furnaces feature a chamber with Mitsubishi^® (Japan) alumina fiber insulation and molybdenum silicide heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden® (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results. All our furnaces are CE compliant.

Features

1        Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

2        Dual flanges support ensures better sealing and longer tube life.

3        Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

4        Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

5        Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

6         Built-in computer interface.

Safety

·        Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

·        Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

Specifications

Standard Package
