160 Clamps Vacuum Electrolyte Filling Machine For Li-ion Battery Electrolyte Injection
Model Number:
TMAX-JK-ZYJ-02Type:
Electrolyte Filling MachineInput Power:
1500WCompliance:
CE CertifiedWarranty:
Two years limited with lifetime supportDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Vacuum Filling Equipment Used For Lithium Battery And Super Capacitor Electrolyte Auto Vacuuming FilingNext:
Battery Vacuum Filling Machine For 18650 Cell Electrolyte Filling

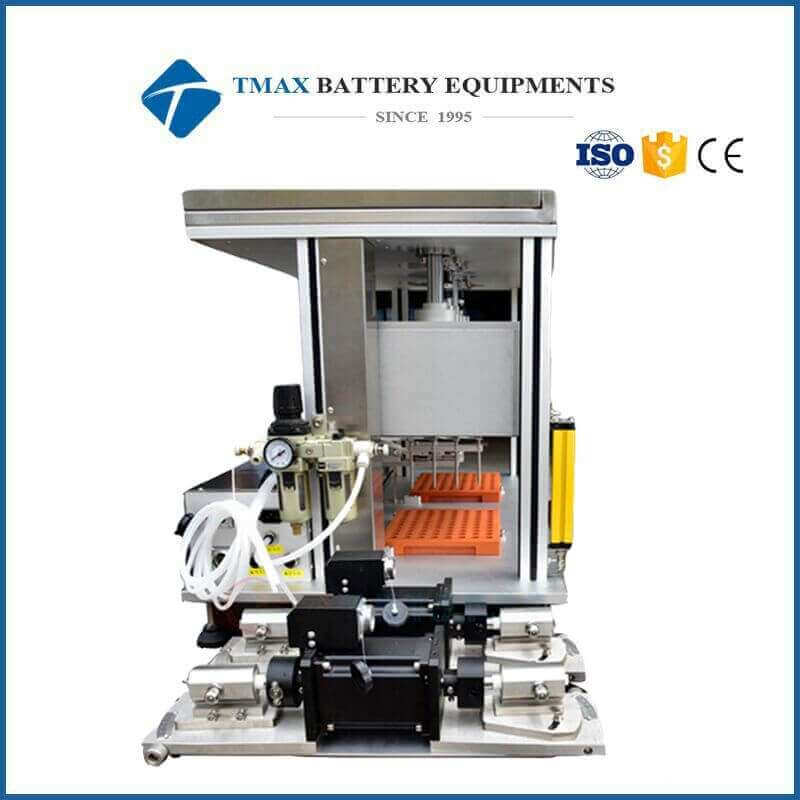

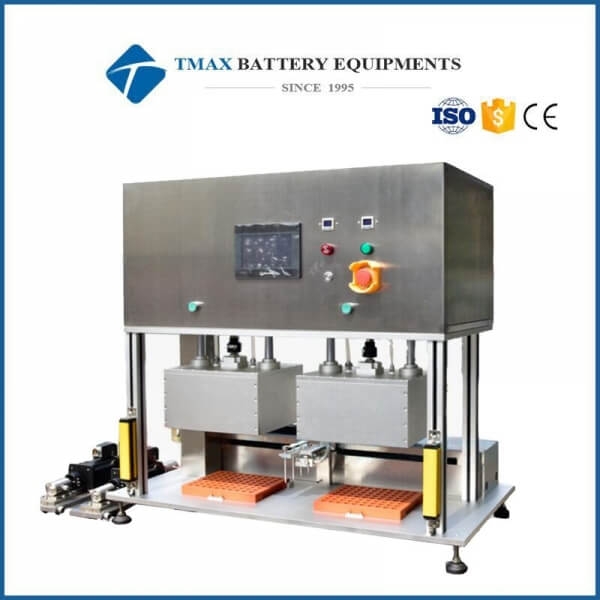

160 Clamps Vacuum Electrolyte Filling Machine For Li-ion Battery Electrolyte Injection
1 TMAX-JK-ZYJ-02
Vacuum linear filling machine is used for lithium battery electrolyte injection
with high precision and simple operation.
2 This vacuum filling machine can be used for various cylindrical cell cases including CR123,18650 26650, 32650 and AA with changing clamps.
SPECIFICATIONS:
Model |
Vacuum Filling Machine TMAX-JK-ZYJ-02 |
Source voltage |
110V-220V AC, 50/60Hz Single Phase |
Power |
1500W |
Warranty |
One year limited and lifetime support |
Suitable battery model |
18650 / 26650 / 32650, For all kinds of cylindrical
battery |
Advantages |
1 Customized die for all kinds of cylindrical cell
types is available according to request 2 Adopt PLC and man-machine interface centralized
control, easy operation. 3 Filling speed and times can be set 4 All the parameters such as vacuum time, air input
time, filling quantity and battery distance can be adjusted
freely. 5 Vacuum box for static control independently |
Vacuum filling accuracy |
±0.02g |
Vacuum filing time |
1-10times adjustable |
Vacuum filling quantity |
0-7g |
Vacuum degree |
-0.1Mpa |
Air supply |
0.3-0.6MPa |
Working clamps |
18650 clamps battery tray 10 rows 8 columns (It can be customized) |
