15V6A Battery Pack Test System For Laptop Battery Pack Performance Testing
Model Number:
TMAX-BTS-15V6AInput Power:
1088WDimension(L*W*H):
485*508*263mmCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
20V10A Battery pack tester analyzer with 8 ChannelNext:
15V6A 8 Channel Universal Laptop Battery Pack Tester Equipment

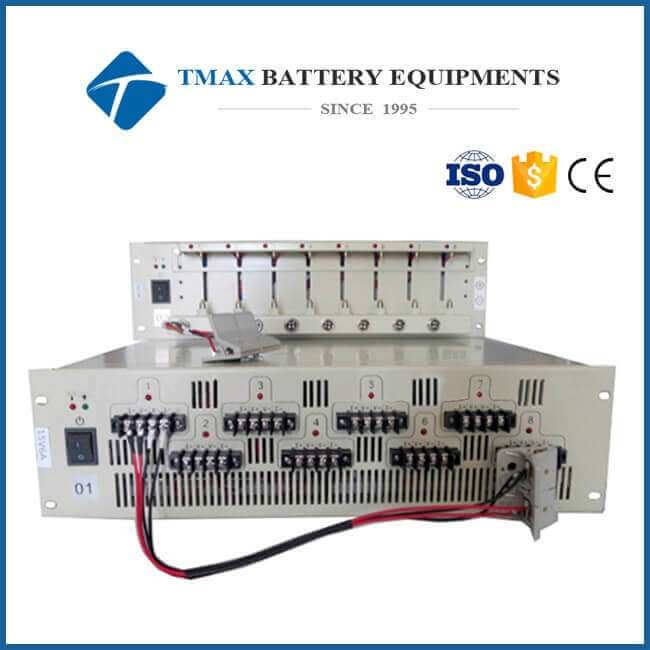

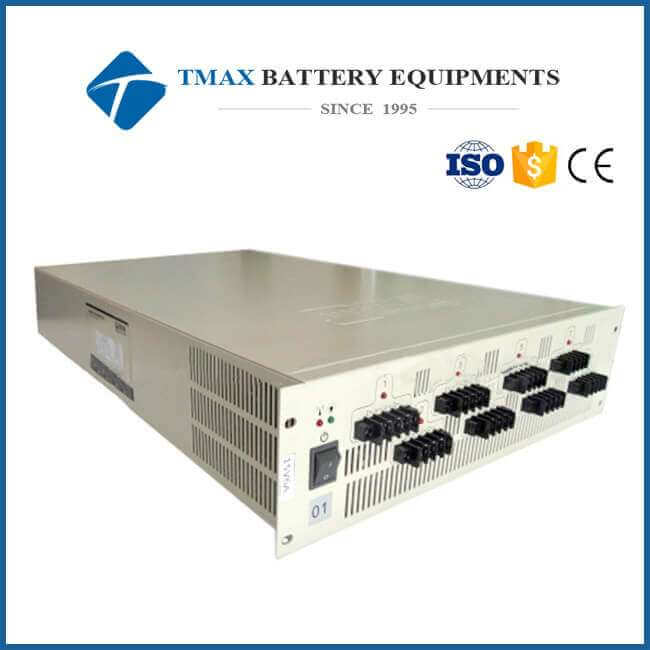

15V6A Battery Pack Test System For Laptop Battery Pack Performance Testing
SPECIFICATIONS
1 TMAX-BTS-15V6A Battery
tester equipment is an eight-channel battery analyzer to analyze polymer
battery and cylindrical batteries from 12 mA to 6000 mA, up to 15V.
2 This
battery test system provides most applications in battery testing fields such
as electrode materials research, battery performance test, small-scale battery
formation, capability grading, battery pack testing and etc.
3 This
battery pack test system is mainly used for laptop battery pack performance
testing.
Model |
Battery pack tester TMAX-BTS-15V6A |
|
Warranty |
One Year limited warranty with lifetime support |
|
Source voltage |
AC110V-220V±10% Customized, 50/60HZ |
|
Input impedance |
≥1mΩ |
|
Input power |
1088W |
|
Channel characteristics |
Constant current source and voltage source adopt double closed loop independent structure |
|
Channel control mode |
Independent control |
|
Voltage range per channel |
Charge : 3mV-15V Discharge : 2.5V-15V Accuracy : ±0.1% |
|
Current range per channel |
Charge : 12mA-6A Discharge : 12mA-6A Accuracy : ±0.1% |
|
Output power per channel |
200W |
|
Time |
Current response time |
0-6A : 20ms |
Step time range |
1s-365*24h,Time format : 00:00:00(H:Min:S) |
|
Record condition |
TimeΔt :1-60000s VoltageΔU : 40mV-20V CurrentΔI : 20mA-10A |
|
Charging mode |
Constant current charge,constant voltage charge, constant current and voltage charge |
|
Discharging mode |
Constant current discharge,constant power discharge |
|
Conditions of constraint |
Time, voltage, current, capacity |
|
Cycle |
Cycle range |
1-65535 times |
Steps pur cycle |
254 |
|
Protection |
Power-down data protection,off-line test function and Safety condition setting protection |
|
Voice |
≤85dB |
|
Communication interface |
Serial ports |
|
Channel number per unit |
8 |
|
Dimension(L*W*H) |
485*508*263mm |
