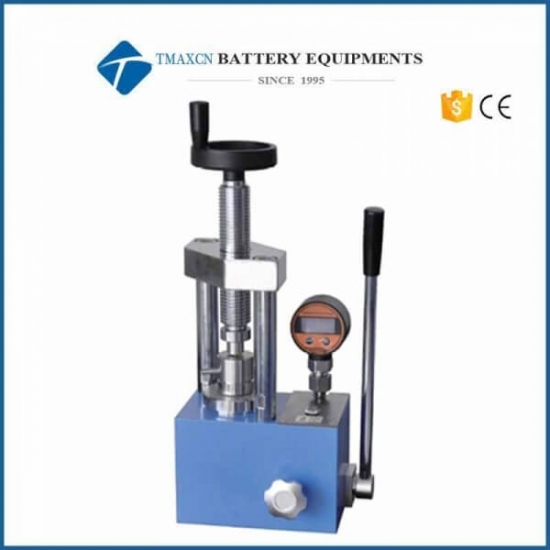

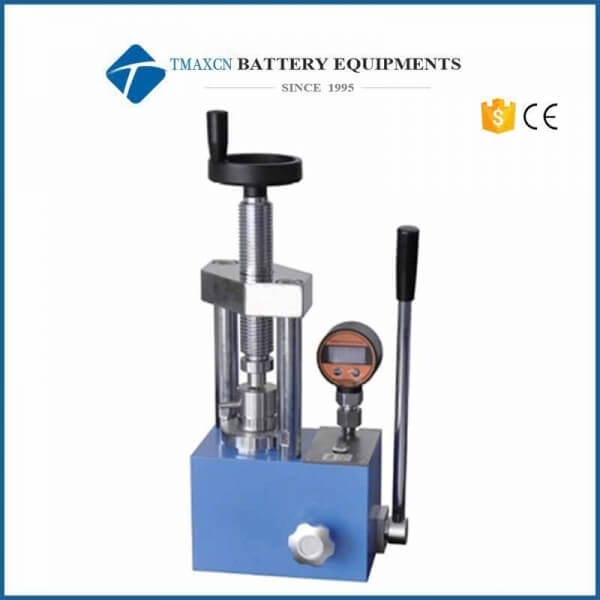

15T Desktop Manual Hydraulic Pellet Press for Powder Pressing
Model Number:
TMAX-15TNet Weight:
About 38kgCompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
100T Laboratory Automatic Programmable Control Powder Press MachineNext:
20T Laboratory Automatic Small Hydraulic Press Machine with Programmable Controller
15T Manual Hydraulic Pellet Press for Powder Pressing
Technical Parameters
Product Name |
Lab Pressing Machine |
Type |
TMAX-M15T |
Pressure range |
0-15T(0-30MPa) |
Pointer pressure gauge |
Pointer type, double scale display of pressure(Ton) and intensity of pressure(Mpa)→Default in the standard package |
Digital gauge |
Digital display, 0.00-40.00 MPa, accuracy 0.01 MPa (Optional) |
Piston diameter |
Chrome plated cylinder 80 mm |
Overall structure |
Integrative structure patented technology, no sealed connection of equipment, reduce oil leakage point |
Maximum piston stroke |
30mm(T) |
Pressure stability |
≤1MPA/10Min |
Number of columns |
2 pillars |
Working space |
140×150mm |
over dimension |
245×175×390mm |
Weight |
38kg |

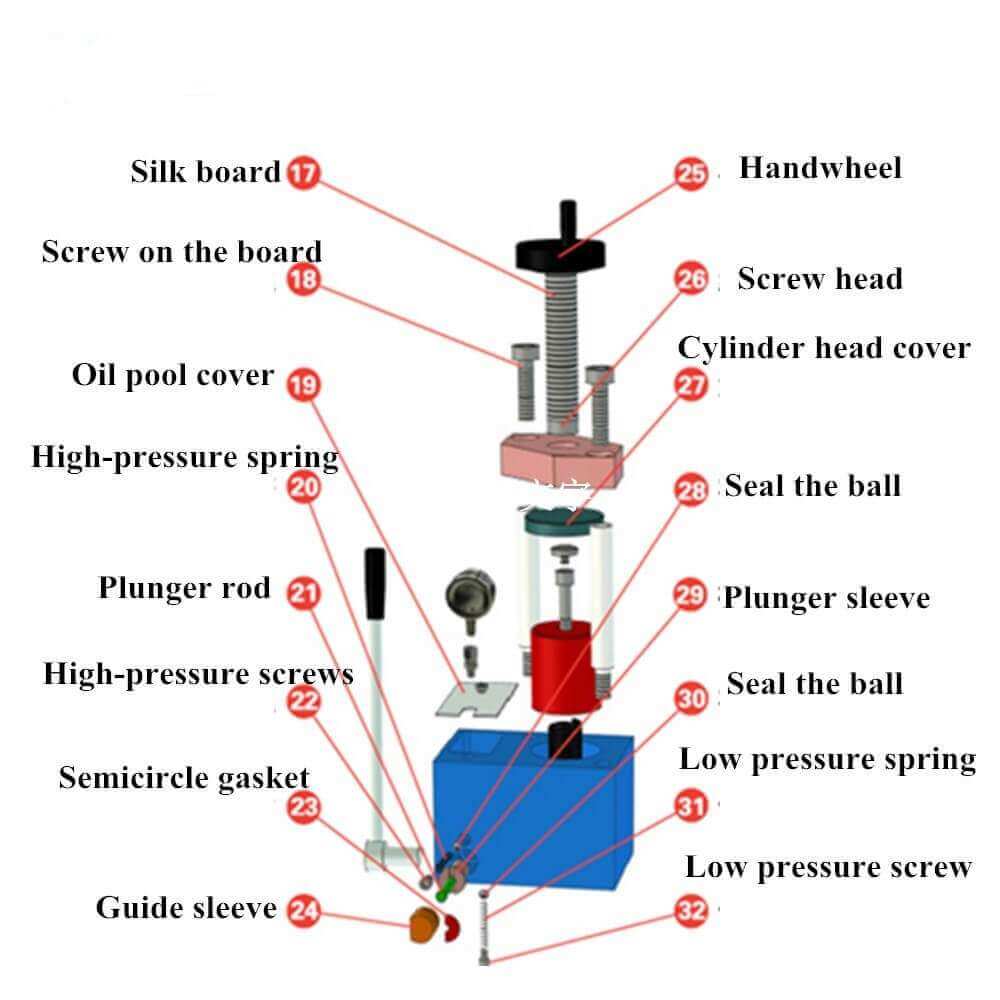

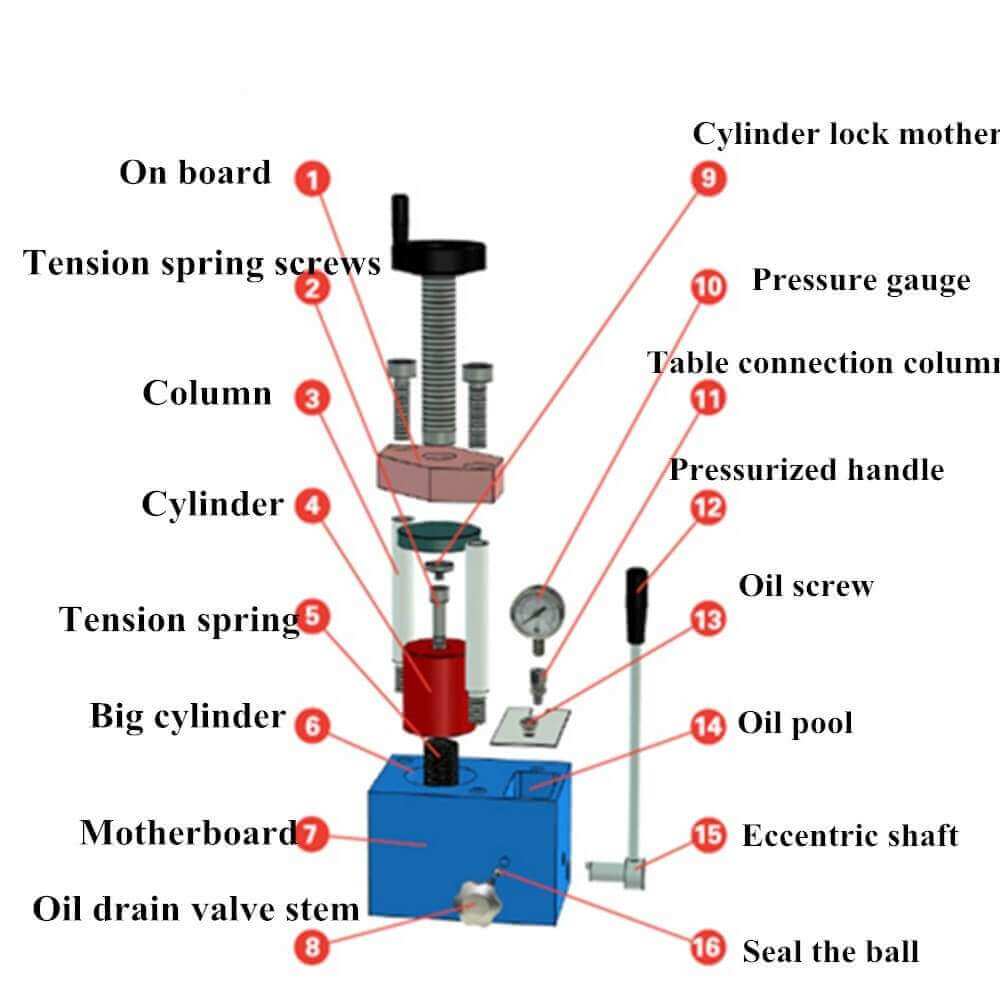

Sheet breakdown structure diagram

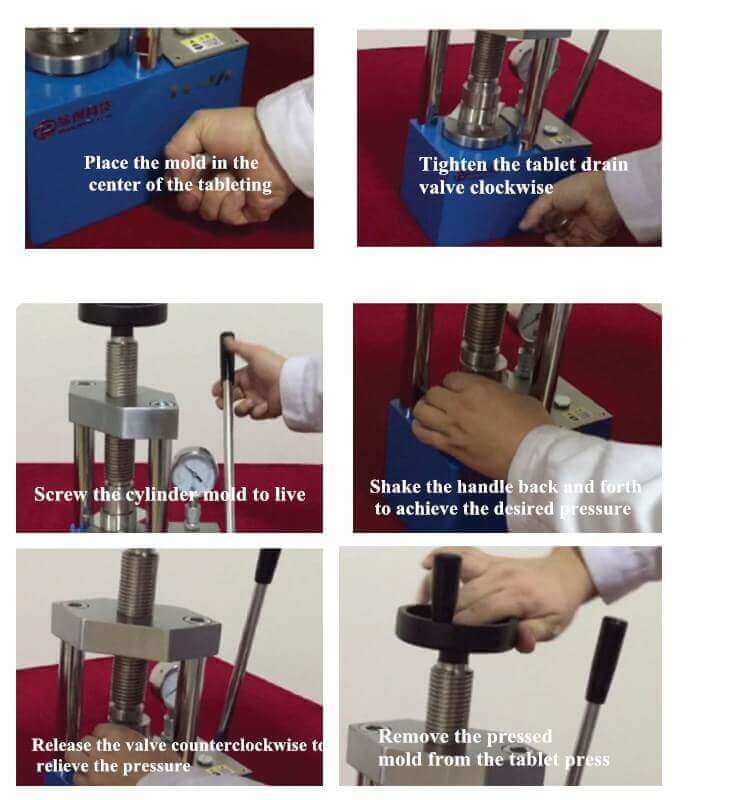

Operation

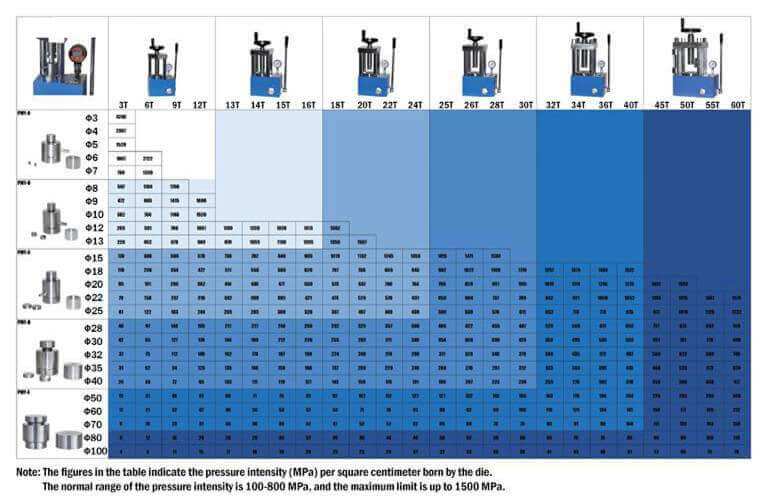

Conversion
ctual pressure |
System pressure |

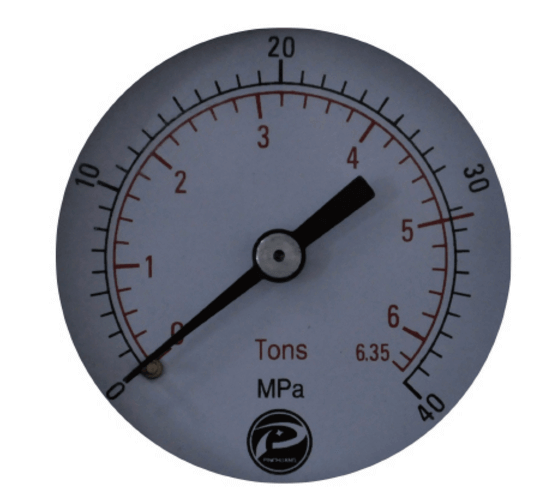

Double display pressure gauge |
1[Tons] |
0.75[MPa] |
|
3[Tons] |
2.2[MPa] |
|
5[Tons] |
3.7[MPa] |
|
10[Tons] |
7.5[MPa] |
|
12[Tons] |
9[MPa] |
|
15Tons] |
11.3[MPa] |
|
20[Tons] |
15[MPa] |
|
30[Tons] |
22.5[MPa] |
|
40[Tons] |
30[MPa] |
It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.
