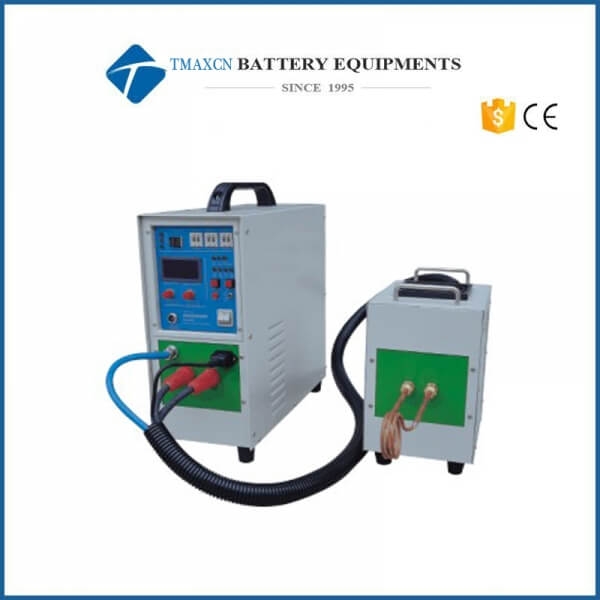

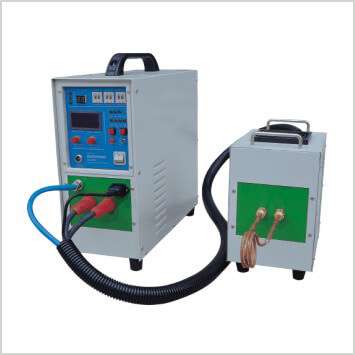

15KW Automatic Control System

Main USES:

Diamond saw blade, lathe tool welding, stainless steel tube annealing, precious metal melting, hammer quenching, part heat treatment

Main features:

1.     Using IGBT power module and my company's first-generation converter control technology,

2.     The equipment is simple, light and easy to maintain;

3.     Simple operation, can learn in a few minutes;

4.     4.installation is simple, need only electricity and water can be used, need not special person installation;

5.     The automatic control type can adjust the power and time of heating and thermal insulation process, improve the repeatability of heating quality and simplify the operation of workers;

6.     The split type is mainly used for the dirty, high temperature and corrosive conditions of the working environment.

Technical parameters:

1. Maximum oscillation power: 15KVA

2. Oscillation frequency: 30-80khz

3. Heating current: 200-600a

4. Input voltage: three-phase 380V, 50 or 60HZ

Cooling water requirement: 0.2 Mpa, 2 ~ 5 L/min

6. Load duration: 80%

7. Heating time, heat preservation time, cooling time: 1 -- 99 seconds

8. Split main - extension cable length: 2 m

9. Host volume (CM) and weight: l52xw20xh48   14kg

10. Extension volume (CM) and weight: L31XW19XH33    11KG
