150T Electric Powder Tablet Press with Optional Die Sizes
Model Number:
TMAX-DYP-150TFZCompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
200T Electric Hydraulic Press Machine with Optional Die SizesNext:
100T Automatic Isostatic Pressing Machine with 300MPa Isostatic Pressure
Product Details

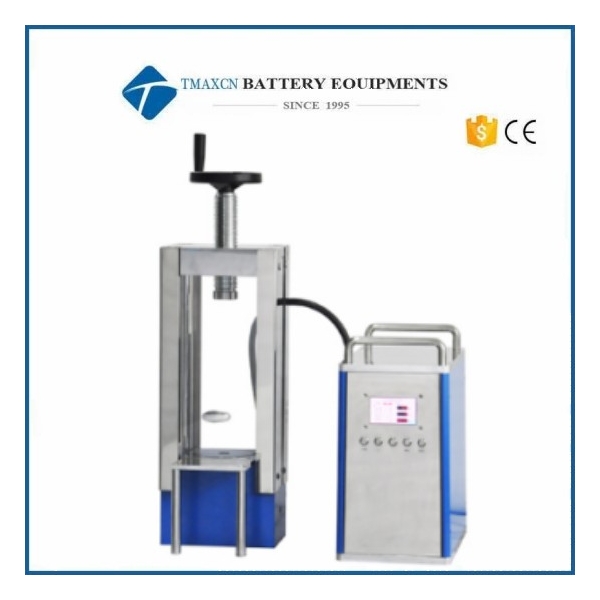

150T Electric Powder Tablet Press with Optional Die Sizes
A. Parameter
Model |
DYP-150TFZ |
Pressure range |
0-150T |
Piston diameter |
Chrome cylinder diameter 250mm(d) |
Pressurization process |
Program pressurization - program pressure maintenance - timed pressure relief |
Compress time |
0-999.59 minutes |
Pressure conversion |
The program automatically converts the pressure on the sample |
LCD |
4.3 inch LCD screen |
Equipment protection |
Steel protectionwith plexiglass door |
Cylinder stroke |
50mm (T) |
Space size |
285*290mm(M*N) can be equipped with heightened column |
Dimensions |
950*600*1000(L*W*H) |
Device power |
220V(50Hz/60Hz) |
Equipment weight |
620kg |

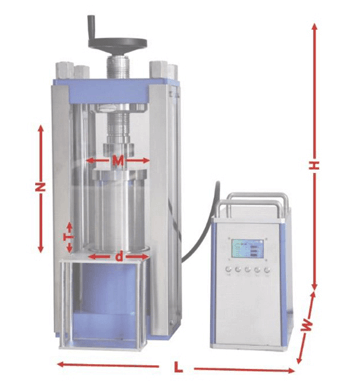

Tablet press size diagram |
|
B. Operation
