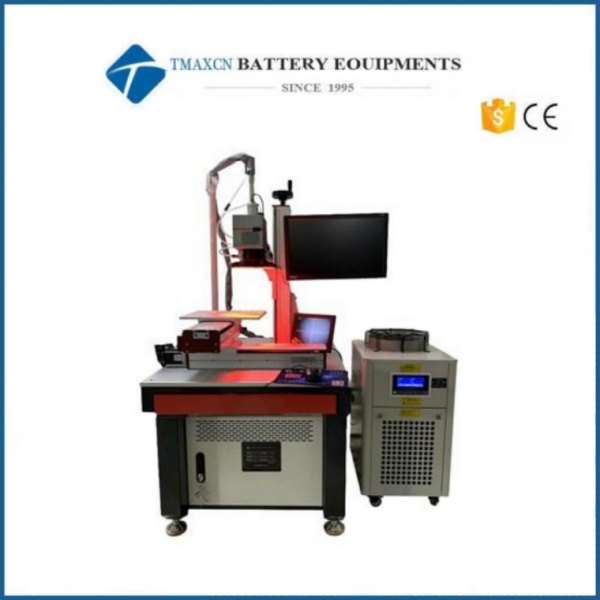

1500W Optical Fiber Laser Galvanometer Welding Machine
Model Number:
TMAX-HY-C1500WInput Power:
1500WDimension(L*W*H):
0.8*0.9*0.7mNet Weight:
360kgCompliance:
CE CertifiedWarranty:
One year limited warranty and lifetime supportPlace of Origin:
ChinaPayment:
L/C D/A D/P T/T Western Union
- WhatsApp : +86 13174506016
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588

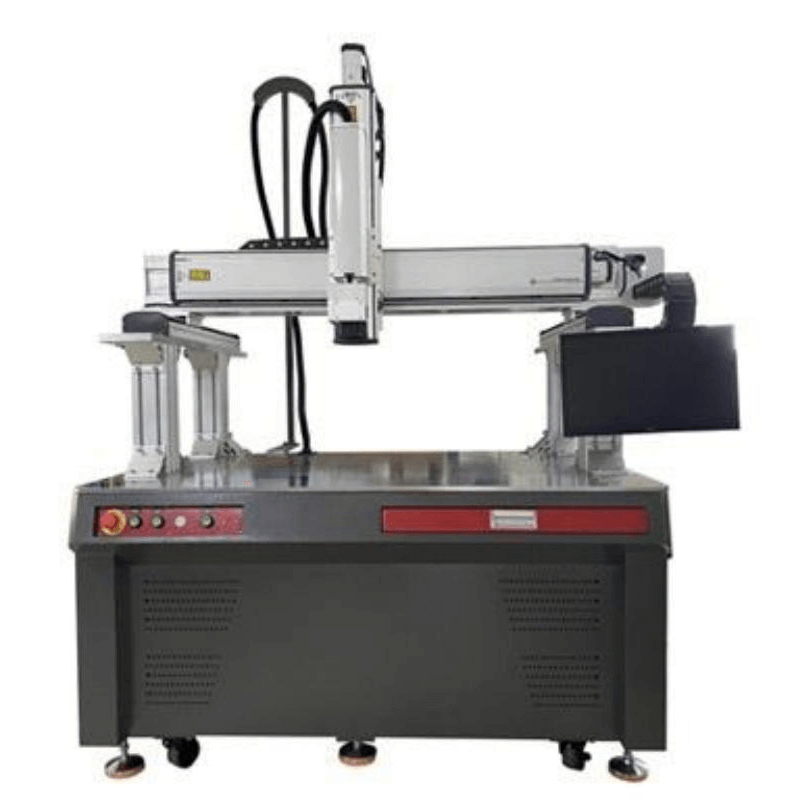

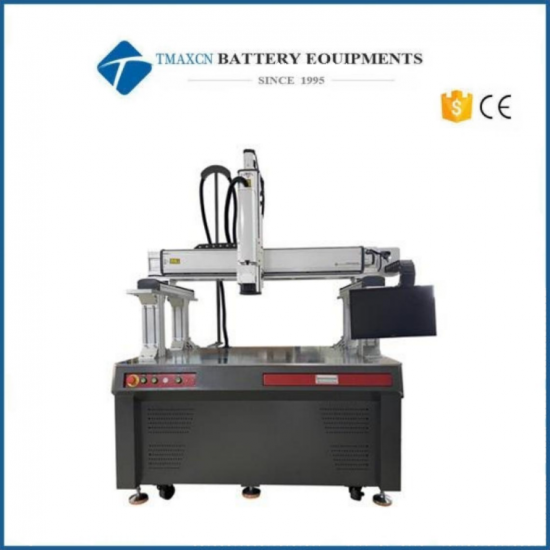

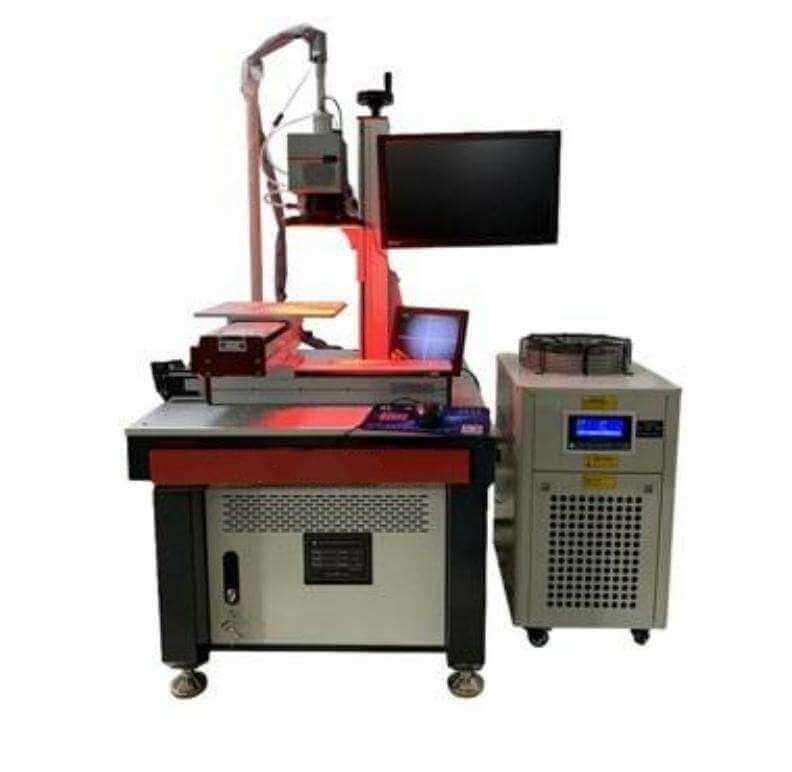

1500W Optical Fiber Laser Galvanometer Welding Machine
After a series of processing, the laser emitted by the laser generator highly concentrates the energy in a very small range after focusing by the lens. If the processed material absorbs the laser better, the material in the irradiated area will rise rapidly because it absorbs the laser energy. According to different material properties(such as melting point, boiling point and temperature of chemical change), the workpiece will undergo a series of physical or chemical changes, such as melting, gasification, oxide formation, discoloration and so on.
Optical fiber series welding machine configuration:
Configuration and model |
TMAX-HY-C1500W |
Remark |
Laser system |
RAYCUS –C1500W |
Wuhan Ruike |
Transmission mechanism |
10m optical fiber |
Wuhan Ruike |
Welding head |
Optical fiber galvanometer welding head |
TMAX |
Control mode |
IPC computer, special galvanometer welding software |
TMAX |
Positioning method |
Semiconductor red light, CCD monitoring and positioning |
TMAX |
Kinematic mechanism |
Gantry type X/Y/Z (left and right, front and rear, upper and lower) axis motor guide rail (900mm * 600mm * 300mm) |
TMAX |
Gas protection |
Synchronous argon or nitrogen protection |
TMAX |
Refrigeration system |
1P Integrated thermostat internal circulating cooling water |
TMAX |
Cabinet |
Main machine:1580*900*1600mm、 Water tank: 530*450*700mm |
TMAX |
Specification:
Model |
TAMX-HY-C1500W |
Maximum laser power |
1500W |
Output center wavelength |
1070±10 |
Welding method |
Continuous, spot welding |
Laser weld |
0.2-5mm |
Maximum welding depth |
3mm(stainless steel) |
Fiber length |
10m |
Main machine size |
0.8*0.9*0.7m |
Working voltage |
220V/32A |
Working temperature |
5-35℃ |
Weight |
360KG |
Consumables: no consumables, the service life of fiber laser is about 100000 hours.

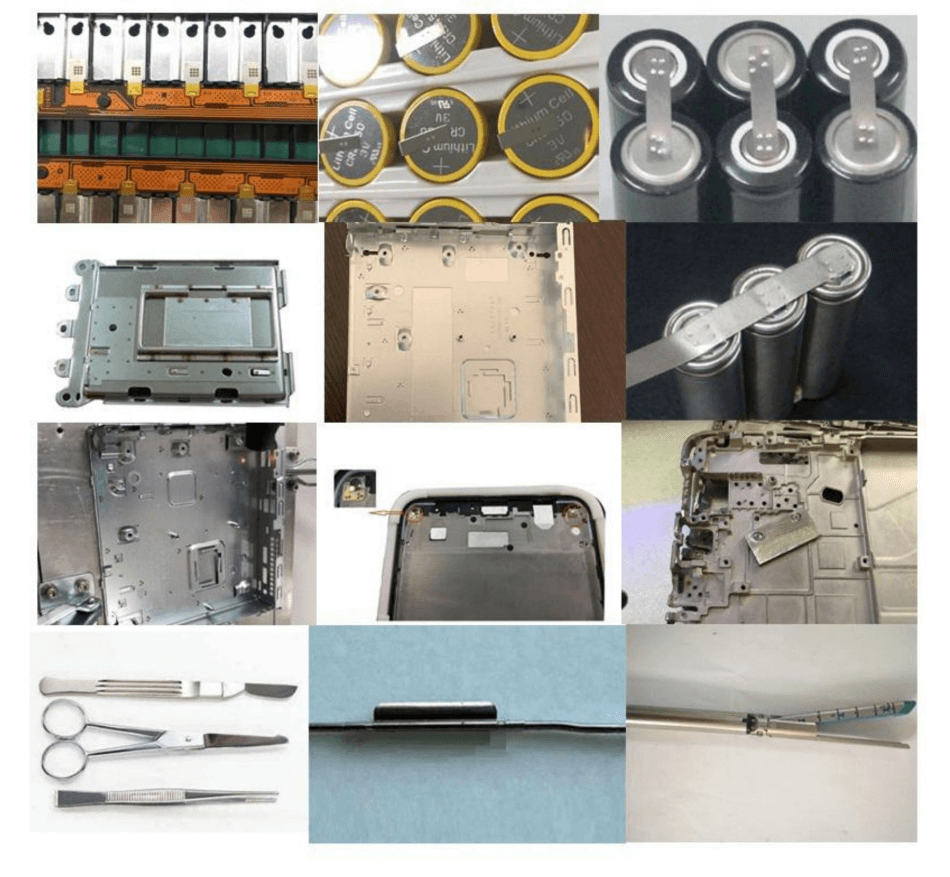

Sample Display:
